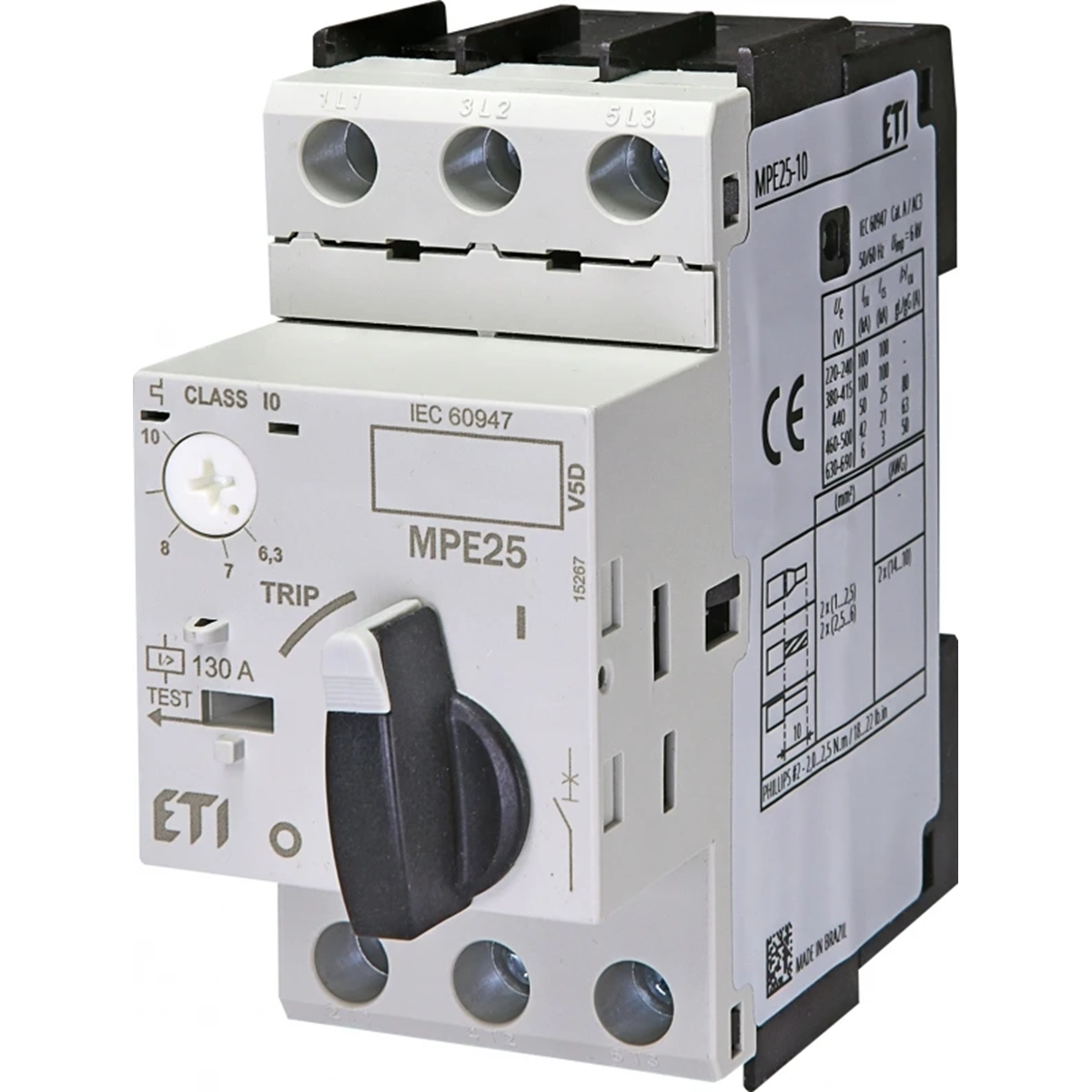

MPE25-10 motor circuit breaker 004648010

local index:
ASN032ETIP
Catalog No:
004648010
EAN code:
7890355188330
Manufacturer: ETI POLAM
Frequency [Hz]: 50/60 Hz
Terminal capacity: 1x(0.5 to 2.5mm2) or 2x(0.5 to 2.5mm2)
Trip pick-up current [A]: 120
Price:
50,91 €
gross / pcs.
(including VAT 23%)
158,11 € gross/kg.
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - MPE25 motor circuit breakers are used to start electric motors and protect them against overload, short circuit and part-phase operation. They can be used as a main or emergency switch. Starting systems can be built in combination with CE or CEM type contactors and mounting adapters.

Technical data

  • Frequency [Hz]
    50/60 Hz
  • Trip pick-up current [A]
    120
  • Working temperature [°C]
    non-built-in device -20/+70 built-in device -20/+35
  • Ie range [A]
    6:3-10
  • Rated impulse voltage [kV]
    6
  • Terminal capacity
    1x(0.5 to 2.5mm2) or 2x(0.5 to 2.5mm2)
  • Level of security
    IP20
  • Weight [g]
    322
  • Range of application (m.a.s.l.)
    & ≤ 2000m
  • PKWIU
    27.12.22.0

Other technical data

  • Overload release current setting
    6.3 ... 10.0 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    400 ... 690 V
  • Rated operation power at AC-3, 400 V
    4 kW
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
  • Adjustment range undelayed short-circuit release
    130 ... 130 A
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    10 A
  • Type of electrical connection of main circuit
    Frame clamp
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
