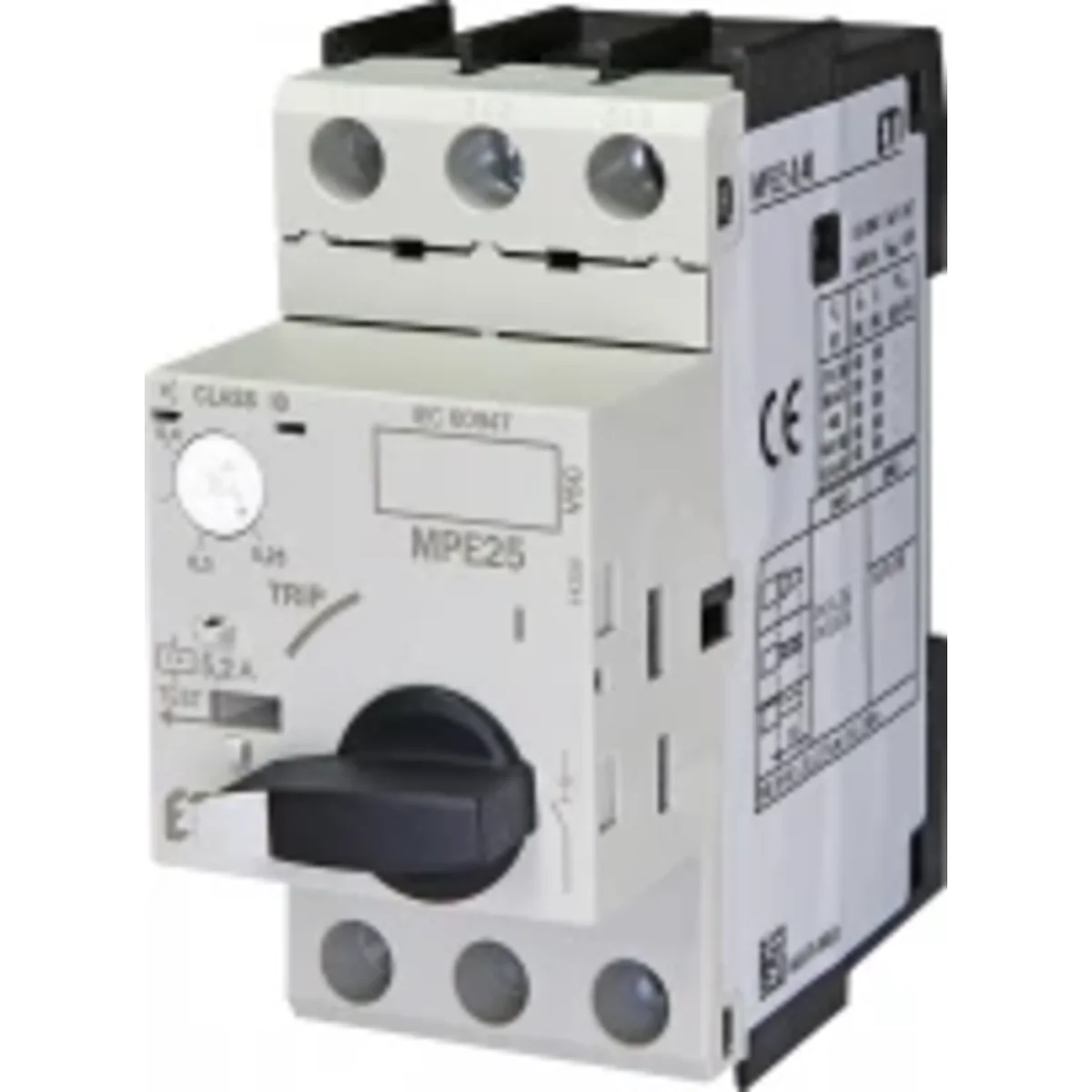

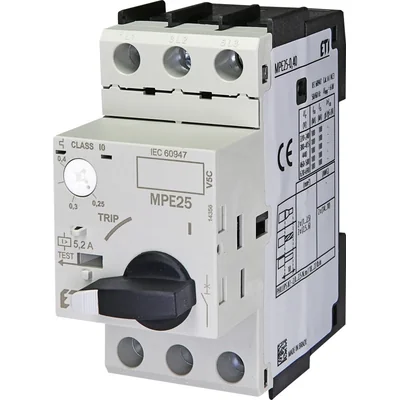

MPE25-0.40 motor circuit breaker 004648003
Lokaler Index:
ASN020ETIP
Katalognummer:
004648003
EAN-Code:
7890355188262
Hersteller:
ETI POLAM
Frequency [Hz]: 50/60 Hz
Terminal capacity: 1x(0.5 to 2.5mm2) or 2x(0.5 to 2.5mm2)
Trip pick-up current [A]: 4.8
Preis:
197,34 zł
gross / stk.
(inklusive MwSt 23%)
612,86 zł gross/kg.
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Application - MPE25 motor circuit breakers are used to start electric motors and protect them against overload, short circuit and part-phase operation. They can be used as a main or emergency switch. Starting systems can be built in conjunction with CE or CEM type contactors and mounting adapters.
Technische Daten
-
Frequency [Hz]50/60 Hz
-
Trip pick-up current [A]4.8
-
Working temperature [°C]non-built-in device -20/+70 built-in device -20/+35
-
Ie range [A]0.25-0.4
-
Rated impulse voltage [kV]6
-
Terminal capacity1x(0.5 to 2.5mm2) or 2x(0.5 to 2.5mm2)
-
Level of securityIP20
-
Weight [g]322
-
Range of application (m.a.s.l.)2000m
-
PKWIU27.12.22.0
Weitere technische Daten
-
Overload release current setting0.25 ... 0.4 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu0.4 A
-
Type of electrical connection of main circuitFrame clamp
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Adjustment range undelayed short-circuit release5.2 ... 5.2 A
-
Phase failure sensitiveYes
-
Rated operating voltage400 ... 690 V
-
Rated operation power at AC-3, 400 V0.09 kW
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC100 kA
Hersteller-Details
-
HerstellerETI Polam Sp. z o.o.
-
Adresse06-100 Pułtusk Jana Pawła II 18 Polska
-
