Motor starterIn TeSys LE 9A housing, 400VAC coil LE1D09V7
local index:
ASN010SCHN
Catalog No:
LE1D09V7
EAN code:
3389110573725
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Material:
PC
See full description
Price:
151,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description

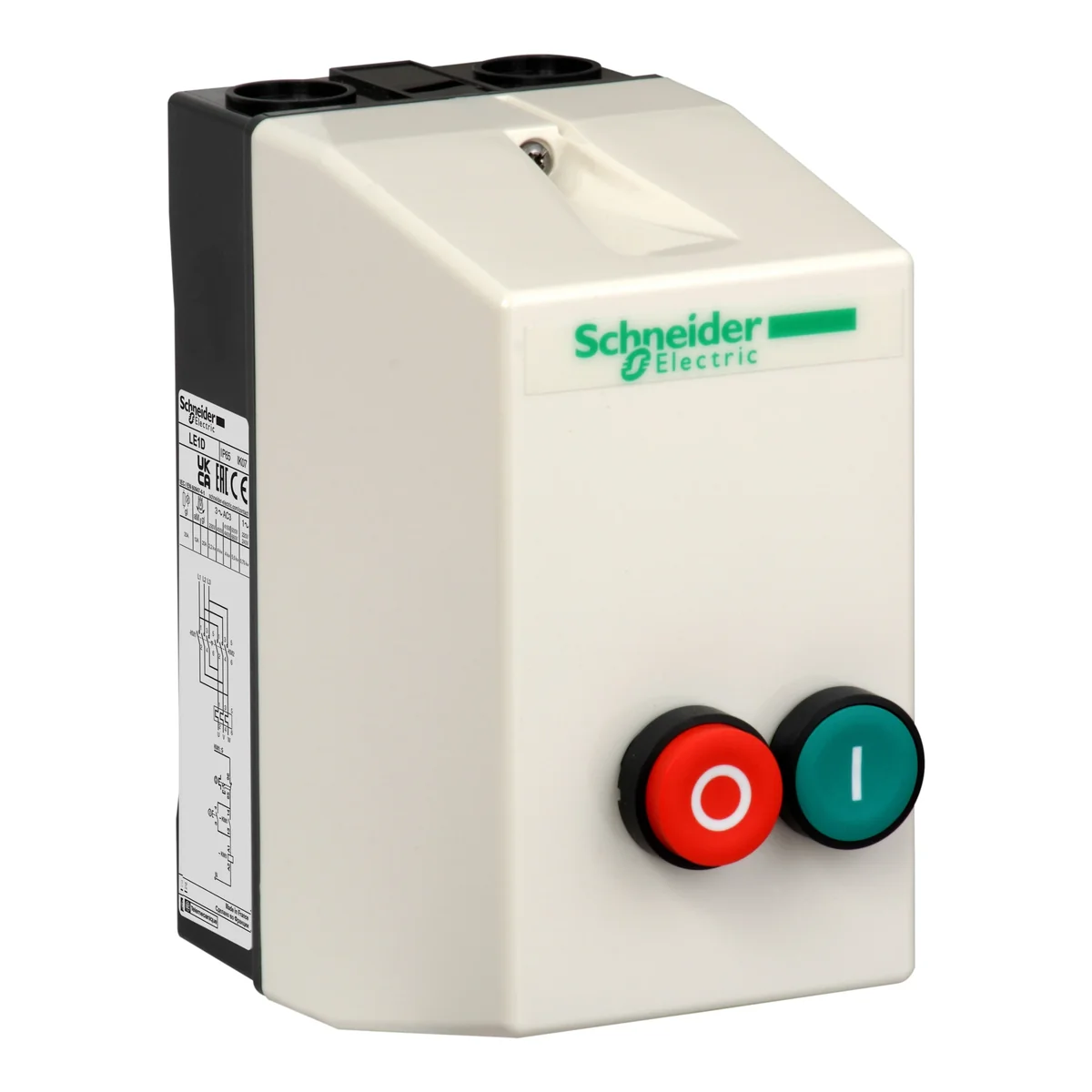

Motor starterIn TeSys LE 9A housing, 400VAC coil
Technical data
Material
PC
PKWIU
27.12.23.0
Other technical data
Type of motor starter
Direct online starter (DOL)
Rated control supply voltage AC 50 Hz
400 ... 400 V
Voltage type for actuating
AC
Rated operation power at AC-3, 400 V
4 kW
Rated power, 575 V, 60 Hz, 3-phase
5.5 kW
Rated operation current at AC-3, 400 V
9 A
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Screw connection
Rail mounting possible
No
Number of command positions
1
Number of indicator lights
0
With fuse
No
Supporting protocol for TCP/IP
No
Supporting protocol for CAN
No
Supporting protocol for ASI
No
Supporting protocol for Data-Highway
No
Supporting protocol for SUCONET
No
Supporting protocol for PROFINET IO
No
Supporting protocol for SERCOS
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for other bus systems
No
Height
166 mm
With short-circuit release
No
Rated control supply voltage AC 60 Hz
400 ... 400 V
Rated operation power at AC-3, 230 V, 3-phase
2.2 kW
Rated power, 460 V, 60 Hz, 3-phase
4 kW
Rated operation current Ie
9 A
Number of auxiliary contacts as normally open contact
0
Ambient temperature, upper operating limit
40 °C
Type of electrical connection for auxiliary- and control current circuit
Screw connection
With transformer
No
Suitable for emergency stop
No
External reset possible
No
Degree of protection (IP)
IP65
Supporting protocol for PROFIBUS
No
Supporting protocol for INTERBUS
No
Supporting protocol for Modbus
No
Supporting protocol for DeviceNet
No
Supporting protocol for LON
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for SafetyBUS p
No
Width
88 mm
Depth
128.5 mm
Files to download
Internal PEP ENVPEP2107010_V1.pdf
EoLI_ENVEOLI2107010_V1.pdf
UK_UKCA_declaration-SC21051901A-UK_LE1D-LE2D.docx.pdf
