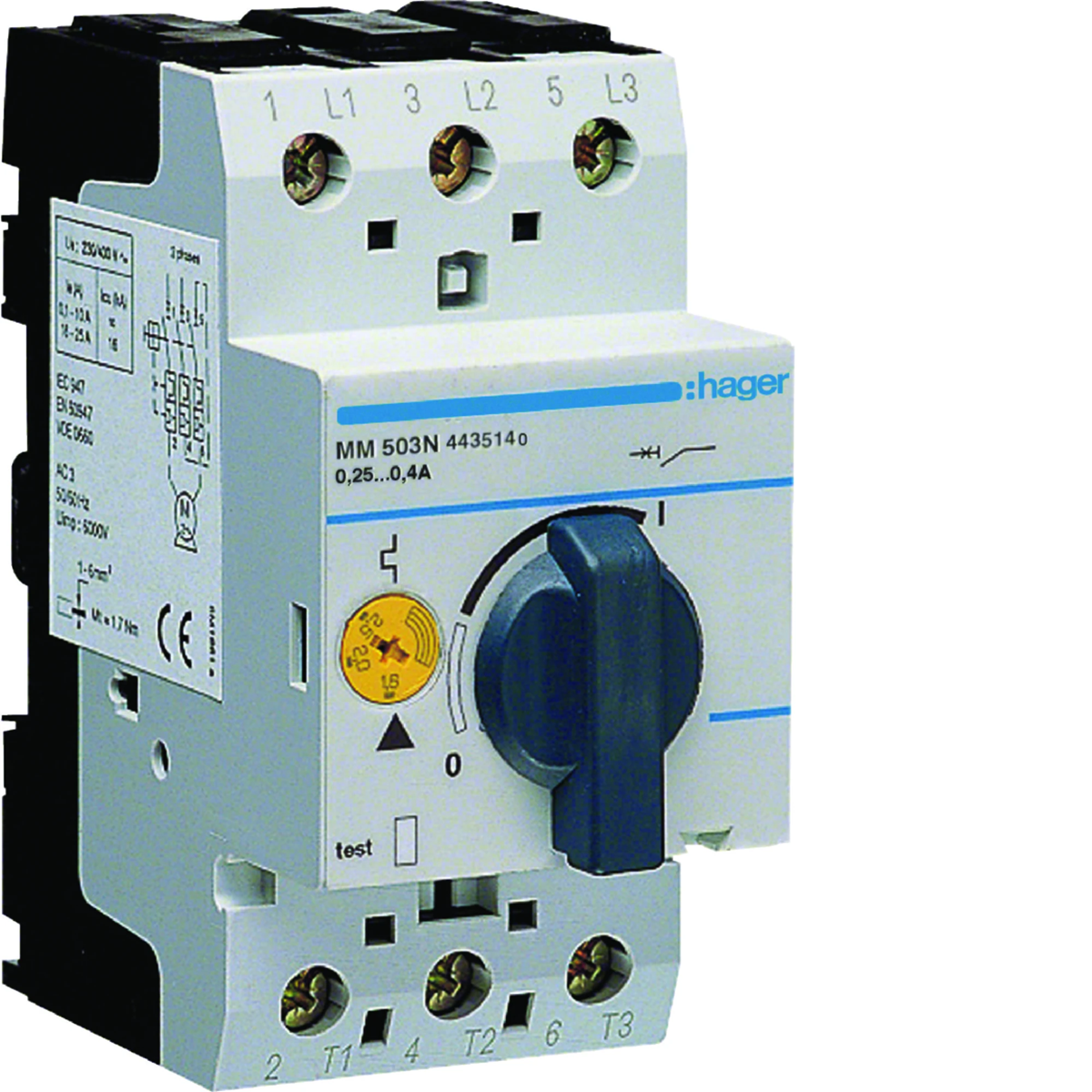

Motor protection switch 0 25-0 4A MM503N

Name: Motor protection switch 0 25-0 4A
Brand: HAGER
SKU: ASN001HAGE
Price: 50.79 PLN

Indeks lokalny:

ASN001HAGE

Nr katalogowy:

MM503N

Kod EAN:

3250614435164

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Depth [mm]: 70

Number of modules: 2.5

Number of poles: 3

Zobacz cały opis

Cena:

50,79 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 4 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Motor Circuit Breakers
• for protection of 1- or 3-phase motors
• trigger characteristic K
• rated voltage 230 V AC
• rated current range from 0.1 A to 25 A
• with thermal and electromagnetic release
• thermo-electromagnetic circuit breaker with adjustable bimetallic relay
• additionally, an auxiliary contact and an undervoltage release can be added
• standard: VDE 0660 part 102
• cage clamps:
- wire up to 6 mm2
- strand up to 4 mm2

Dane techniczne

Depth [mm]

70
Number of poles

3
Rated insulation voltage [V]

690
Rated current [A]

0.4
Height [mm]

92
Number of modules

2.5

Number of modules

2.5
Surge voltage [kV]

6000
Setting current [A]

11.2/14/16.8
Width [mm]

44
Rated short-circuit breaking capacity according to IEC 947.2 50 Hz

100
PKWIU

27.12.22.0

Pozostałe dane techniczne

Overload release current setting

0.25 ... 0.4 A
With thermal overload protection

Yes
Switch off technique

Thermomagnetic
Rated permanent current Iu

0.4 A
Rated operation power at AC-3, 400 V

0.09 kW
Type of control element

Turn button
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

45 mm

Adjustment range undelayed short-circuit release

4.96 ... 7.4 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

0.06 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

150 kA
Height

140 mm
Depth

75 mm

Dane producenta

Producent

HAGER POLO Sp. z o. o.
Adres

43-100 Tychy Fabryczna 10
NIP

6460015532

Opakowania zbiorcze

Rodzaj opakowania	Karton	Pakiet	Paleta
Ilość	1 szt.	48 szt.	1152 szt.
Waga (kg)	0,260	12,885	332,240
Szerokość (m)	0,080	0,310	0,800
Długość (m)	0,055	0,230	1,050
Głębokość (m)	0,095	0,355	1,200
