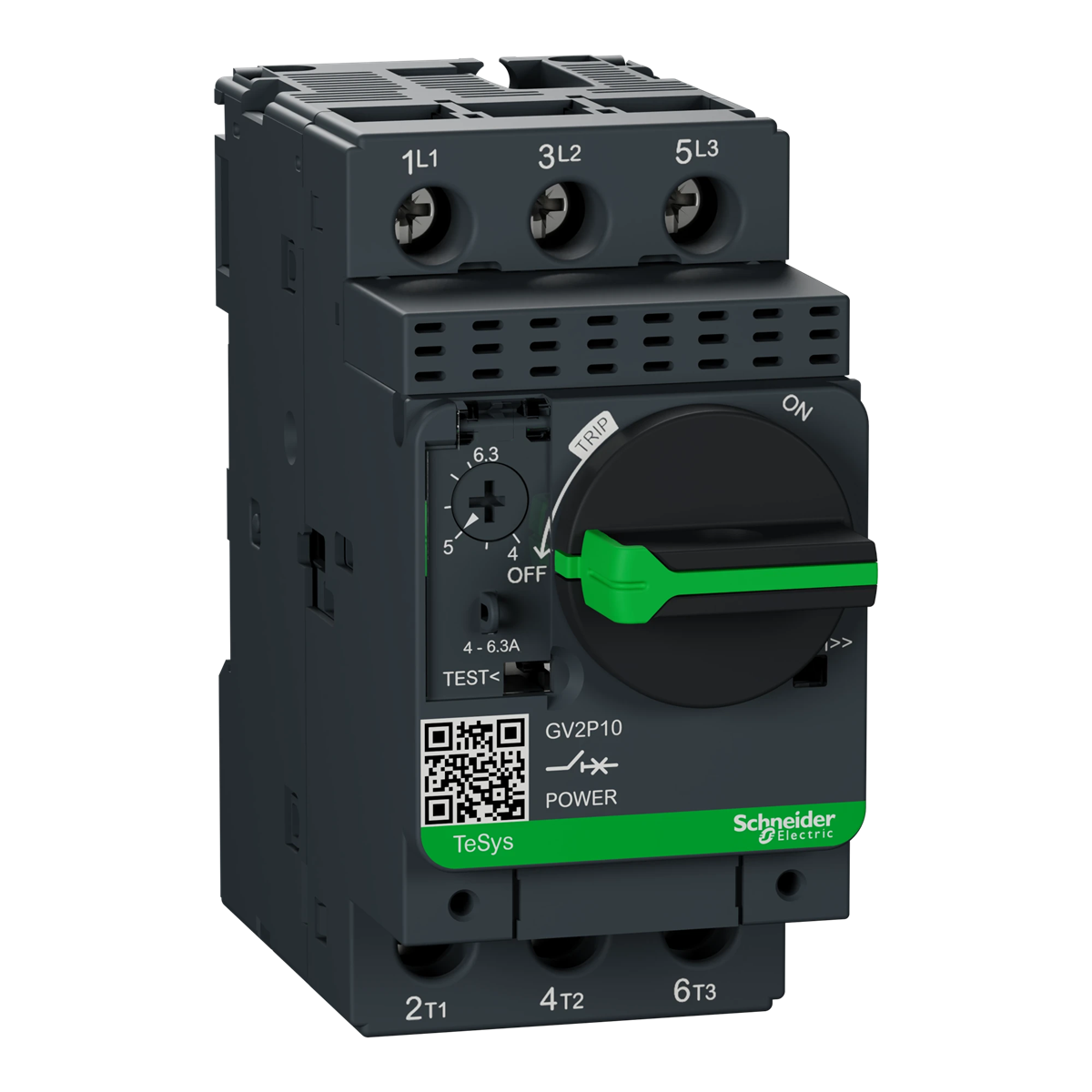

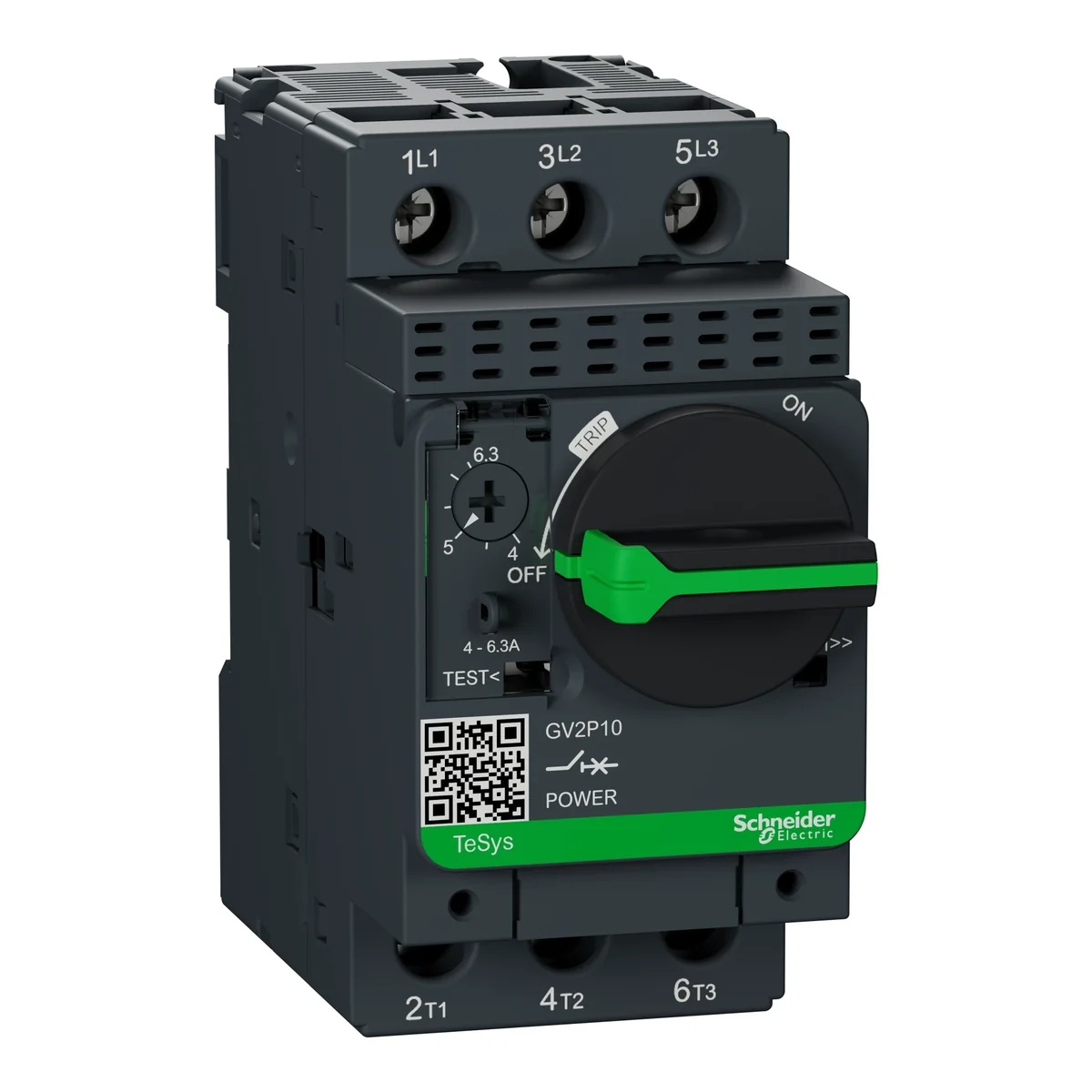

Motor circuit breaker, thermo-magnetic 4-6.3A GV2P10
local index:
ASN118SCHN
Catalog No:
GV2P10
EAN code:
3389110213485
Manufacturer:
SCHNEIDER ELECTRIC
Trip setting [A]: 4-6.3
Price:
74,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Motor circuit breaker, thermo-magnetic 4-6.3A
Technical data
-
Trip setting [A]4-6.3
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting4 ... 6.3 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu6.3 A
-
Rated operation power at AC-3, 400 V2.2 kW
-
Type of control elementTurn button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width44.5 mm
-
Adjustment range undelayed short-circuit release78 ... 78 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V1.5 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC100 kA
-
Height89 mm
-
Depth97 mm
