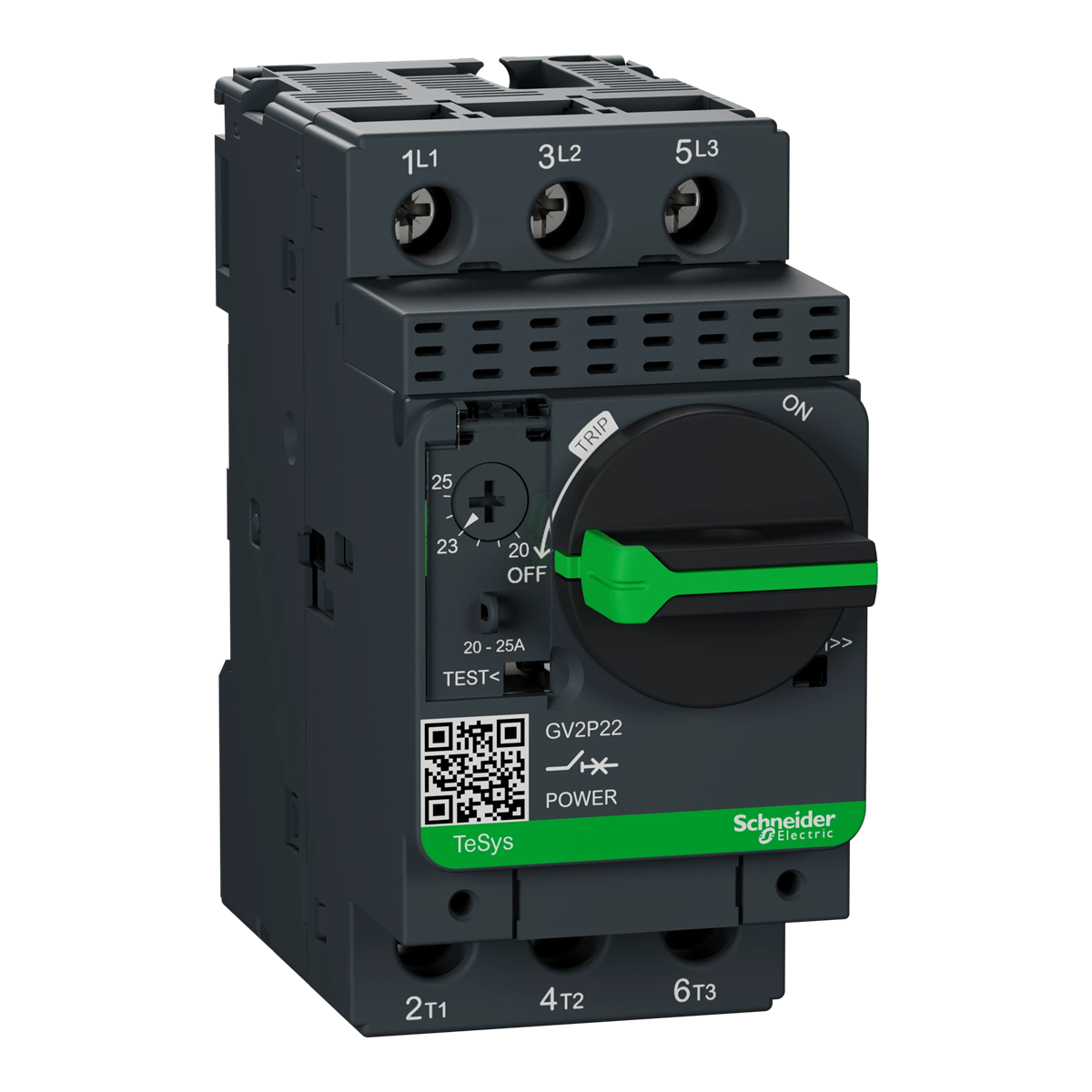

Motor circuit breaker, thermo-magnetic 20-25A GV2P22

local index:
ASN017SCHN
Catalog No:
GV2P22
EAN code:
3389110213539
Manufacturer: SCHNEIDER ELECTRIC
Trip setting [A]: 20-25
Price:
114,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motor circuit breaker, thermo-magnetic 20-25A

Technical data

  • Trip setting [A]
    20-25
  • PKWIU
    27.12.22.0

Other technical data

  • Overload release current setting
    20 ... 25 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    25 A
  • Rated operation power at AC-3, 400 V
    11 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    44.5 mm
  • Adjustment range undelayed short-circuit release
    327 ... 327 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    5.5 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
  • Height
    89 mm
  • Depth
    97 mm
