SCHNEIDER ELECTRIC

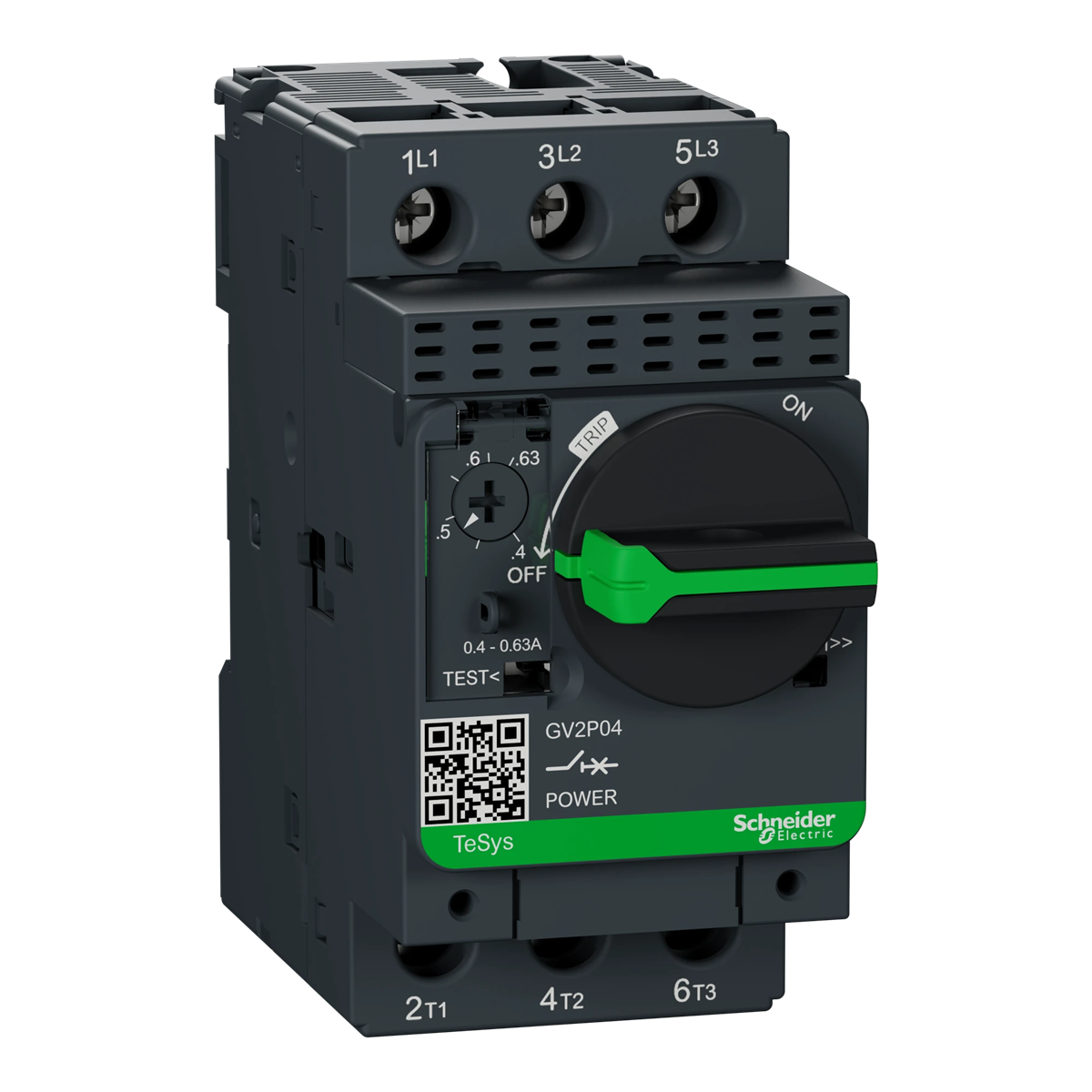

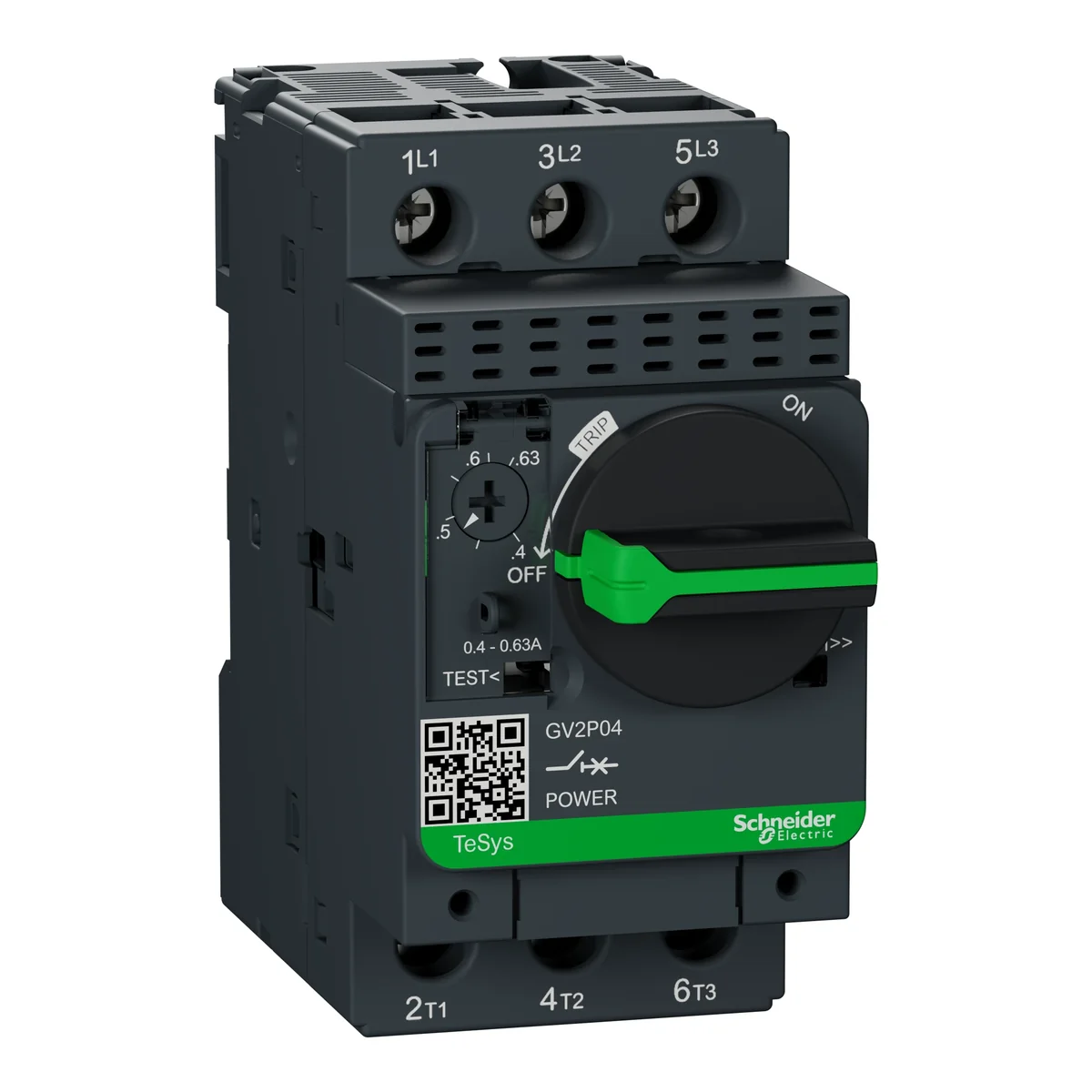

Motor circuit breaker, thermo-magnetic 0.4-0.63A GV2P04

local index:
ASN037SCHN
Catalog No:
GV2P04
EAN code:
3389110213430
Price:
69,32 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Motor circuit breaker, thermo-magnetic 0.4-0.63A

Technical data

  • Trip setting [A]
    0.4-0.63

Other technical data

  • Overload release current setting
    0.4 ... 0.63 A
  • With thermal overload protection
    yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    0.63 A
  • Rated operation power at AC-3, 400 V
    0.18 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    no
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    44.5 mm
  • Adjustment range undelayed short-circuit release
    8 ... 8 A
  • Phase failure sensitive
    yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    0.09 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    no
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100 kA
  • Height
    89 mm
  • Depth
    97 mm
