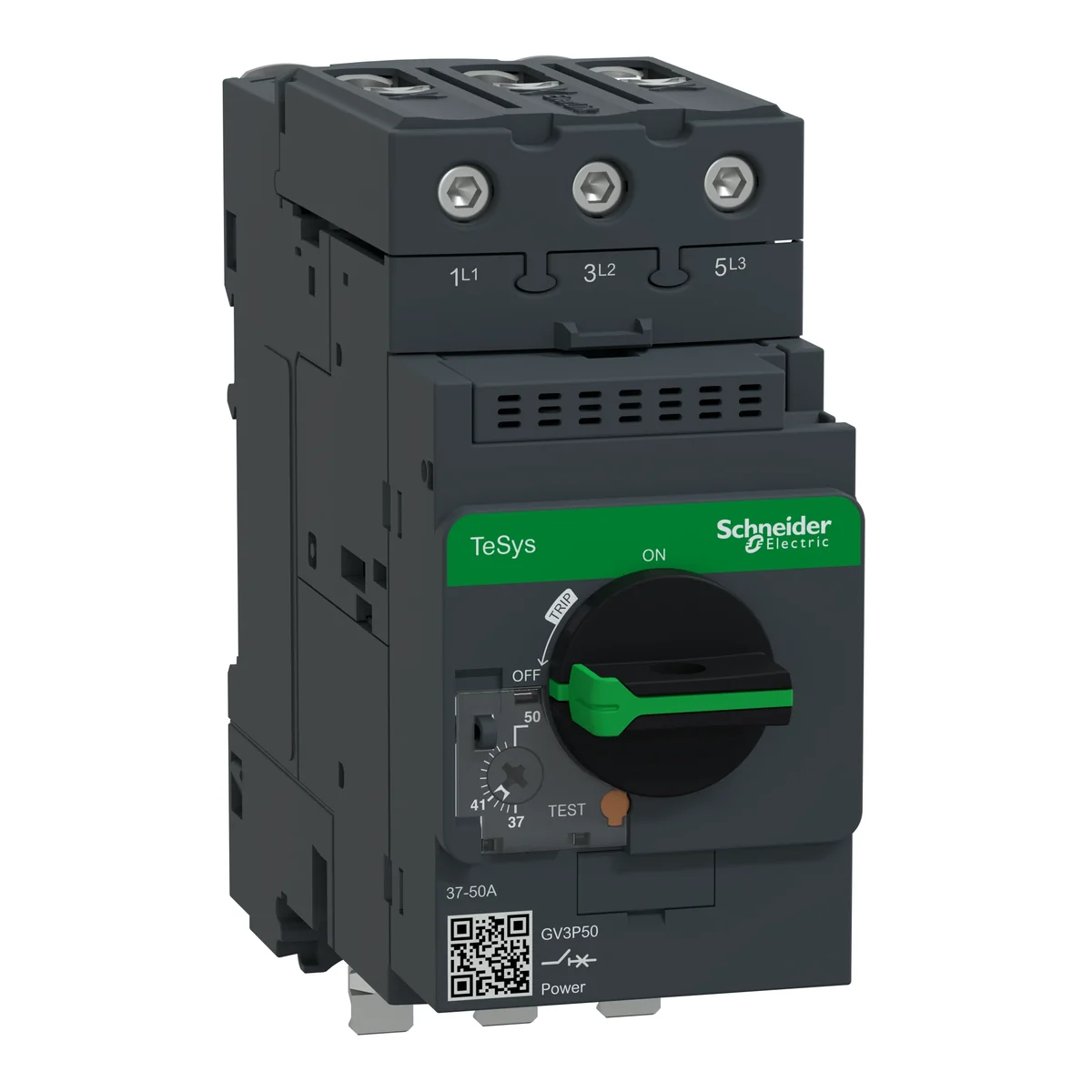

Motor circuit breaker TeSys GV3P rotary drive 50A everlink terminals GV3P501
local index:
ASN085SCHN
Catalog No:
GV3P501
EAN code:
3389119412261
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]: 111
Price:
278,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Motor circuit breaker TeSys GV3P rotary drive 50A everlink terminals
Technical data
-
Height [mm]111
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting37 ... 50 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu50 A
-
Rated operation power at AC-3, 400 V22 kW
-
Type of control elementTurn button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width55 mm
-
Adjustment range undelayed short-circuit release700 ... 700 A
-
Phase failure sensitiveYes
-
Rated operating voltage0 ... 690 V
-
Rated operation power at AC-3, 230 V15 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
-
Height111 mm
-
Depth136 mm
