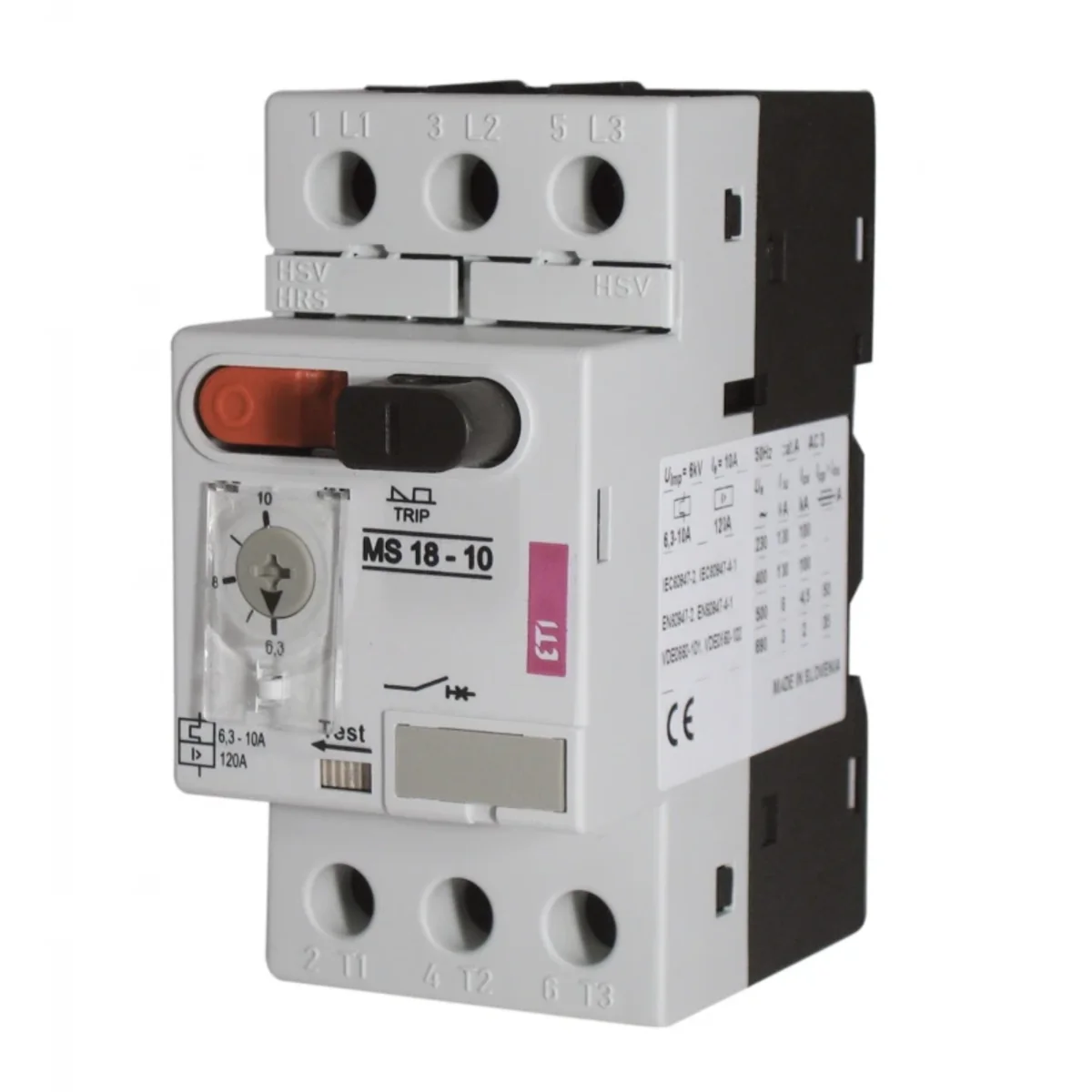

Motor circuit breaker MS18 6.3A 004600348
local index:
ASN033ETIP
Catalog No:
004600348
EAN code:
3838895575757
Price:
45,24 €
gross / pcs.
(including VAT 23%)
150,80 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
MS 18 motor circuit breakers are used to start electric motors and protect them against overload and short circuit. They can be used as a main or emergency switch.
Advantages:
temperature compensation
possibility of testing
phase loss control (according to PN-IEC 60947-4-1)
possibility to select the setting range of triggers in 12 ranges from 0, 1 A to 18 A
the possibility of blocking before switching on
wide accessories
Advantages:
temperature compensation
possibility of testing
phase loss control (according to PN-IEC 60947-4-1)
possibility to select the setting range of triggers in 12 ranges from 0, 1 A to 18 A
the possibility of blocking before switching on
wide accessories
Technical data
-
Level of securityIP20
-
Ie range [A]4-6.3
-
Weight [g]300
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting4 ... 6.3 A
-
Phase failure sensitiveYes
-
Rated operating voltage230 ... 690 V
-
Type of electrical connection of main circuitFrame clamp
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Adjustment range undelayed short-circuit release75 ... 75 A
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu6.3 A
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
