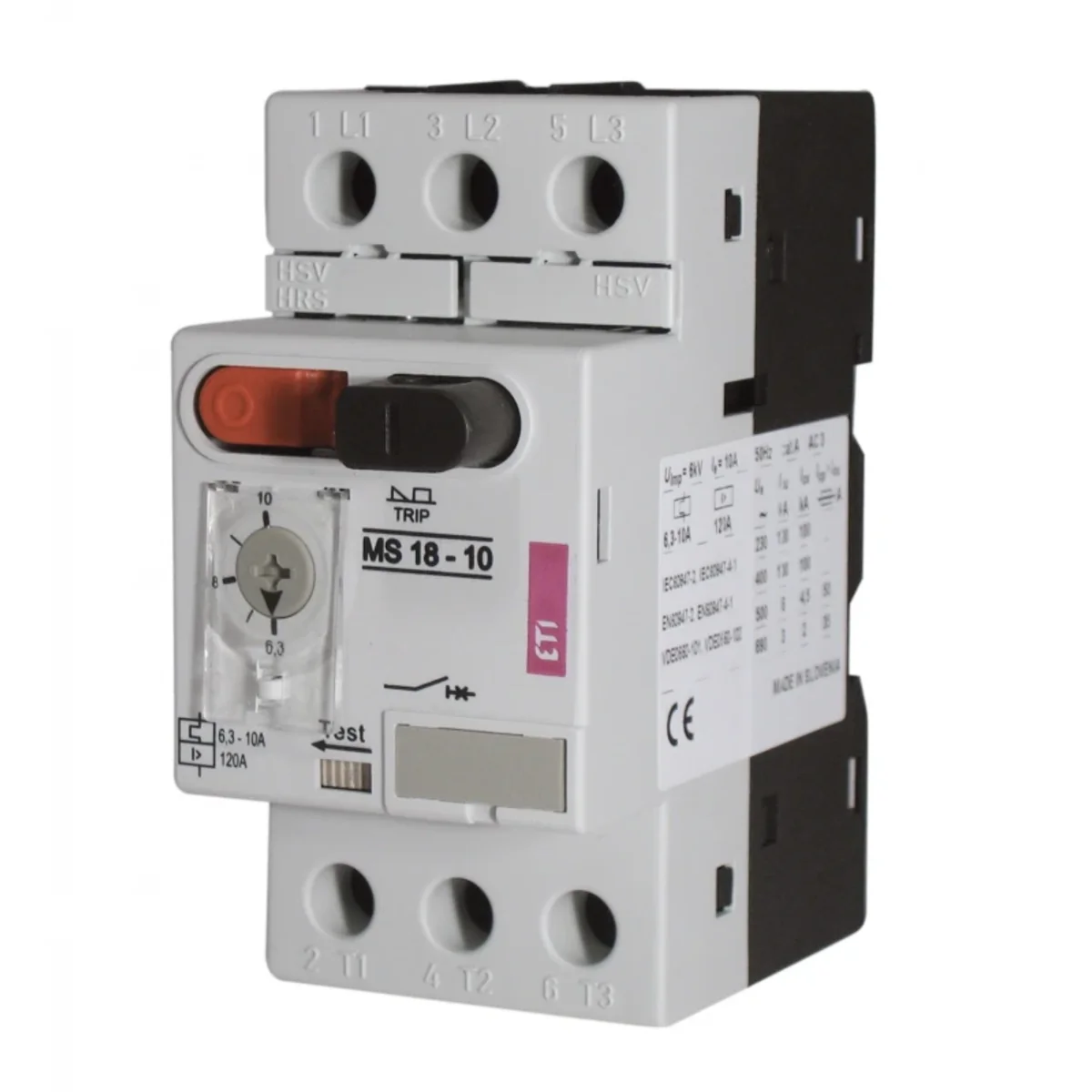

Motor circuit breaker MS18 0.4A 004600342

Místní index:
ASN008ETIP
Katalogové číslo.:
004600342
EAN kód:
3838895575610
Výrobce: ETI POLAM
Level of security: IP20
Weight [g]: 300
Ie range [A]: 0.25-0.4
Cena:
206,23 zł
gross / kusů.
(včetně DPH 23%)
687,43 zł gross/kg.
do 2 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

MS 18 motor circuit breakers are used to start electric motors and protect them against overload and short circuit. They can be used as a main or emergency switch.
Advantages:

temperature compensation
possibility of testing
phase loss control (according to PN-IEC 60947-4-1)
possibility to select the setting range of triggers in 12 ranges from 0, 1 A to 18 A
the possibility of blocking before switching on
wide accessories

Technické údaje

  • Level of security
    IP20
  • Ie range [A]
    0.25-0.4
  • Weight [g]
    300
  • PKWIU
    27.12.22.0

Další technické údaje

  • Overload release current setting
    0.25 ... 0.4 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    230 ... 690 V
  • Type of electrical connection of main circuit
    Frame clamp
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Adjustment range undelayed short-circuit release
    5 ... 5 A
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    0.4 A
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
