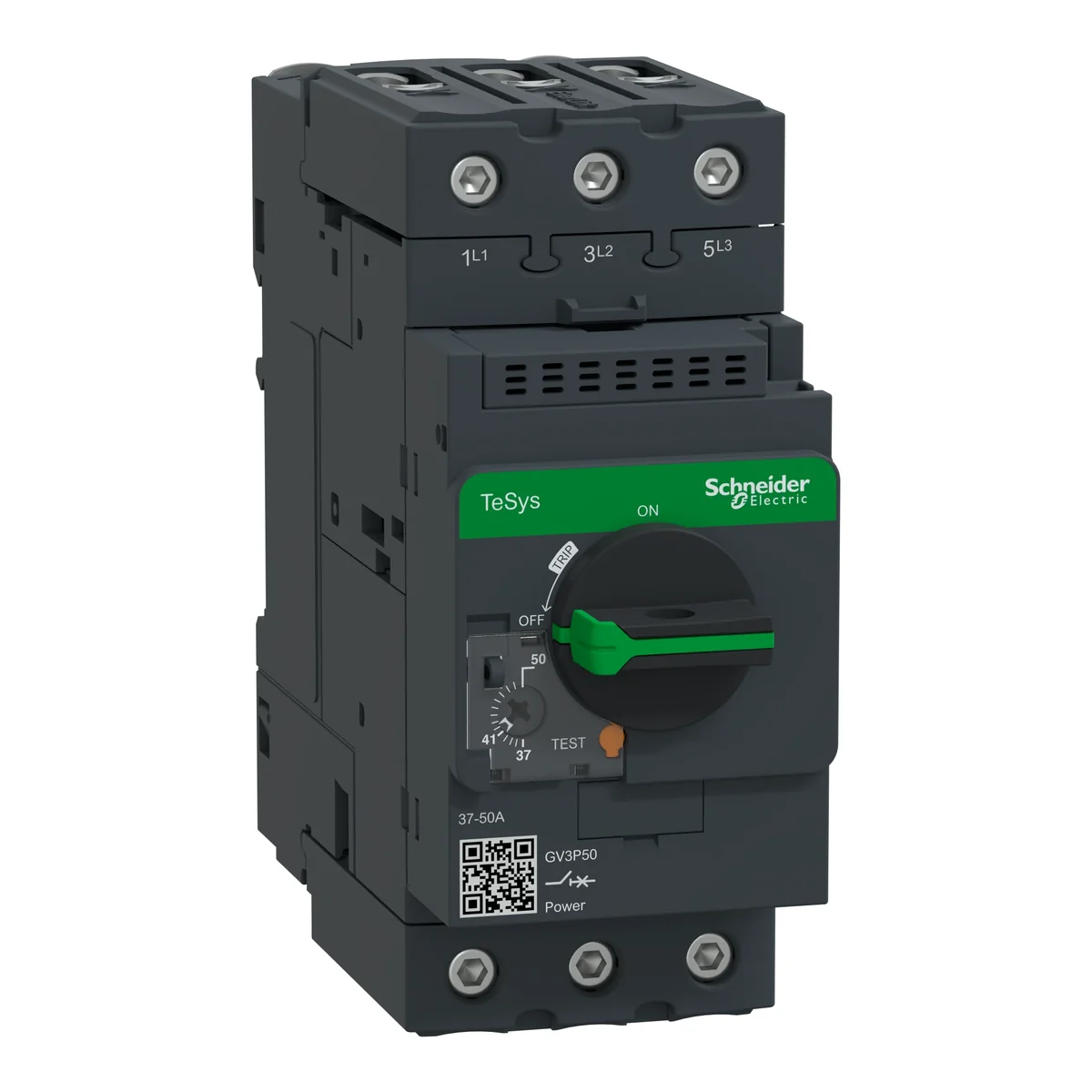

Motor circuit breaker, magneto-thermal 37-50A GV3P50
local index:
ASN035SCHN
Catalog No:
GV3P50
EAN code:
3389119405409
Manufacturer:
SCHNEIDER ELECTRIC
Trip setting [A]: 37-50
Price:
219,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Motor circuit breaker, magneto-thermal 37-50A
Technical data
-
Trip setting [A]37-50
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting37 ... 50 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu50 A
-
Rated operation power at AC-3, 400 V22 kW
-
Type of control elementTurn button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width55 mm
-
Adjustment range undelayed short-circuit release700 ... 700 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V15 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
-
Height132 mm
-
Depth136 mm
