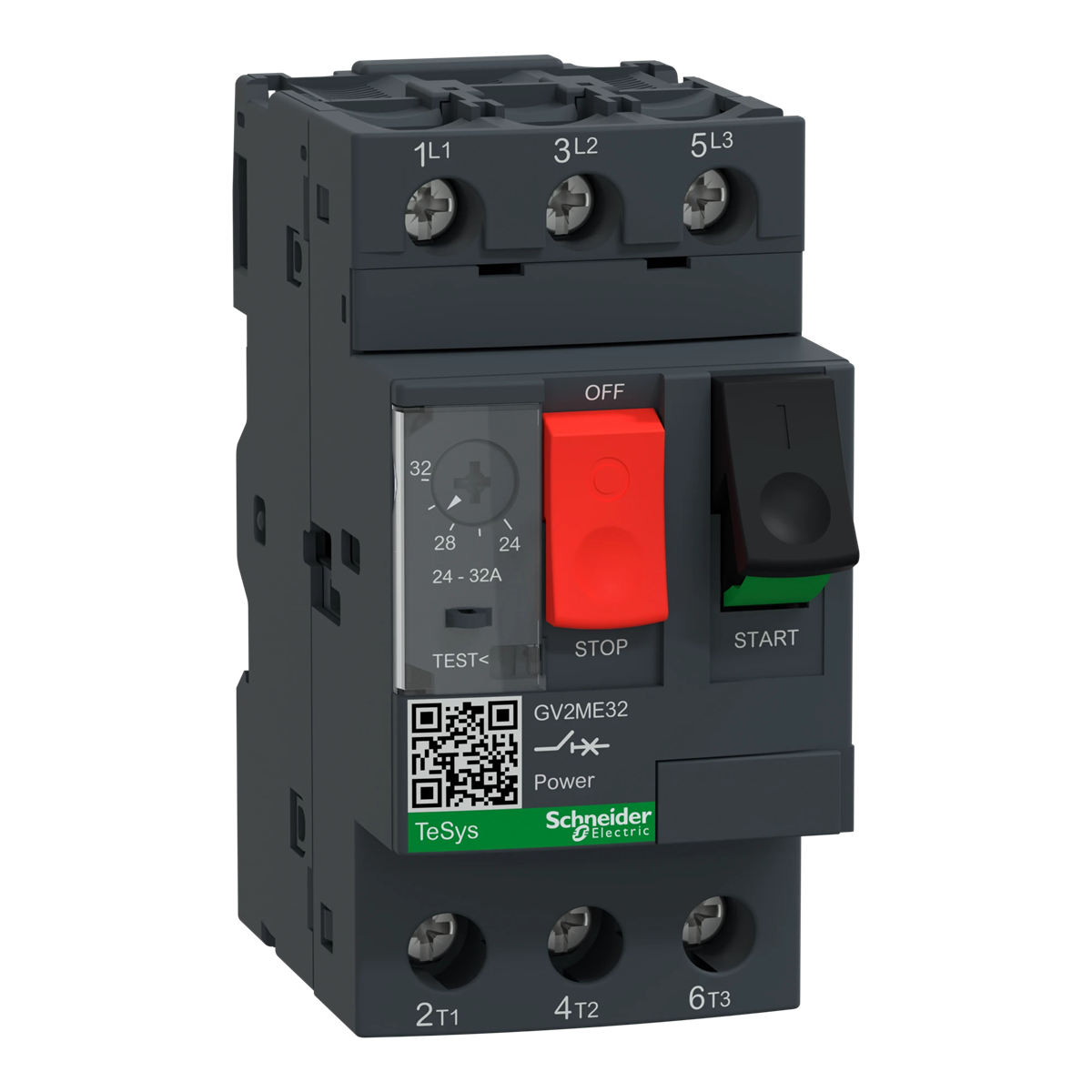

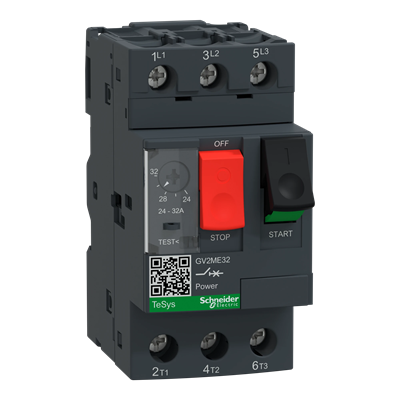

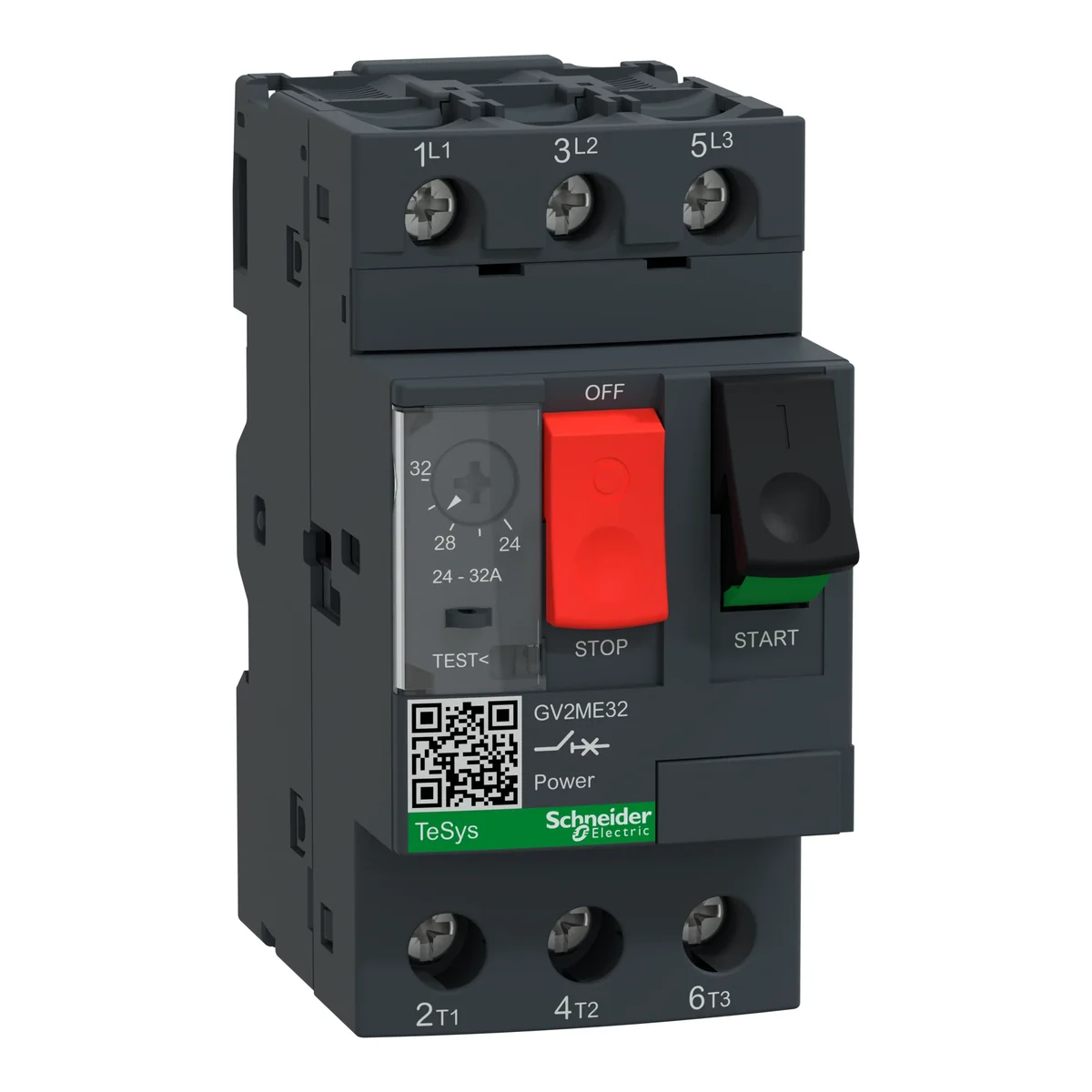

Motor circuit breaker, magneto-thermal 24-32A GV2ME32
local index:
ASN003SCHN
Catalog No:
GV2ME32
EAN code:
3389110343298
Manufacturer:
SCHNEIDER ELECTRIC
Trip setting [A]: 24-32
Price:
141,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Protecting motors from failures such as high-voltage overloads, short circuits, or relay shutdowns is essential in times when any downtime can be detrimental to your business and operations. Schneider Electric has built a reliable, robust series, known as the GV2M motor protection circuit breaker, that will act as the intermediary between devices, protecting essential equipment in the event of unforeseen events.
Technical data
-
Trip setting [A]24-32
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting24 ... 32 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu32 A
-
Rated operation power at AC-3, 400 V15 kW
-
Type of control elementPush button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release416 ... 416 A
-
Phase failure sensitiveYes
-
Rated operating voltage230 ... 690 V
-
Rated operation power at AC-3, 230 V7.5 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC10 kA
-
Height89 mm
-
Depth78.2 mm
