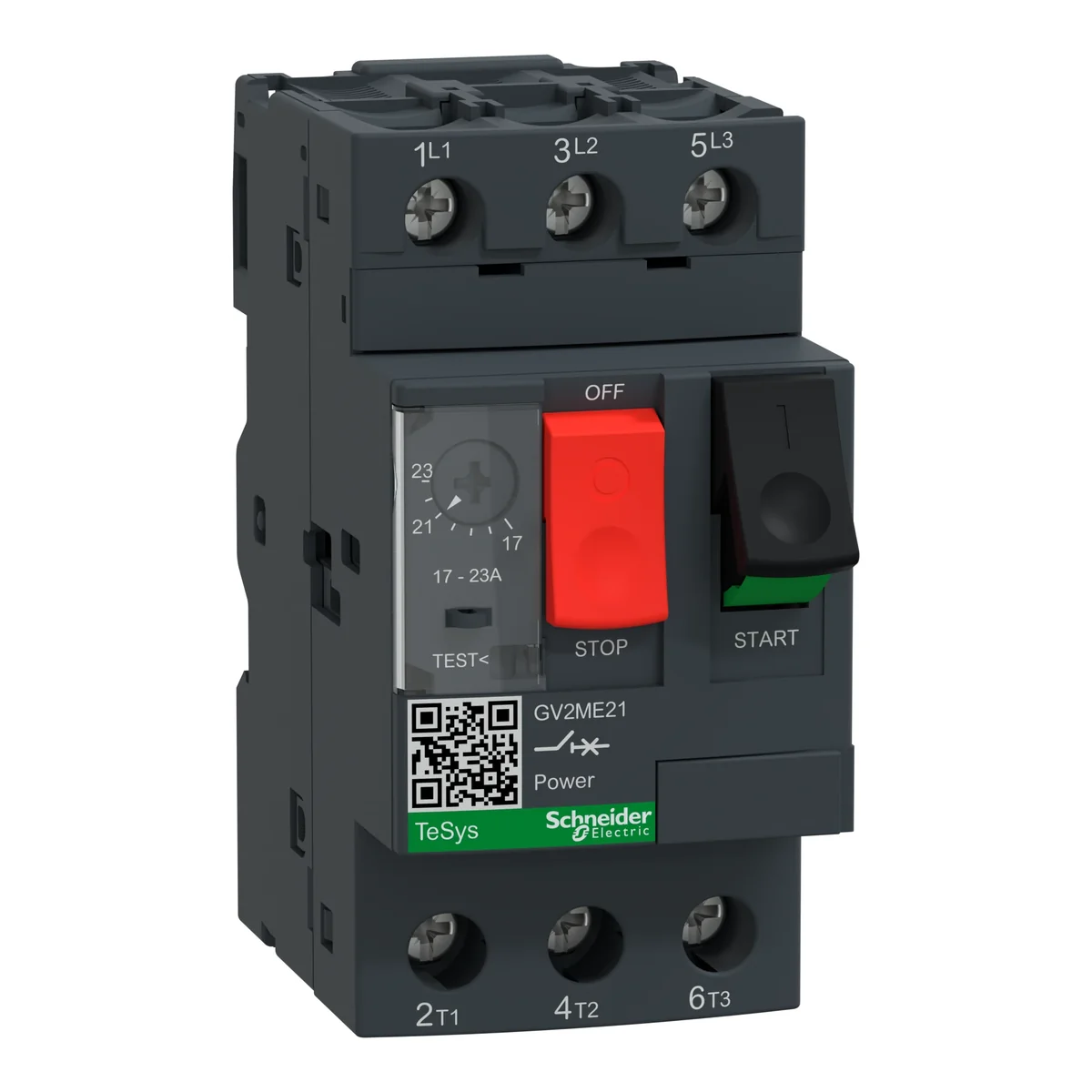

Motor circuit breaker, magneto-thermal 17-23A GV2ME21
local index:
ASN042SCHN
Catalog No:
GV2ME21
EAN code:
3389110343212
Manufacturer:
SCHNEIDER ELECTRIC
Trip setting [A]: 17-23
Price:
84,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Protecting motors from failures such as high voltage overloads, short circuits or relay shutdowns is essential in times when any downtime can be detrimental to your business and operations. Schneider Electric has built a reliable, robust series known as the GV2M motor protection circuit breaker, which will act as the intermediary between devices, protecting essential equipment in the event of unforeseen events.
Technical data
-
Trip setting [A]17-23
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting17 ... 23 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu23 A
-
Rated operation power at AC-3, 400 V9 kW
-
Type of control elementPush button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release327 ... 327 A
-
Phase failure sensitiveYes
-
Rated operating voltage230 ... 690 V
-
Rated operation power at AC-3, 230 V5.5 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC15 kA
-
Height89 mm
-
Depth78.2 mm
