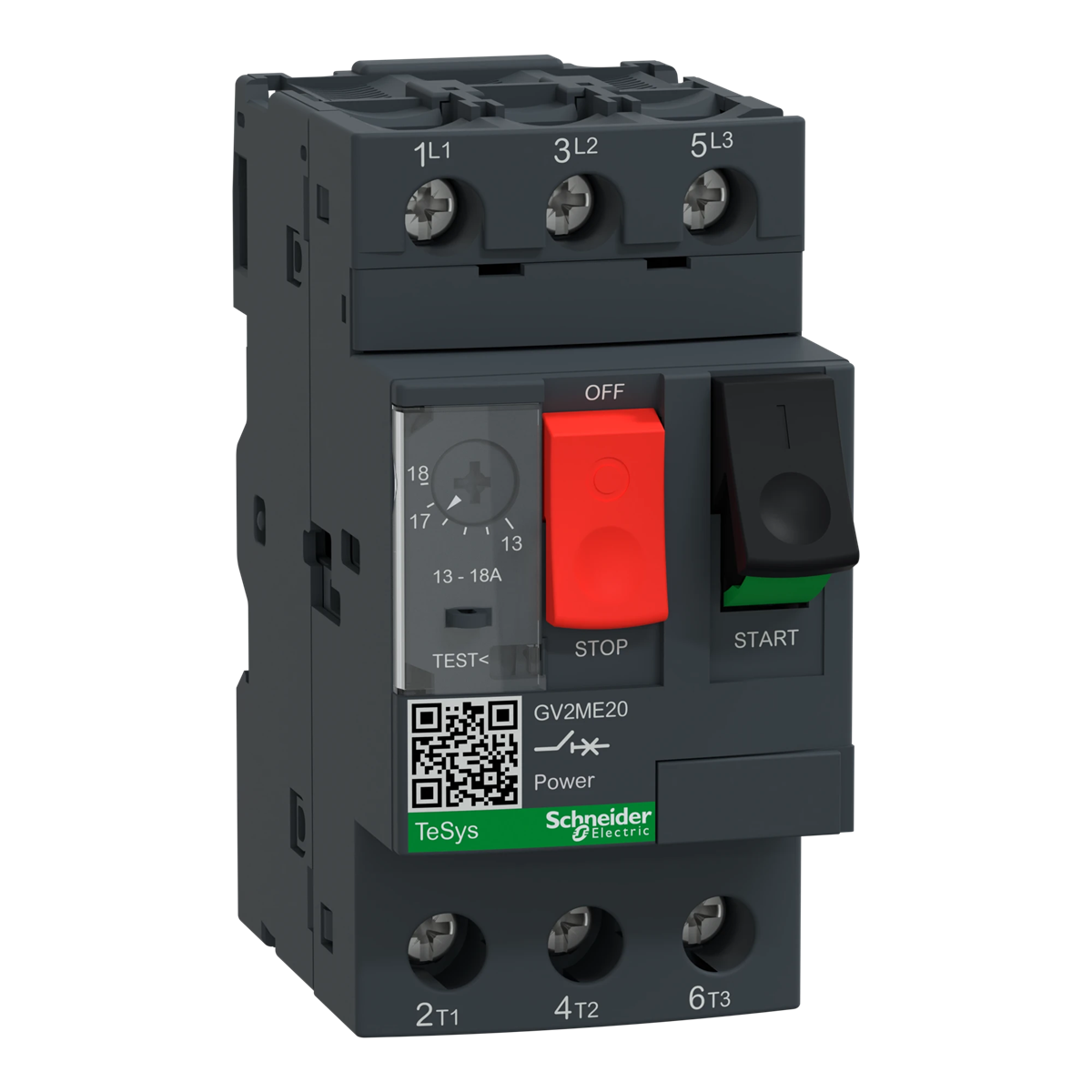

Motor circuit breaker, magneto-thermal 13-18A GV2ME20

local index:
ASN001SCHN
Catalog No:
GV2ME20
EAN code:
3389110343199
Manufacturer: SCHNEIDER ELECTRIC
Trip setting [A]: 13-18
Price:
76,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Protecting motors from failures such as high voltage overloads, short circuits or relay shutdowns is essential in times when any downtime can be detrimental to your business and operations. Schneider Electric has built a reliable, robust series known as the GV2M motor protection circuit breaker, which will act as the intermediary between devices, protecting essential equipment in the event of unforeseen events.

Technical data

  • Trip setting [A]
    13-18
  • PKWIU
    27.12.22.0

Other technical data

  • Overload release current setting
    13 ... 18 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    18 A
  • Rated operation power at AC-3, 400 V
    7.5 kW
  • Type of control element
    Push button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    223 ... 223 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    230 ... 690 V
  • Rated operation power at AC-3, 230 V
    4 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    15 kA
  • Height
    89 mm
  • Depth
    78.2 mm
