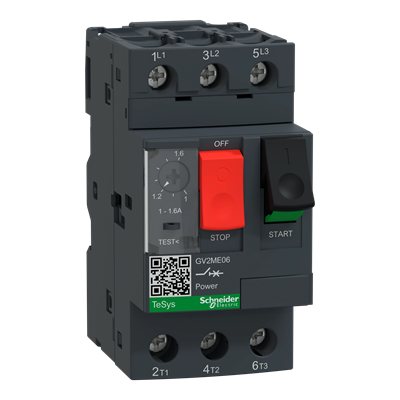

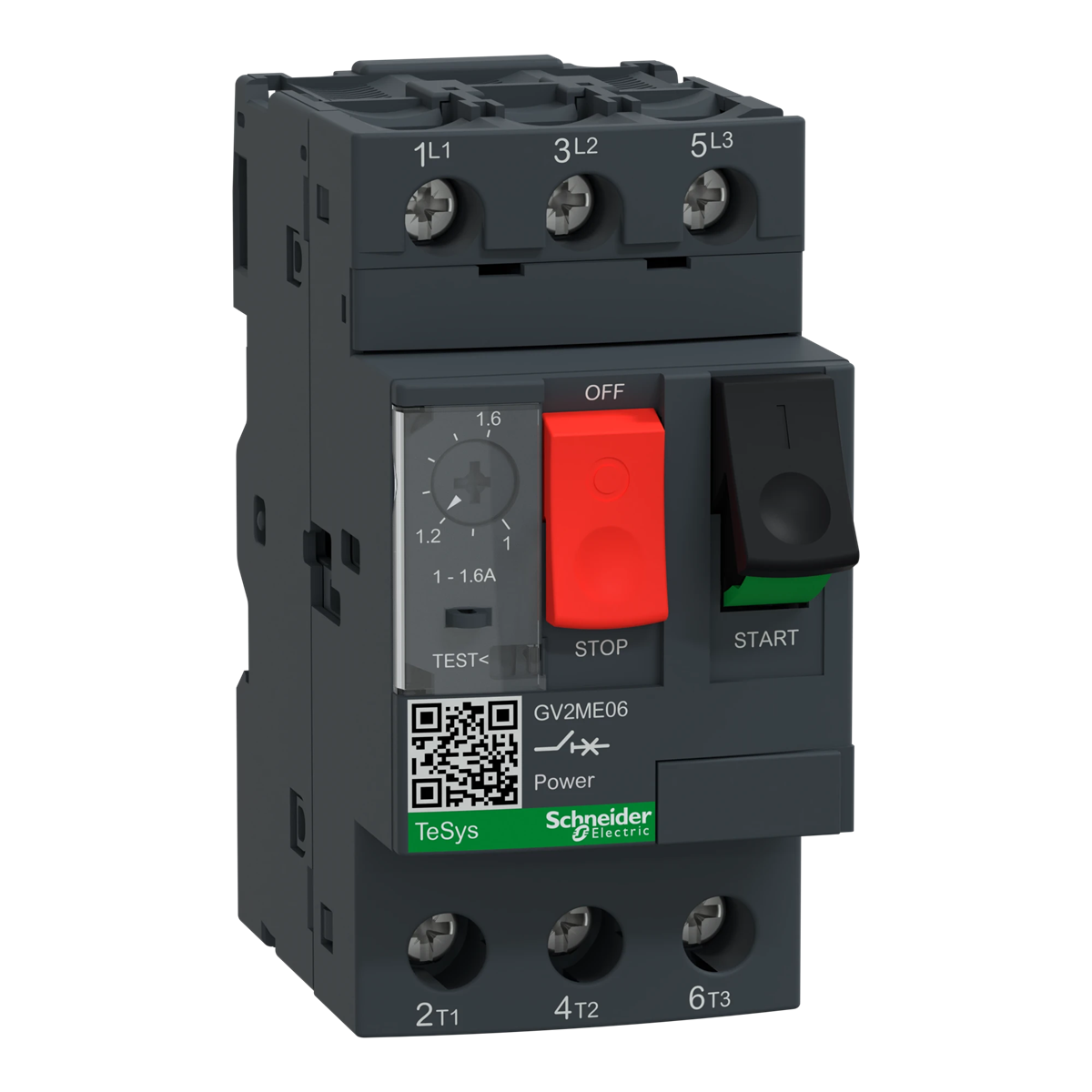

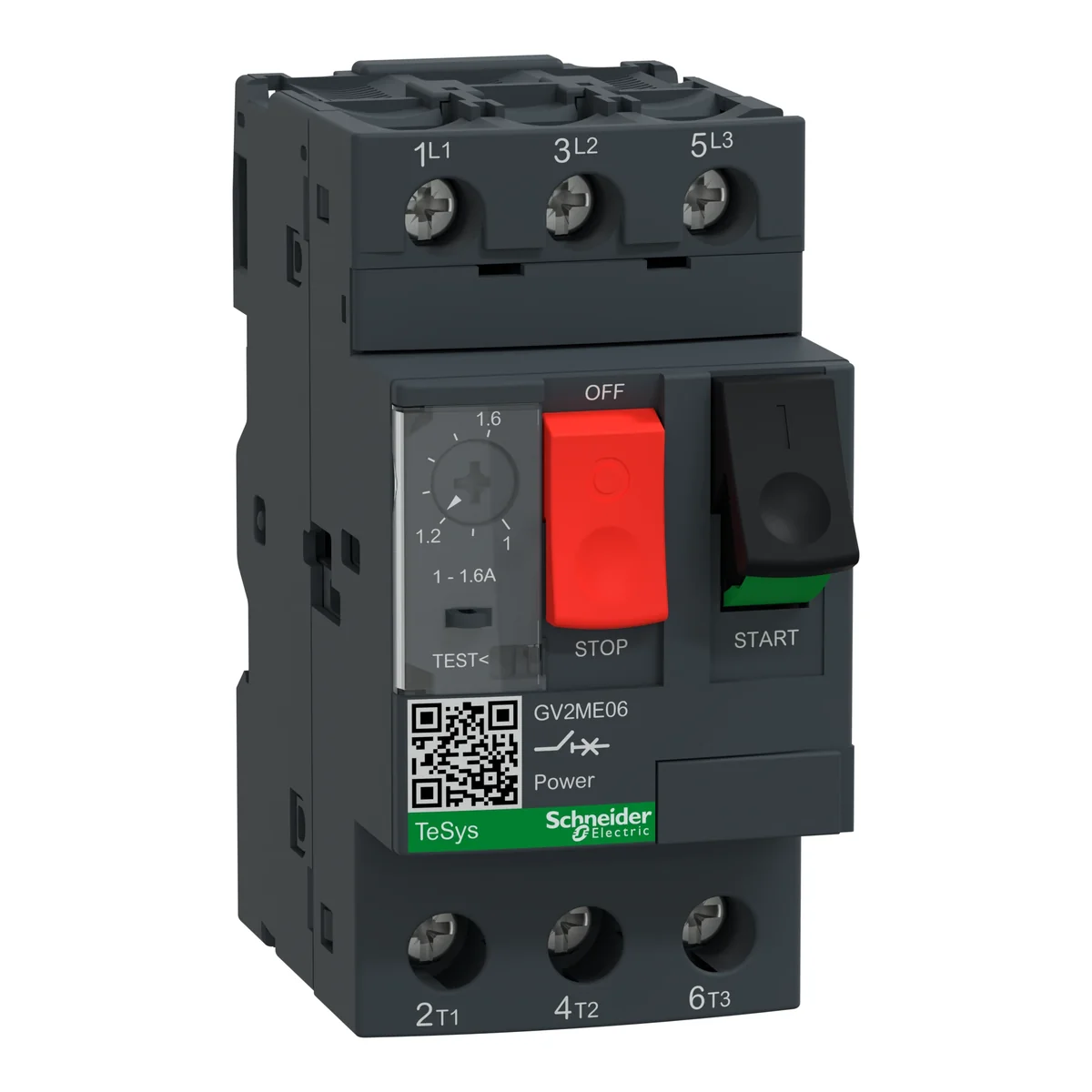

Motor circuit breaker, magneto-thermal 1.0-1.6A GV2ME06

local index:
ASN012SCHN
Catalog No:
GV2ME06
EAN code:
3389110343052
Manufacturer: SCHNEIDER ELECTRIC
Trip setting [A]: 1.0-1.6
Price:
62,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Protecting motors from failures such as high-voltage overloads, short circuits, or relay shutdowns is essential in times when any downtime can be detrimental to your business and operations. Schneider Electric has built a reliable, robust series, known as the GV2M motor protection circuit breaker, that will act as the intermediary between devices, protecting essential equipment in the event of unforeseen events.

Technical data

  • Trip setting [A]
    1.0-1.6
  • PKWIU
    27.12.22.0

Other technical data

  • Overload release current setting
    1 ... 1.6 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    1.6 A
  • Rated operation power at AC-3, 400 V
    0.55 kW
  • Type of control element
    Push button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    22.5 ... 22.5 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    230 ... 690 V
  • Rated operation power at AC-3, 230 V
    0.25 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100 kA
  • Height
    89 mm
  • Depth
    78.2 mm
