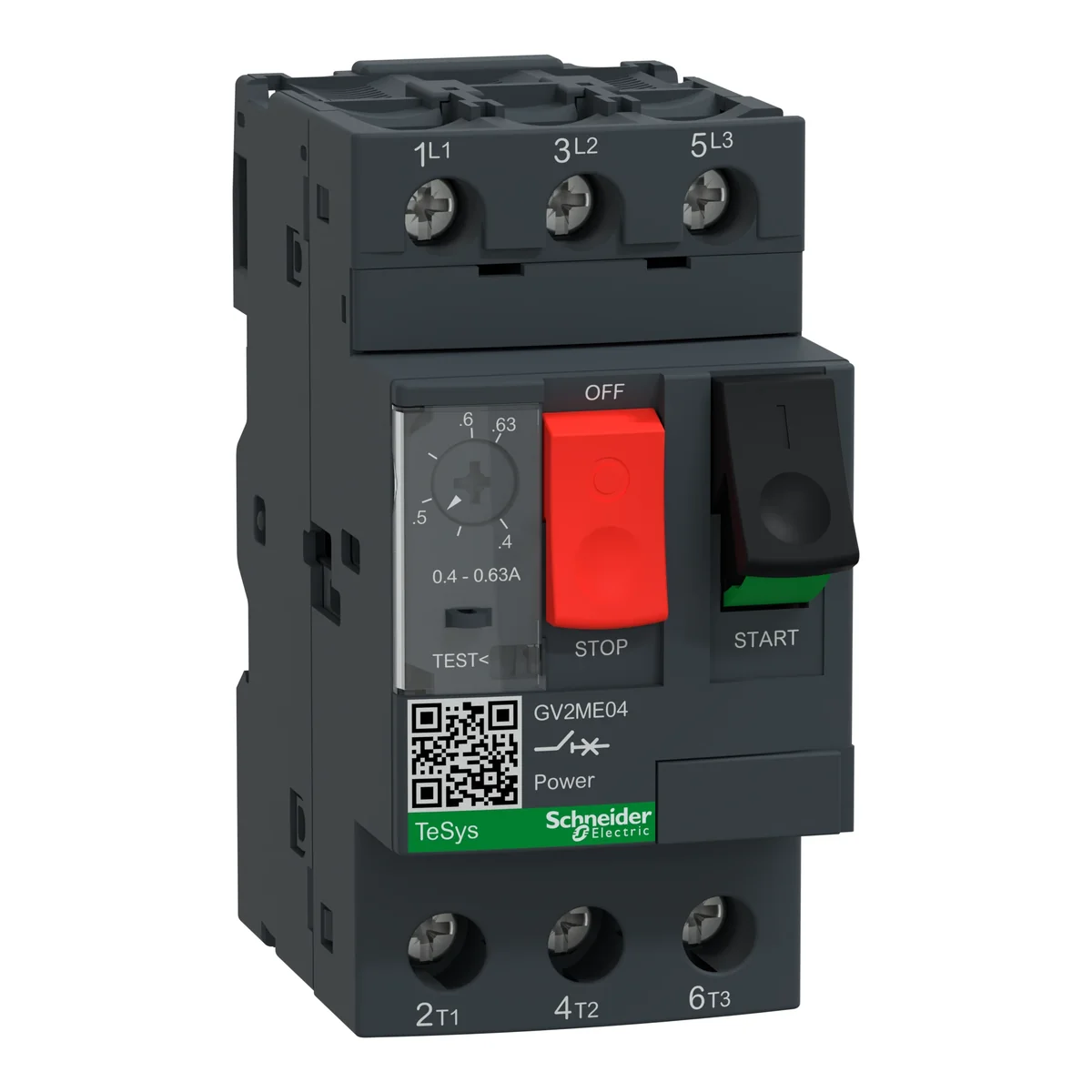

Motor circuit breaker, magneto-thermal 0.40-0.63A GV2ME04

Index local:
ASN027SCHN
Numéro de catalogue:
GV2ME04
Code EAN:
3389110343014
Trip setting [A]: 0.40-0.63
Prix:
234,25 zł
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Protecting motors from failures such as high voltage overloads, short circuits or relay shutdowns is essential in times when any downtime can be detrimental to your business and operations. Schneider Electric has built a reliable, robust series known as the GV2M motor protection circuit breaker, which will act as the intermediary between devices, protecting essential equipment in the event of unforeseen events.

Données techniques

  • Trip setting [A]
    0.40-0.63
  • PKWIU
    27.12.22.0

Autres données techniques

  • Overload release current setting
    0.4 ... 0.63 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    0.63 A
  • Rated operation power at AC-3, 400 V
    0.18 kW
  • Type of control element
    Push button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    8 ... 8 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    230 ... 690 V
  • Rated operation power at AC-3, 230 V
    0.09 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100 kA
  • Height
    89 mm
  • Depth
    78.2 mm
