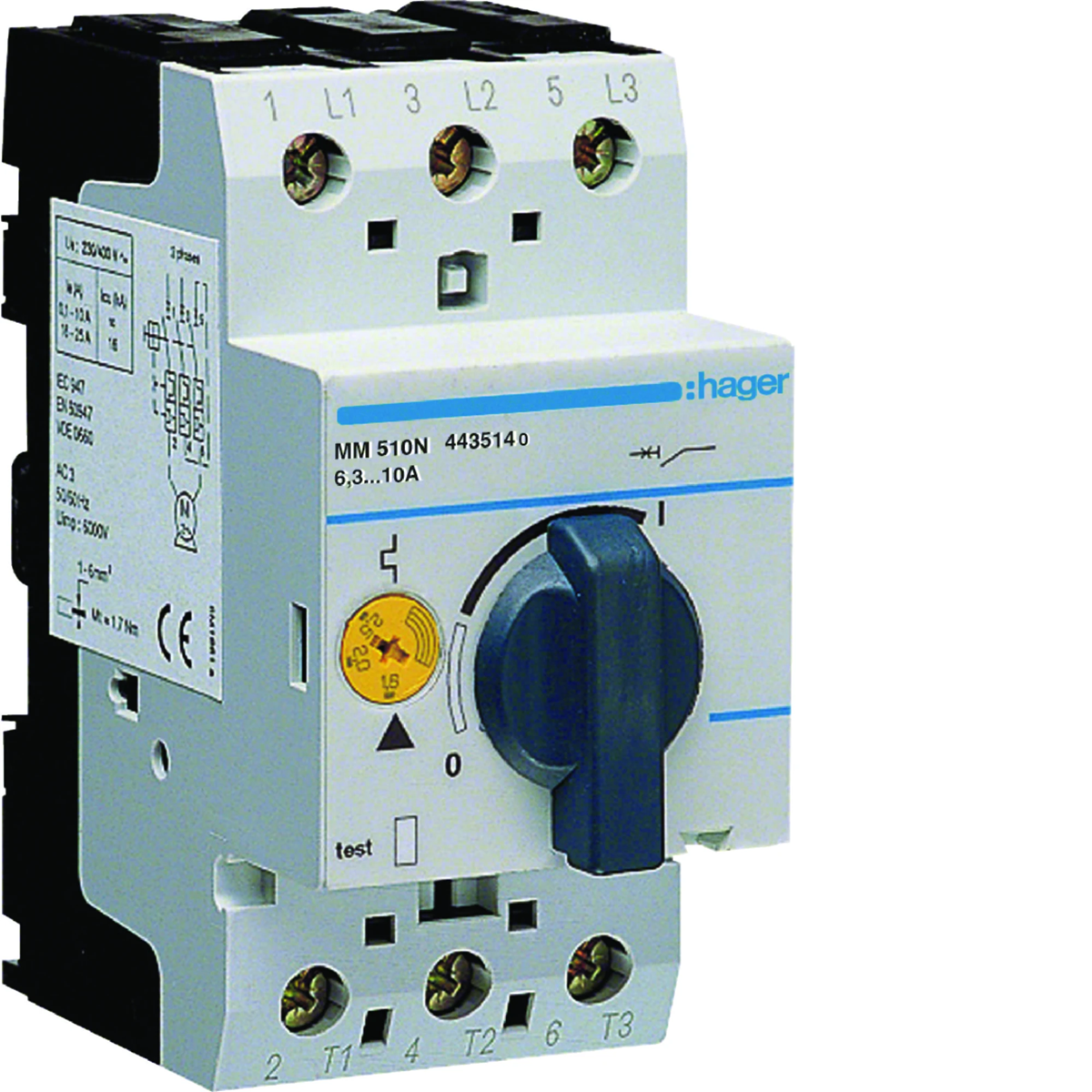

Motor circuit breaker 6 3-10A MM510N

local index:
ASN010HAGE
Catalog No:
MM510N
EAN code:
3250614435232
Manufacturer: HAGER
Depth [mm]: 70
Number of modules: 2.5
Number of poles: 3
Price:
41,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motor circuit breaker 6 3-10A

Technical data

  • Depth [mm]
    70
  • Number of poles
    3
  • Rated insulation voltage [V]
    690
  • Rated current [A]
    10
  • Width [mm]
    44
  • Rated short-circuit breaking capacity according to IEC 947.2 50 Hz
    100
  • PKWIU
    27.12.22.0
  • Number of modules
    2.5
  • Surge voltage [kV]
    6000
  • Setting current [A]
    11.2/14/16.8
  • Power dissipation [W]
    6
  • Height [mm]
    92
  • Number of modules
    2.5

Other technical data

  • Overload release current setting
    6.3 ... 10 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    10 A
  • Rated operation power at AC-3, 400 V
    4 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    124 ... 186 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    2.2 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    150 kA
  • Height
    140 mm
  • Depth
    75 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,148 0,300 14,805 378,320
Width (m) 0,044 0,080 0,315 0,800
Length (m) 0,092 0,060 0,225 1,050
Depth (m) 0,075 0,095 0,360 1,200
