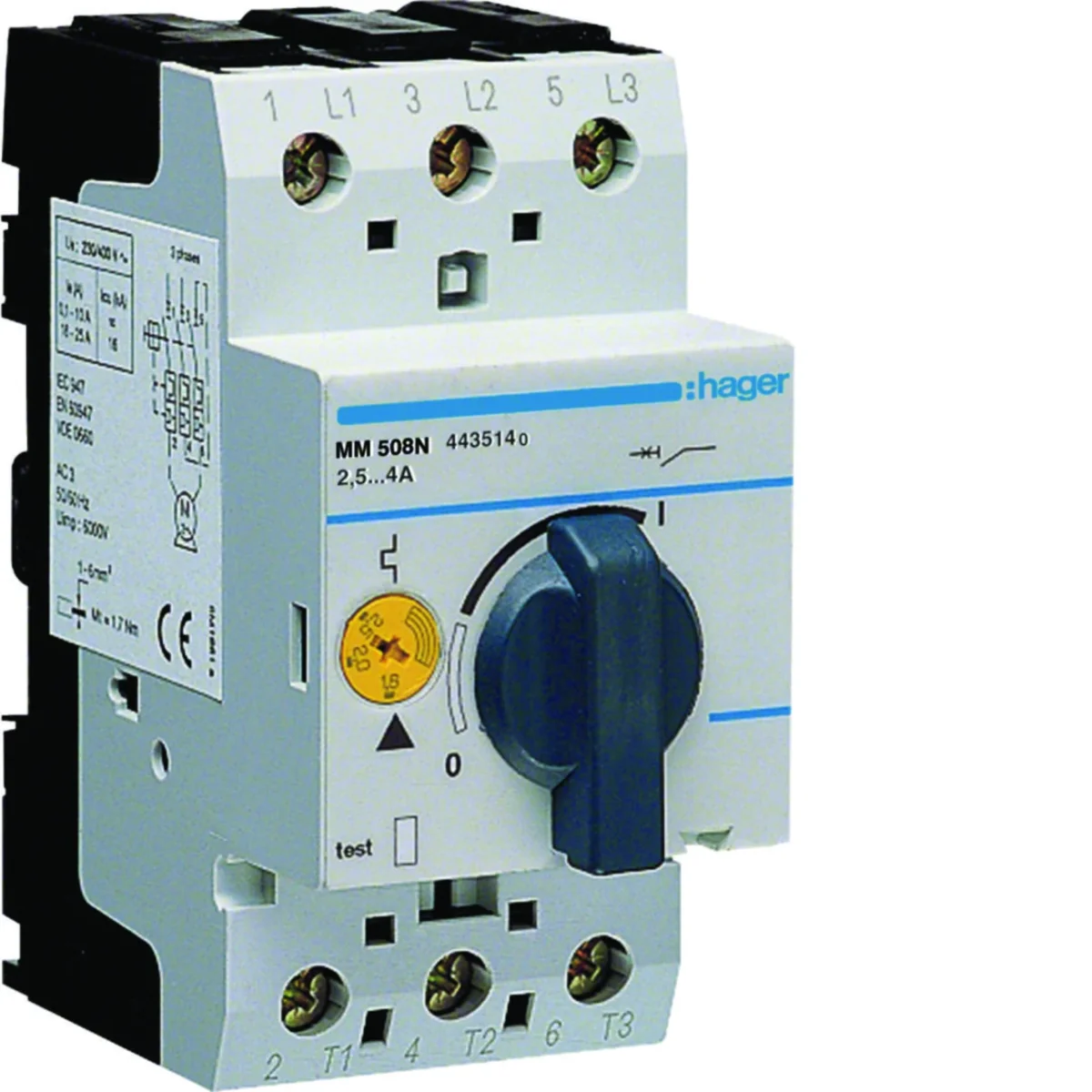

Name: Motor circuit breaker 2 5-4A
Brand: HAGER
SKU: ASN003HAGE
Price: 37.55 PLN

Motor Circuit Breakers
• for protection of 1- or 3-phase motors
• trigger characteristic K
• rated voltage 230 V AC
• rated current range from 0.1 A to 25 A
• with thermal and electromagnetic release
• thermo-electromagnetic circuit breaker with adjustable bimetallic relay
• additionally, an auxiliary contact and an undervoltage release can be added
• standard: VDE 0660 part 102
• cage clamps:
- wire up to 6 mm2
- strand up to 4 mm2

Depth [mm]

70
Number of poles

3
Rated insulation voltage [V]

690
Rated current [A]

4
Width [mm]

44
Rated short-circuit breaking capacity according to IEC 947.2 50 Hz

100
PKWIU

27.12.22.0

Number of modules

2.5
Surge voltage [kV]

6000
Setting current [A]

11.2/14/16.8
Power dissipation [W]

6
Height [mm]

92
Number of modules

2.5

Other technical data

Overload release current setting

2.5 ... 4 A
With thermal overload protection

Yes
Switch off technique

Thermomagnetic
Rated permanent current Iu

4 A
Rated operation power at AC-3, 400 V

1.5 kW
Type of control element

Turn button
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

45 mm

Adjustment range undelayed short-circuit release

49.6 ... 74.4 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

0.75 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

150 kA
Height

140 mm
Depth

75 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	48 pcs.	1152 pcs.
Weight (kg)	0,141	0,295	14,620	373,880
Width (m)	0,044	0,080	0,315	0,800
Length (m)	0,092	0,055	0,225	1,050
Depth (m)	0,075	0,095	0,365	1,200
