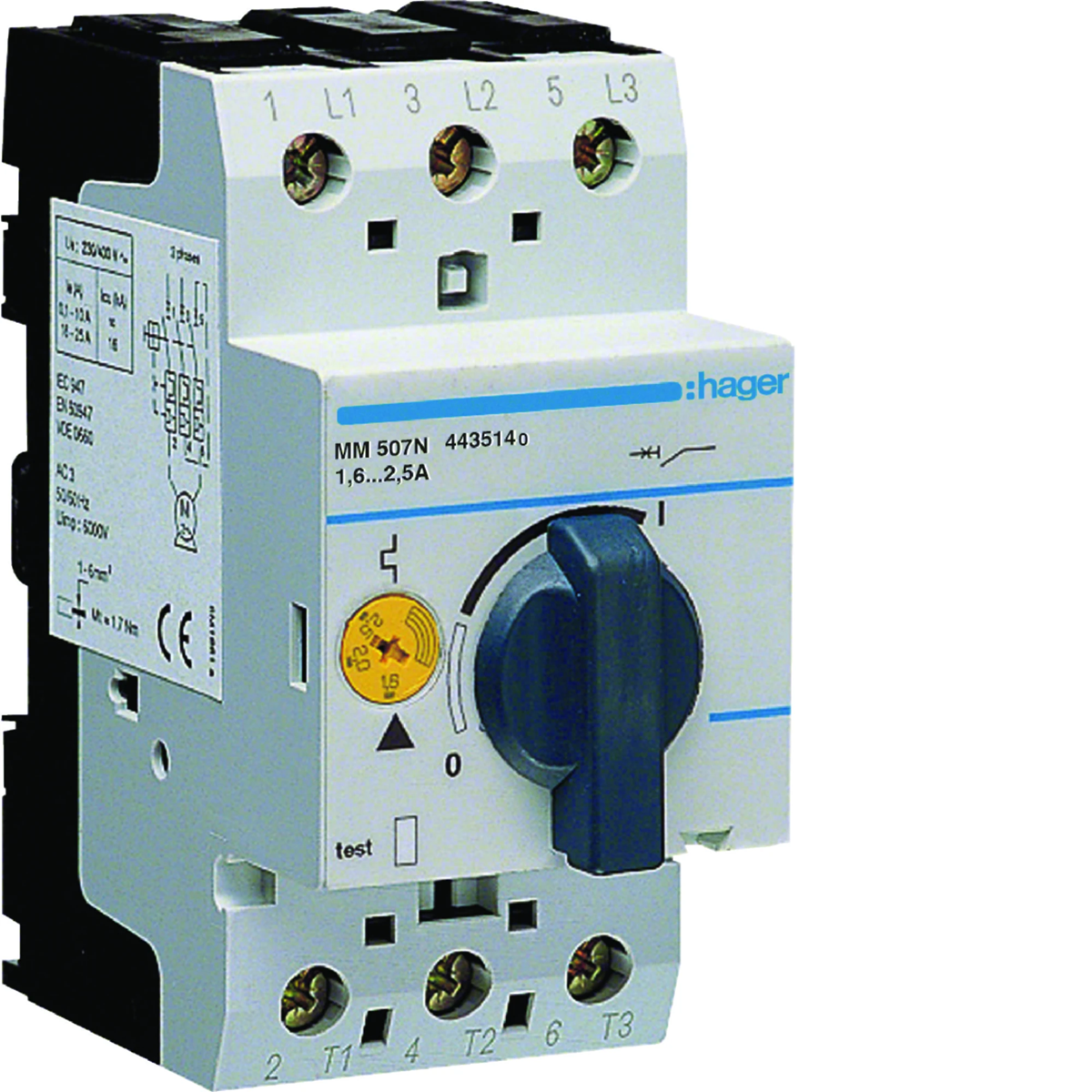

Motor circuit breaker 1.6-2.5A MM507N

Name: Motor circuit breaker 1.6-2.5A
Brand: HAGER
SKU: ASN004HAGE
Price: 36.91 PLN

local index:

ASN004HAGE

Catalog No:

MM507N

EAN code:

3250614435201

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 40/60

Depth [mm]: 70

Number of poles: 3

See full description

Price:

36,91 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

All power circuit breakers, power disconnectors, power switches and residual current blocks have one common feature - they are perfectly adapted to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.

Motor switches:
• for protection of 1- or 3-phase motors
• trigger characteristic K
• rated voltage 230V~
• rated current range from 0.1 A to 25 A
• with thermal and electromagnetic release
• thermo-electromagnetic circuit breaker with adjustable bimetallic relay
• additional auxiliary contact
and undervoltage release
• standard: VDE 0660 part 102
• cage clamps:
- wire up to 6 mm²
- strand up to 4 mm²

Technical data

Rated frequency [Hz]

40/60
Number of poles

3
Connection

With a screw
Rated current [A]

2.5
Width [mm]

45
Electrical endurance (number of cycles)

100000
Number of modules

2.5

Depth [mm]

70
Rated insulation voltage [V]

690
Surge voltage [V]

6000
power loss [W]

5.2
Height [mm]

90
Mechanical durability (number of cycles)

100000
PKWIU

27.12.22.0

Other technical data

Overload release current setting

1.6 ... 2.5 A
With thermal overload protection

Yes
Switch off technique

Thermomagnetic
Rated permanent current Iu

2.5 A
Rated operation power at AC-3, 400 V

0.75 kW
Type of control element

Turn button
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

45 mm

Adjustment range undelayed short-circuit release

31 ... 46.5 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

0.37 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

150 kA
Height

140 mm
Depth

75 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	48 pcs.	1152 pcs.
Weight (kg)	0,295	0,300	14,725	376,400
Width (m)	0,044	0,080	0,315	0,800
Length (m)	0,092	0,055	0,230	1,050
Depth (m)	0,075	0,095	0,365	1,200
