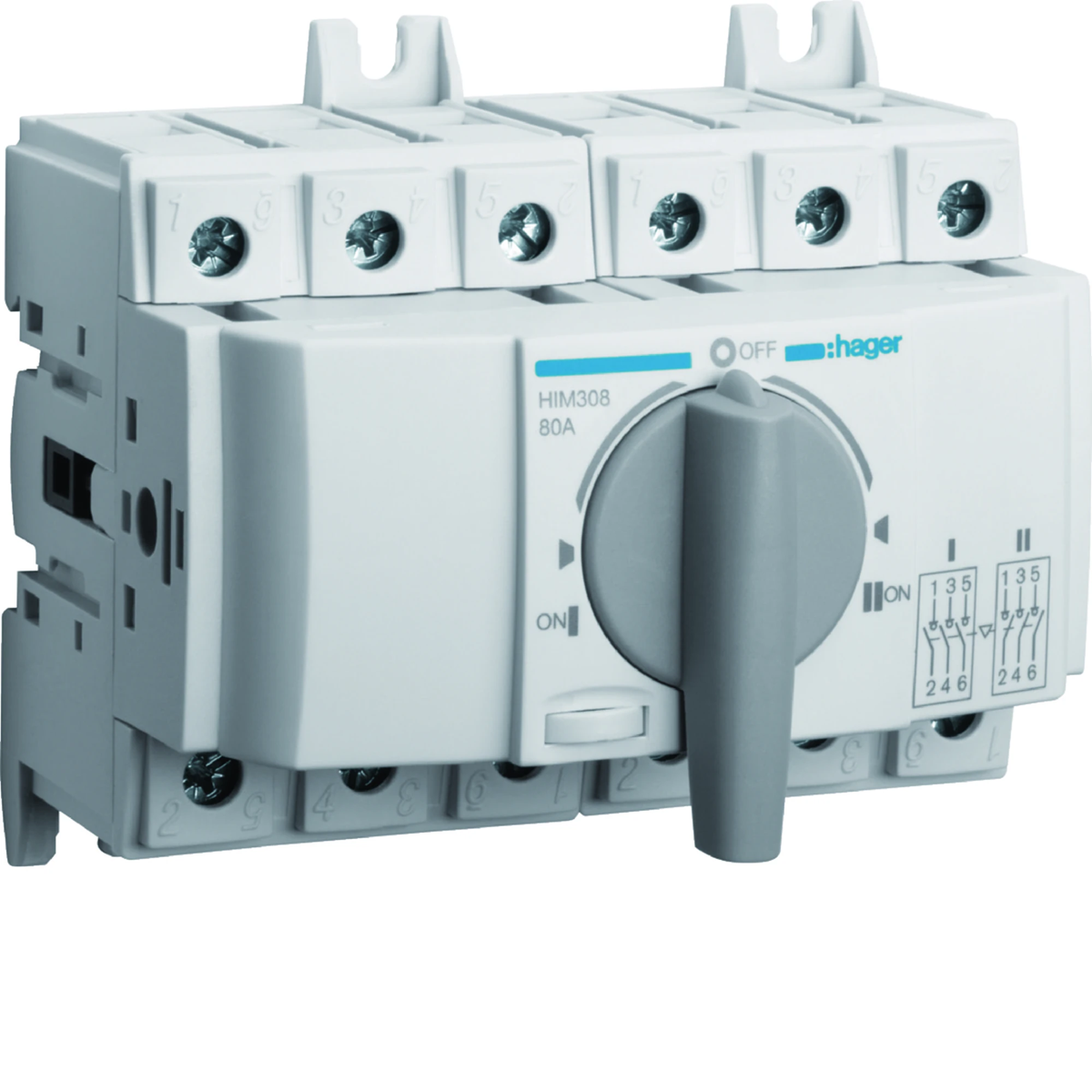

Modular power switch I-O-II, 3x80A HIM308
local index:
AKS017HAGE
Catalog No:
HIM308
EAN code:
3250613140533
Price:
212,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Modular power switch with rotary voltage
Technical data
-
Rated frequency [Hz]50/60
-
Rated current [A]80
-
Working temperature [°C]-20 to 65
-
AC rated voltage [V]380/415
-
Number of poles3
-
power loss [W]7.2
-
Connection typeWith a screw
-
PKWIU27.12.22.0
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu80 A
-
Rated permanent current at AC-21, 400 V80 A
-
Rated operation power at AC-23, 400 V36 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-23, 400 V80 A
-
Rated short-time withstand current lcw1.5 kA
-
Switching power at 400 V52 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementShort thumb-grip
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)Other
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 9 pcs. | 216 pcs. |
| Weight (kg) | 0,669 | 0,670 | 6,410 | 176,840 |
| Width (m) | 0,110 | 0,090 | 0,310 | 0,800 |
| Length (m) | 0,094 | 0,115 | 0,210 | 1,050 |
| Depth (m) | 0,105 | 0,165 | 0,361 | 1,200 |
