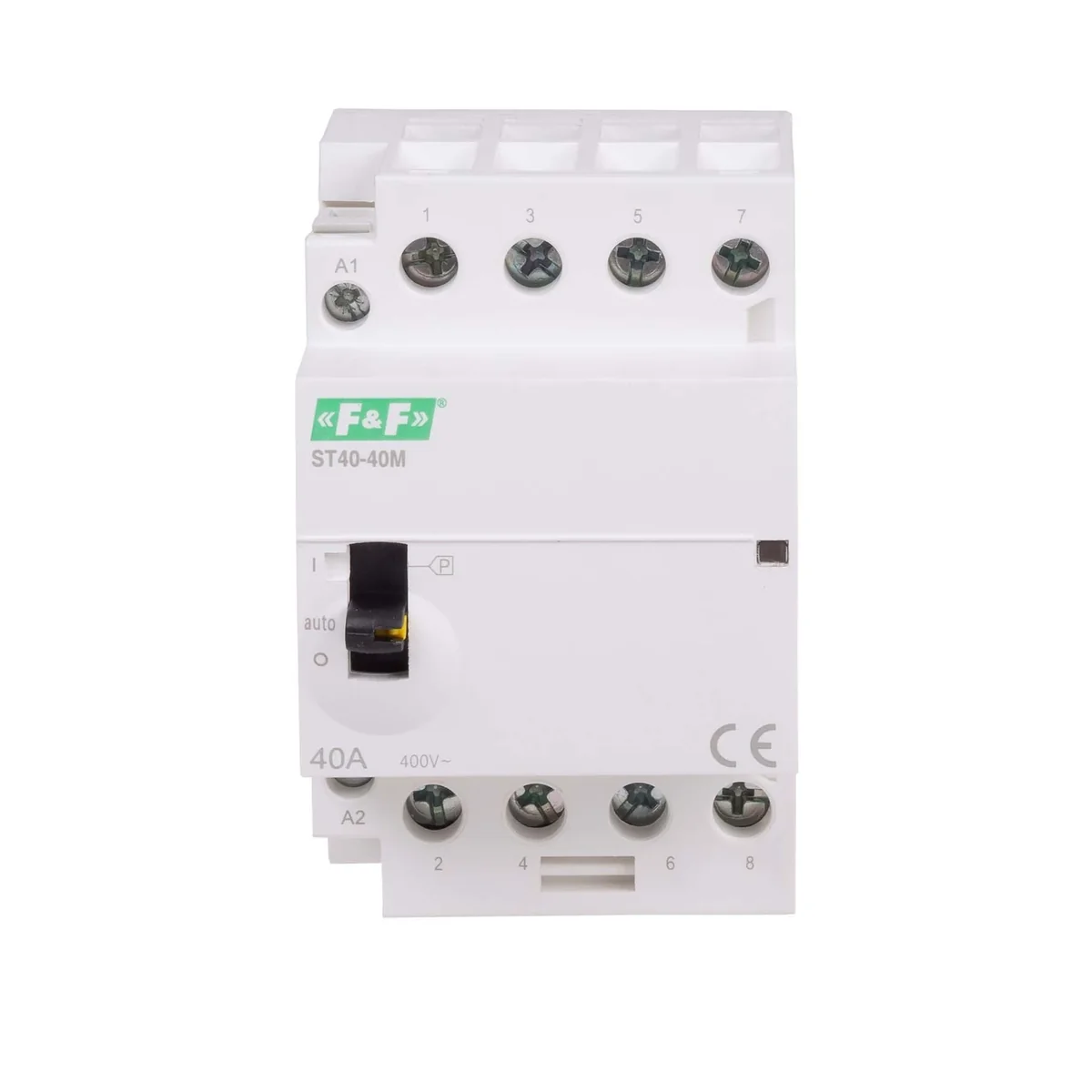

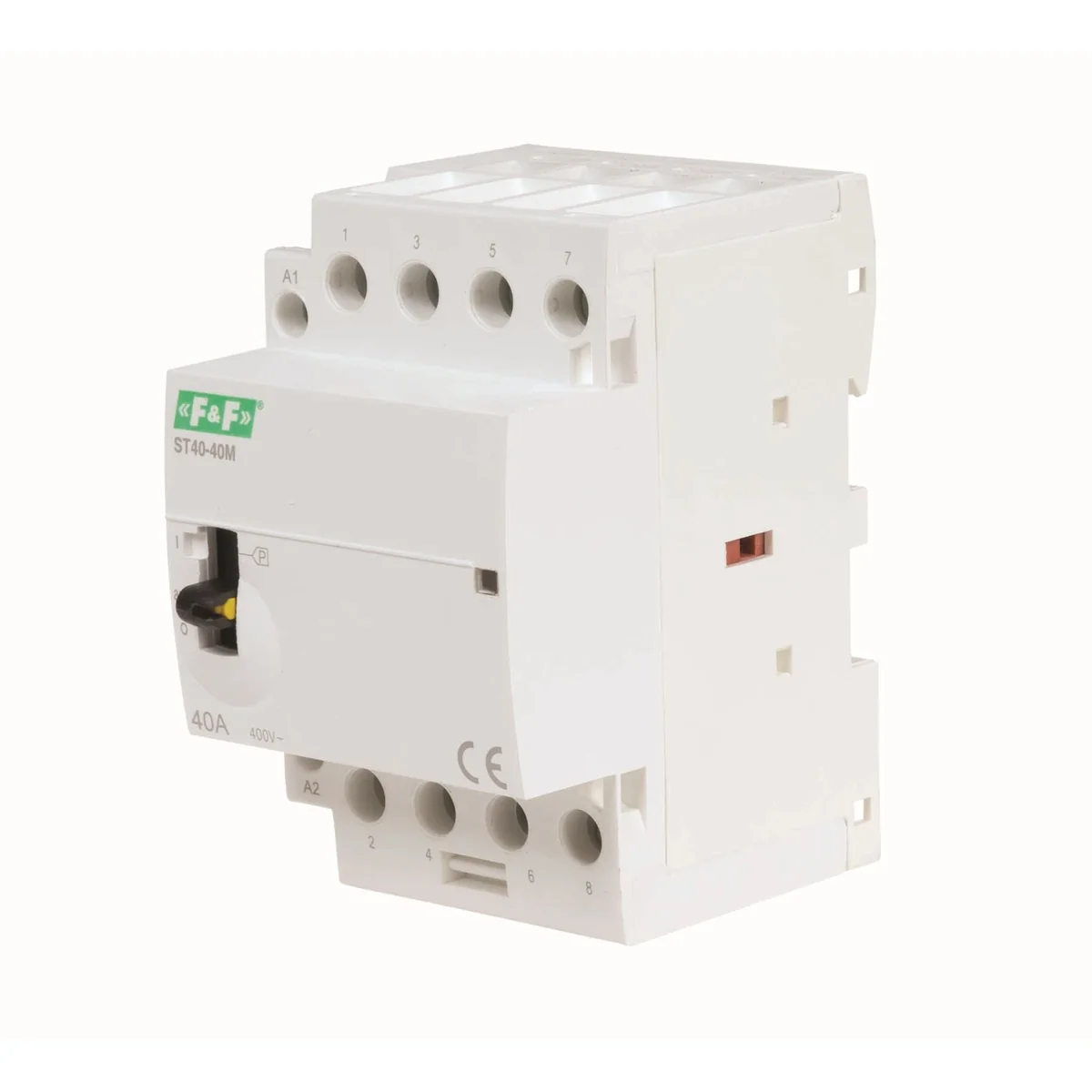

Modular contactor with manual control, rail mounting 40A, 4NO contacts ST40-40-M

Index local:
ATM020FIFQ
Numéro de catalogue:
ST40-40-M
Code EAN:
5902431674001
Producteur: F&F
Prix:
160,22 zł
gross / pcs.
(y compris la TVA 23%)
2 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Données techniques

Autres données techniques

  • Rated operating voltage
    185 ... 265 V
  • Utilization category according to EN IEC 60947-4-1
    AC-7a/AC-7b
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Slider for hand switch
    Yes
  • Built-in depth
    65 mm
  • With day/night function
    No
  • Rated operation current
    40 A
  • Rated excitation voltage
    185 ... 265 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Width in number of modular spacings
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20

Détails du fabricant

  • Producteur
    F&F Filipowski S.K.
  • Adresse
    95-200 Pabianice Konstantynowska 79/81 Polska
