MODULAR CONTACTOR SM 340 40A 230V 2NO WITH MANIPULATOR 412545

Name: MODULAR CONTACTOR SM 340 40A 230V 2NO WITH MANIPULATOR
Brand: LEGRAND
SKU: ATA018LEGR
Price: 288.69 PLN
Availability: BackOrder

local index:

ATA018LEGR

Catalog number:

412545

EAN code:

3245064125451

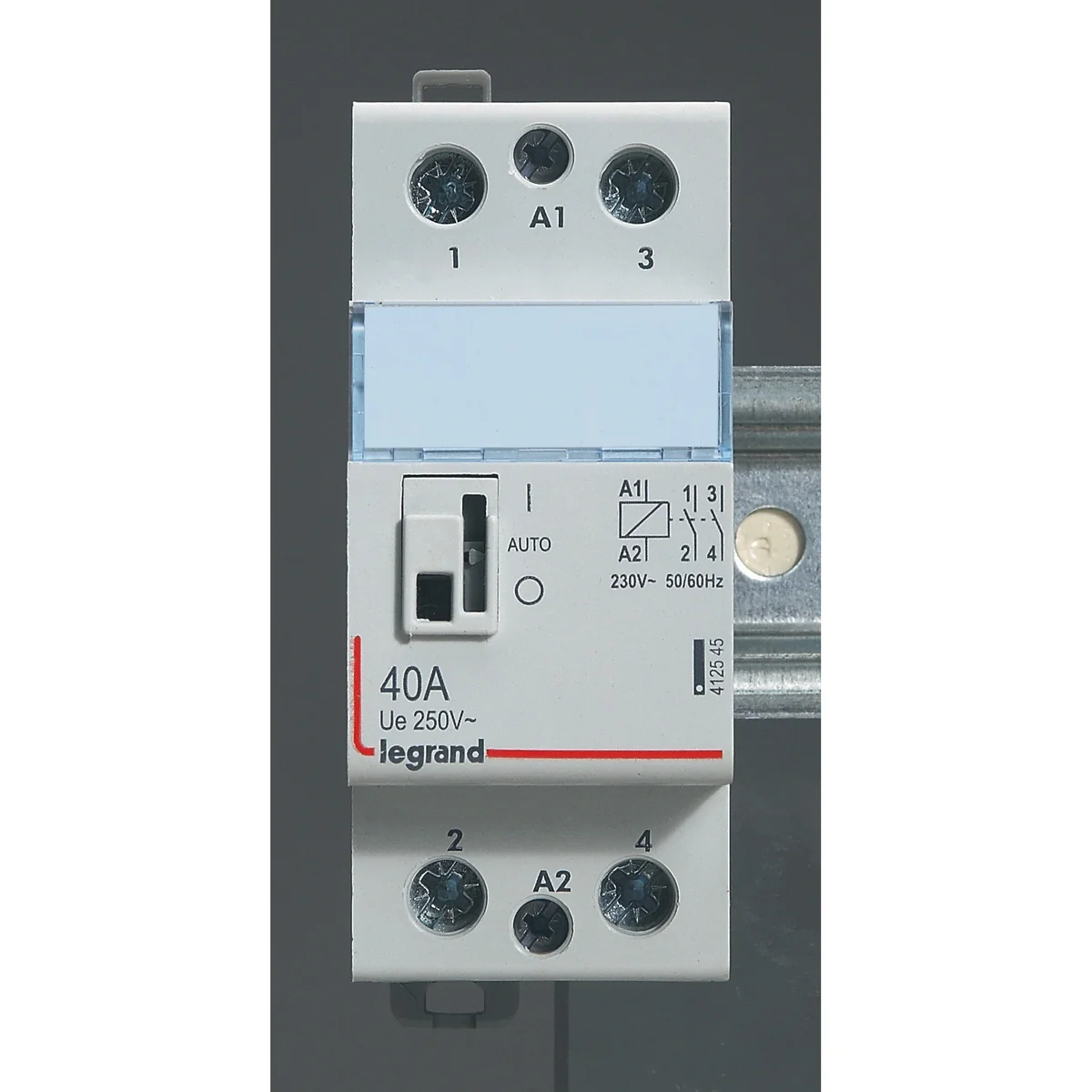

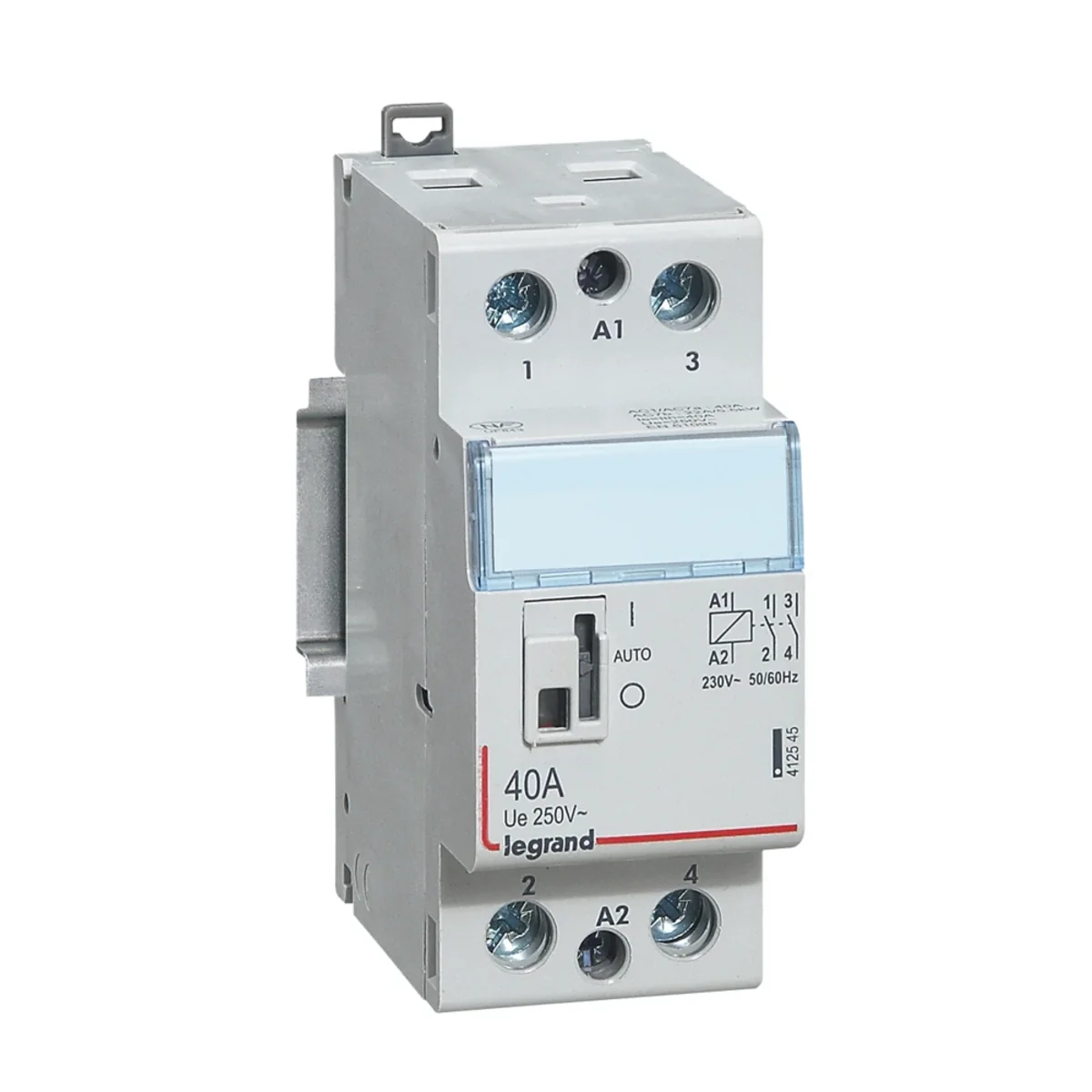

MODULAR CONTACTOR SM 340 40A 230V 2NO WITH MANIPULATOR

Click on the photo to enlarge

Manufacturer: LEGRAND

Price:

288,69 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Rated operating voltage

250 ... 250 V
Rated excitation voltage

195 ... 253 V
Voltage type (excitation voltage)

AC
Number of contacts as normally closed contact

0
Max. load fluorescent lamp

3100 VA
Max. load fluorescent lamp (parallel compensated)

1400 VA
Width in number of modular spacings

2
Additional equipment possible

Yes

Rated operation current

40 A
Voltage type (operating voltage)

AC
Number of contacts as normally open contact

2
Max. incandescent lamp load

5000 W
Max. load fluorescent lamp (Duo circuit)

3400 VA
Slider for hand switch

Yes
Built-in depth

44 mm
Degree of protection (IP)

IP2X

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Pudełko	Karton	Paleta
Quantity	1 pcs.	24 pcs.	432 pcs.
Weight (kg)	0,250	6,324	113,832
Volume (m3)	0,000	0,012	0,432
Width (m)	0,041	0,200	1,200
Length (m)	0,089	0,197	0,360
Depth (m)	0,101	0,296	1,000
