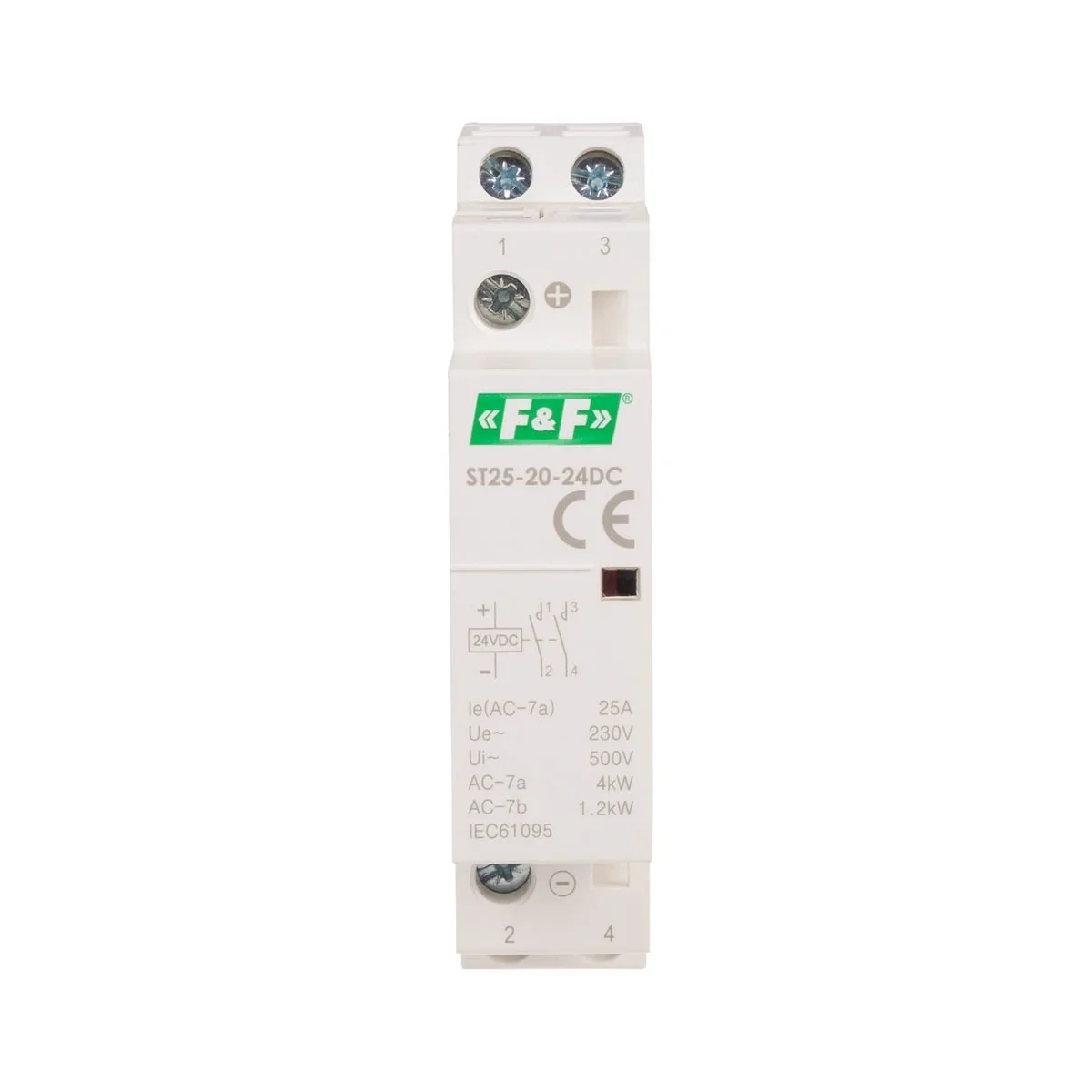

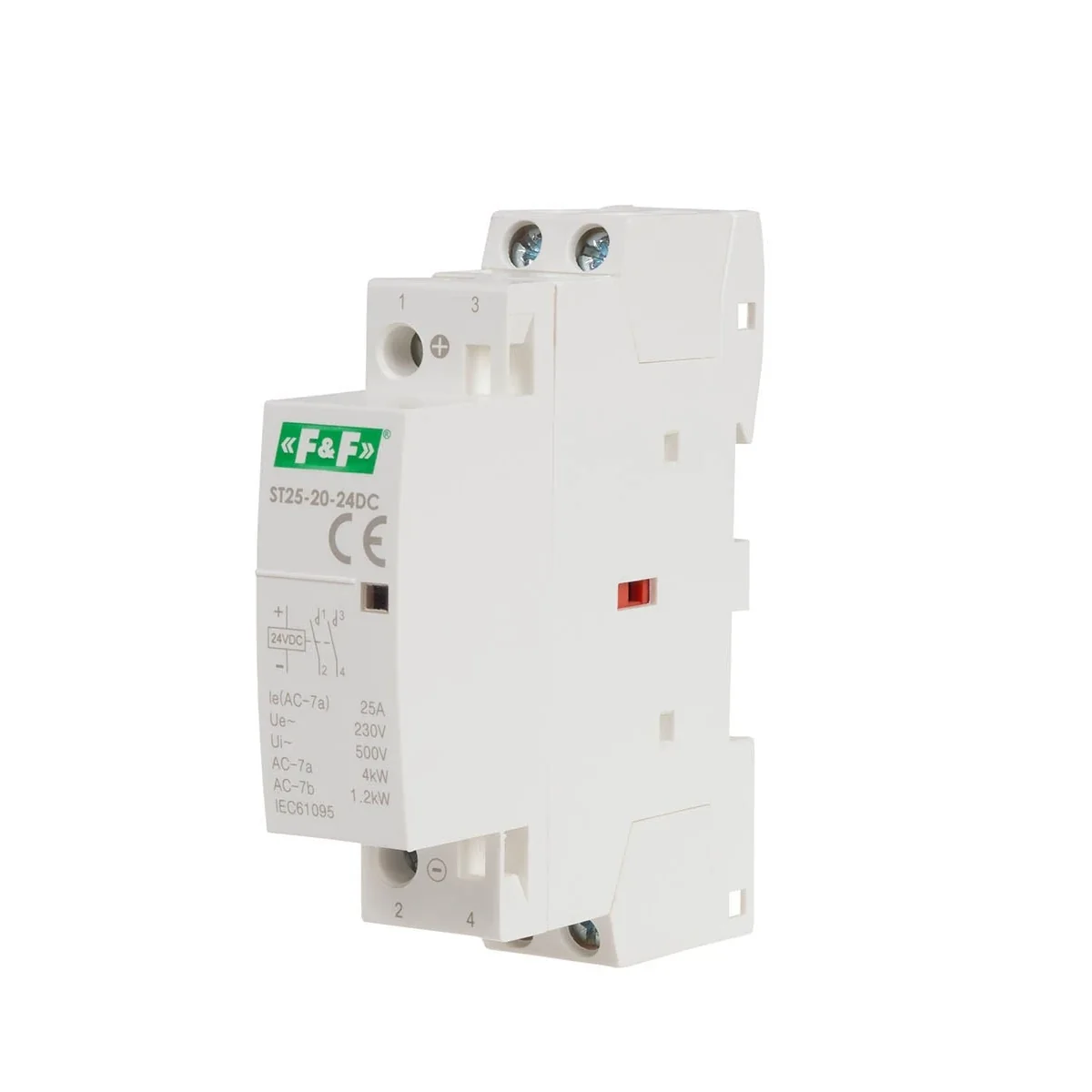

Modular contactor, rail mounting, 2xNO contacts, 25A, 24V DC ST25-20-24DC
local index:
ATM017FIFQ
Catalog number:
ST25-20-24DC
EAN code:
5902431672724
Manufacturer:
F&F
Price:
105,53 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
-
PKWIU27.12.24.0
Other technical data
-
Rated operating voltage18 ... 27 V
-
Utilization category according to EN IEC 60947-4-1AC-7a/AC-7b
-
Voltage type (operating voltage)DC
-
Number of contacts as normally open contact2
-
Max. incandescent lamp load0 W
-
Max. load fluorescent lamp (Duo circuit)0 VA
-
Slider for hand switchNo
-
Built-in depth65 mm
-
With day/night functionNo
-
Rated operation current25 A
-
Rated excitation voltage18 ... 27 V
-
Voltage type (excitation voltage)DC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp0 VA
-
Max. load fluorescent lamp (parallel compensated)0 VA
-
Width in number of modular spacings1
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
