Electrical apparatus
contactors
AC contactors

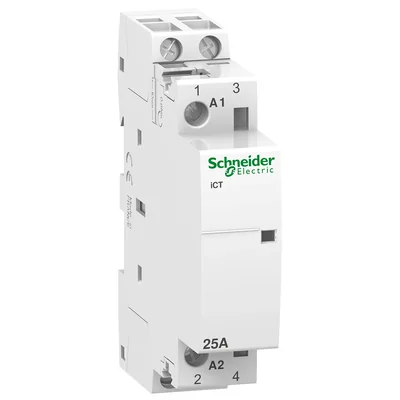

Modular Contactor iCT60-25-20-127 25A 2NO 60Hz 127VAC A9C20432
local index:
ATA215SCHN
Catalog No:
A9C20432
EAN code:
3606480374876
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]:
127
See full description
Price:
41,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Modular Contactor iCT60-25-20-127 25A 2NO 60Hz 127VAC
Technical data
AC control voltage [V]
127
PKWIU
27.12.24.0
Other technical data
Rated operating voltage
250 ... 250 V
Kategoria użytkowania
7
Voltage type (operating voltage)
AC
Number of contacts as normally open contact
2
Max. incandescent lamp load
2850 W
Max. load fluorescent lamp (Duo circuit)
2400 VA
Slider for hand switch
No
Additional equipment possible
Yes
Rated operation current
25 A
Rated excitation voltage
127 ... 127 V
Voltage type (excitation voltage)
AC
Number of contacts as normally closed contact
0
Max. load fluorescent lamp
1200 VA
Max. load fluorescent lamp (parallel compensated)
1200 VA
Built-in depth
43.5 mm
Degree of protection (IP)
IP20
Files to download
PEP ecopassport SCHN-00144-V02.01-EN_1.pdf
HD_EU declaration of conformity - Acti9 iCT - FD16022301C.pdf
