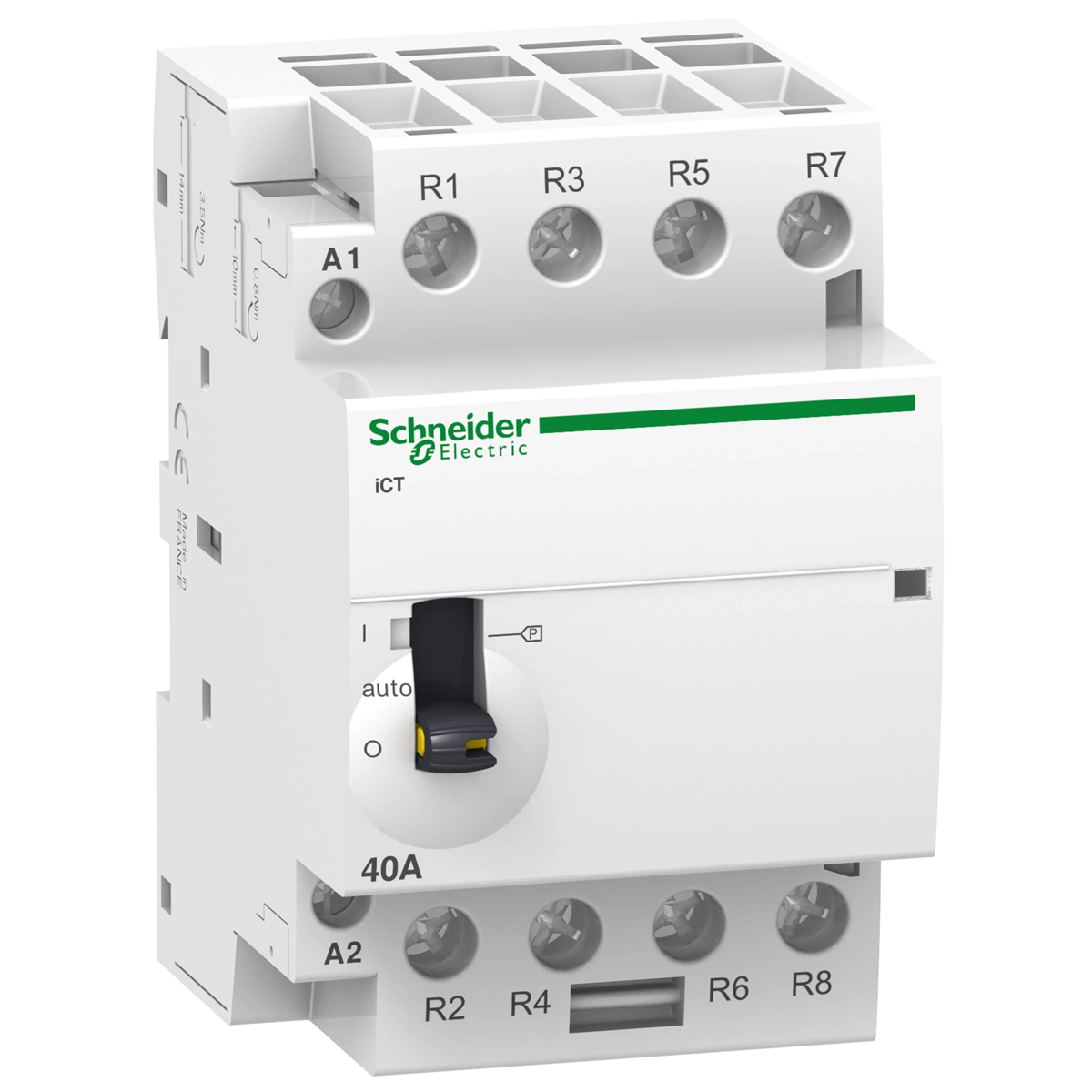

Modular Contactor iCT50r63-40-230 63A 4NO 50/60Hz 220/240VAC A9C21864

local index:
ATA208SCHN
Catalog No:
A9C21864
EAN code:
3606480096891
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 220/240
Price:
129,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular Contactor iCT50r63-40-230 63A 4NO 50/60Hz 220/240VAC

Technical data

  • AC control voltage [V]
    220/240
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    22500 W
  • Max. load fluorescent lamp (Duo circuit)
    17700 VA
  • Slider for hand switch
    Yes
  • Additional equipment possible
    Yes
  • Rated operation current
    63 A
  • Rated excitation voltage
    220 ... 240 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    11550 VA
  • Max. load fluorescent lamp (parallel compensated)
    10500 VA
  • Built-in depth
    43.5 mm
  • Degree of protection (IP)
    IP20
