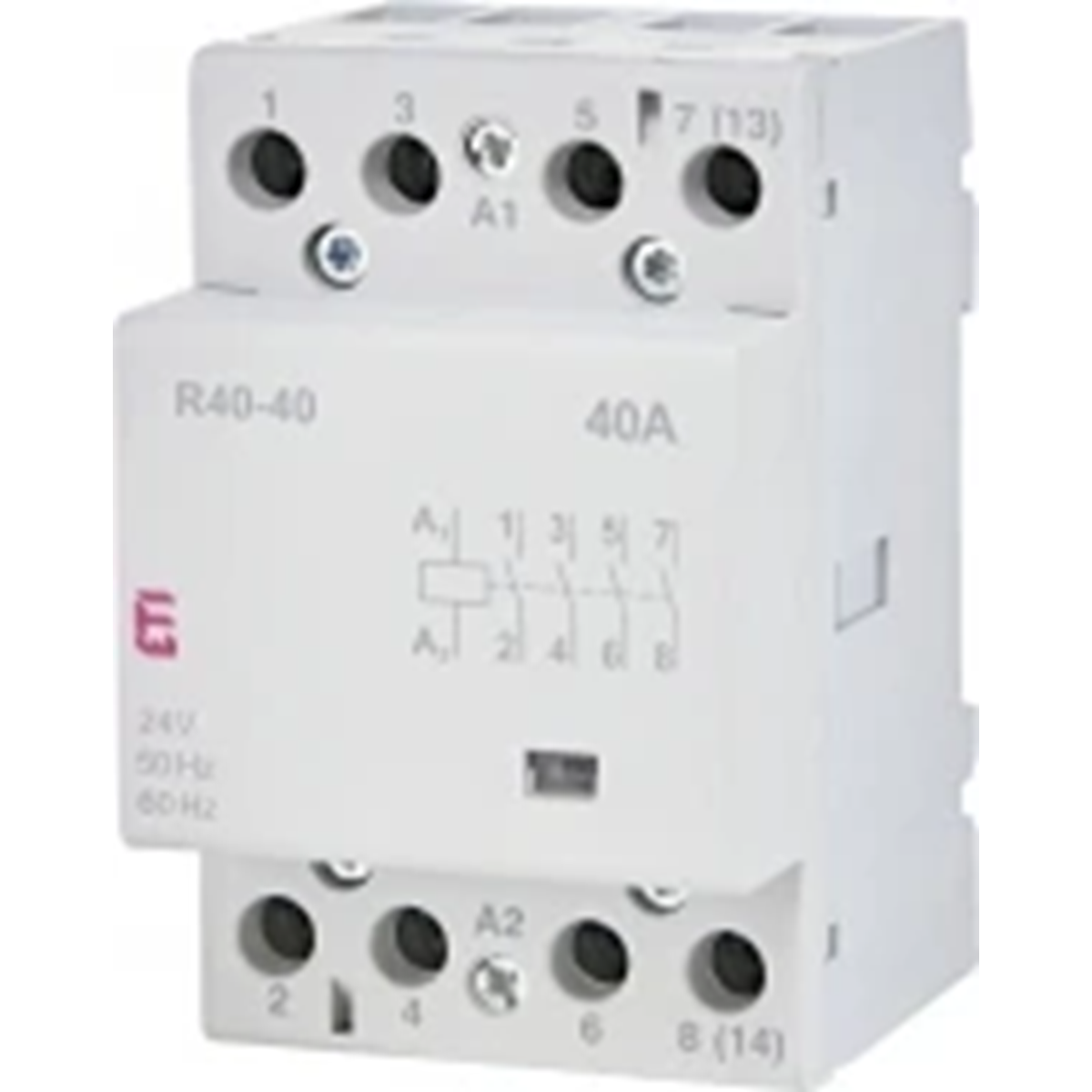

Modular contactor 40A 4 NO contacts (3 mod. 4 poles) R 40-40 24V 002463411
local index:
ATA041ETIP
Catalog No:
002463411
EAN code:
5904722903548
Price:
97,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Control of lighting, heating, ventilation, etc. power supply systems.
Advantages:
- low-current coil control
- design for 24V AC and 230V AC,
- large number of variants (contacts 4-0, 1-3, 2-2, 3-1, 0-4), < li> high switching frequency (600/300 cycles/h),
- short response time to the control impulse,
- high durability < li> connection terminals can be sealed,
- quiet operation as standard for R40, R63.
Technical data
-
Number of contacts4NO 0NC
-
Rated current [A]40
-
Coil voltage [V]24
-
PKWIU27.12.23.0
Other technical data
-
Rated operating voltage230 ... 400 V
-
Rated excitation voltage24 ... 24 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Built-in depth60 mm
-
Degree of protection (IP)IP20
-
Rated operation current40 A
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact4
-
Slider for hand switchNo
-
Additional equipment possibleYes
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 4 pcs. | 40 pcs. |
| Weight (kg) | 1,260 | - |
| Volume (m3) | 0,001 | - |
| Width (m) | 0,216 | - |
| Length (m) | 0,090 | - |
| Depth (m) | 0,073 | - |
