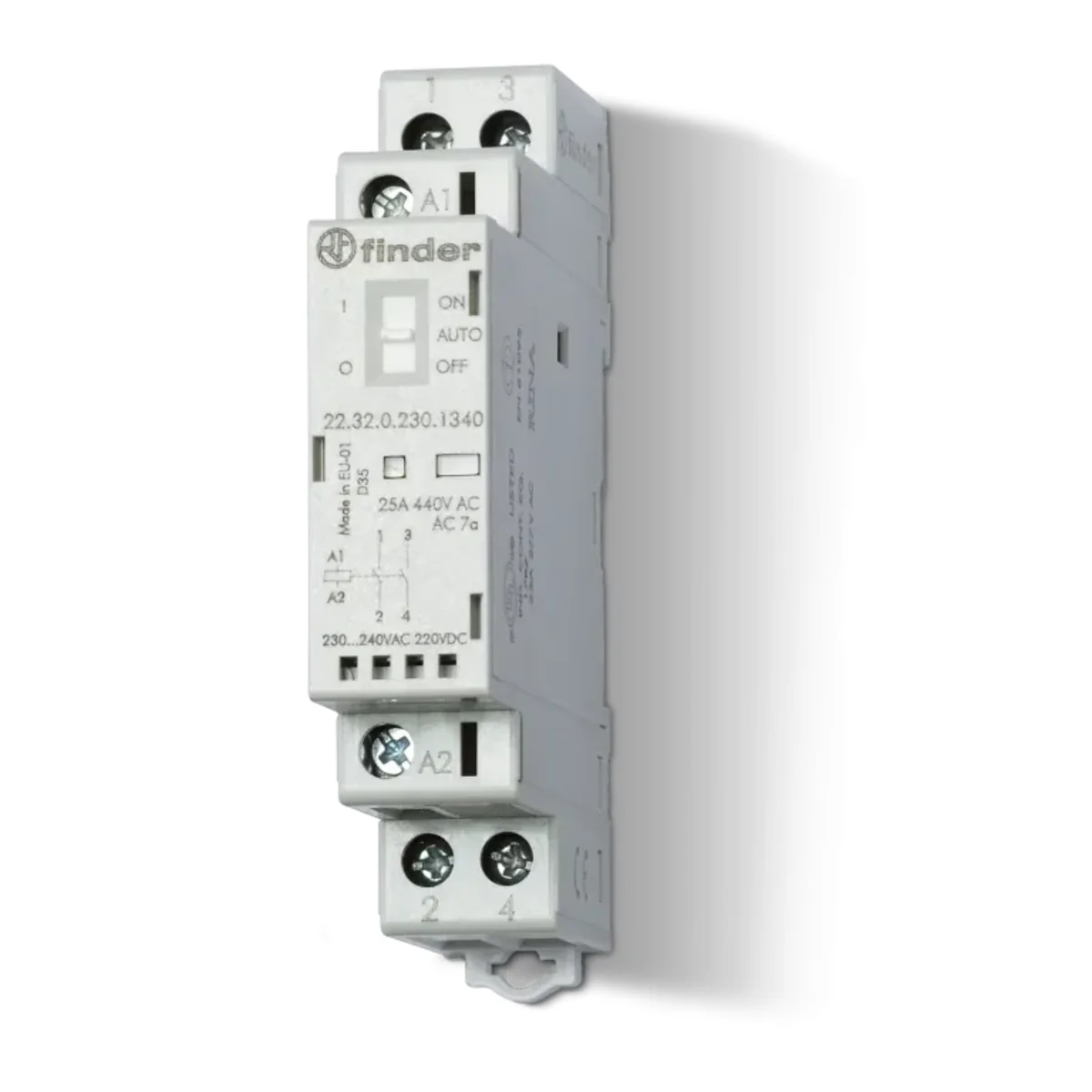

Modular contactor 2P 25A 24V 17.5mm 223200244320

local index:
ATM001FIND
Catalog No:
223200244320
EAN code:
8012823355238
Manufacturer: FINDER
Length [mm]: 88.8
Installation: On the TH-35 rail
Coil voltage [V]: 24
Price:
28,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 3 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Advantages:

  • NO contact with break ≥ 3 mm, double contact gap,
  • Compliant with the PN-EN 61095: 2009 standard,
  • Possibility of continuous operation for the coil and contacts
  • For mounting on a DIN rail,
  • AC/DC power supply (with protective varistor),
  • Safe separation (increased insulation) between the coil and contacts,
  • Operating temperature from -20 to +50  °C.

Technical data

  • Length [mm]
    88.8
  • Coil voltage [V]
    24
  • Level of security
    IP20
  • Number of modules
    1
  • Installation
    On the TH-35 rail
  • Rated current [A]
    25
  • Width [mm]
    17.5

Other technical data

  • Rated operating voltage
    250 ... 440 V
  • Rated excitation voltage
    24 ... 24 V
  • Voltage type (excitation voltage)
    AC/DC
  • Liczba styków rozwiernych
    0
  • Max. load fluorescent lamp
    800 VA
  • Max. load fluorescent lamp (parallel compensated)
    500 VA
  • Liczba modułów
    1
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Voltage type (operating voltage)
    AC
  • Liczba styków zwiernych
    2
  • Max. incandescent lamp load
    2000 W
  • Max. load fluorescent lamp (Duo circuit)
    800 VA
  • Slider for hand switch
    Yes
  • Built-in depth
    60.8 mm
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,109 0,594
Width (m) 0,032 0,165
Length (m) 0,070 0,075
Depth (m) 0,095 0,105
