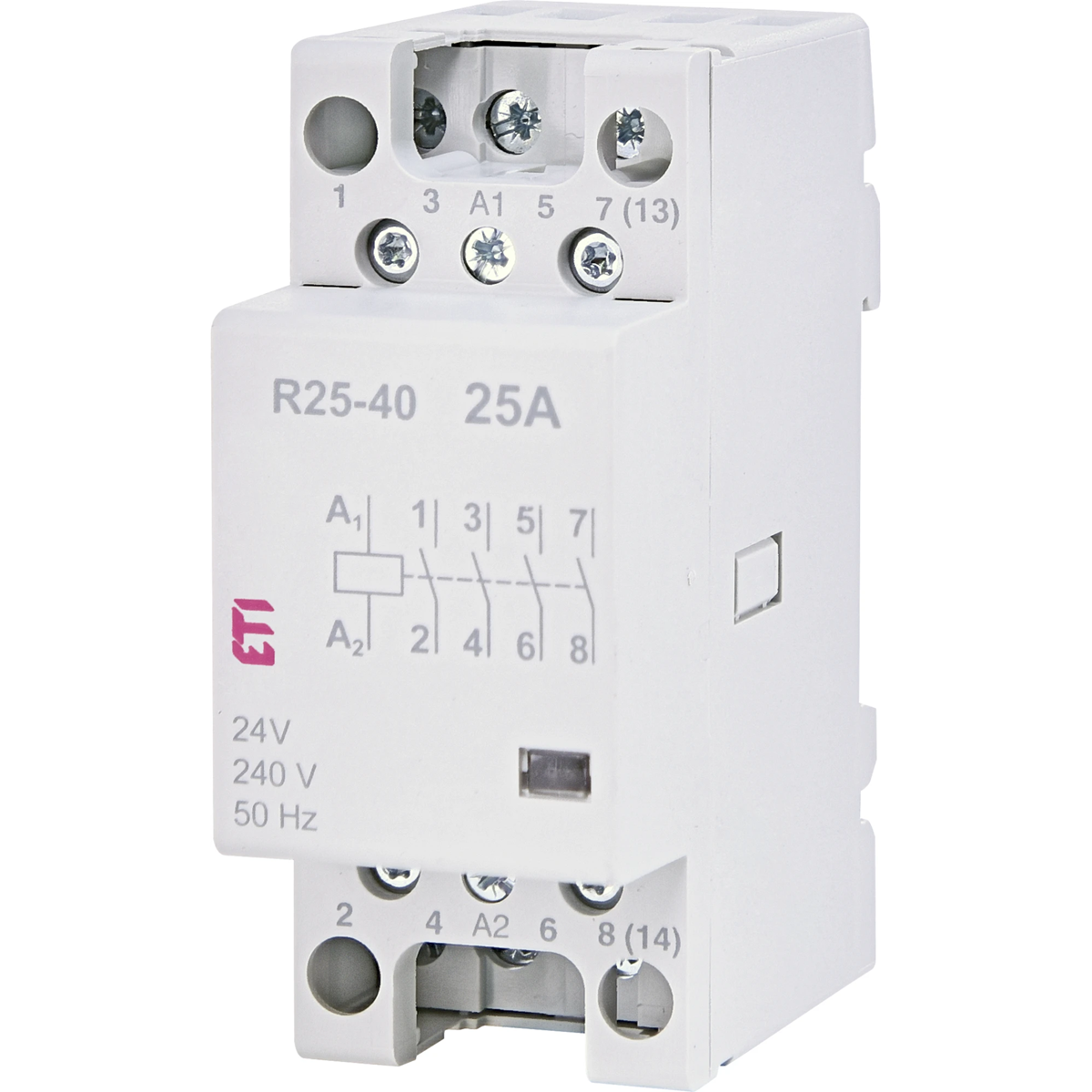

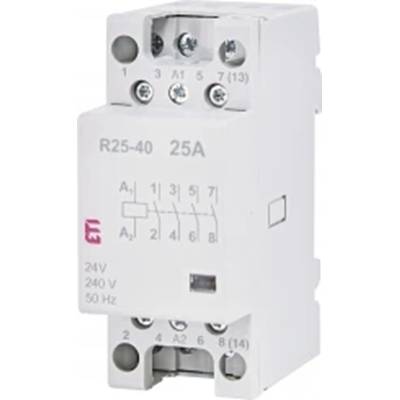

Modular contactor 25A 4 NO contacts (2 mod. 4 poles) R 25-40 24V 002462311

local index:
ATA034ETIP
Catalog No:
002462311
EAN code:
5904722903449
Manufacturer: ETI POLAM
Number of contacts: 4NO 0NC
Coil voltage [V]: 24
Rated current [A]: 25
Price:
46,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

 Control of lighting, heating, ventilation, etc. power supply systems.

Advantages:

  •  low-current coil control
  •  design for 24V AC and 230V AC,
  •  large number of variants (contacts 4-0, 1-3, 2-2, 3-1, 0-4),
  • < li> high switching frequency (600/300 cycles/h),
  •  short response time to the control impulse,
  •  high durability
  • < li> connection terminals can be sealed,
  •  quiet operation as standard for R40, R63.

Technical data

  • Number of contacts
    4NO 0NC
  • Rated current [A]
    25
  • Number of modules
    2
  • Coil voltage [V]
    24
  • Level of security
    IP20
  • PKWIU
    27.12.23.0

Other technical data

  • Rated operating voltage
    230 ... 400 V
  • Rated excitation voltage
    24 ... 24 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP20
  • Rated operation current
    25 A
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 6 pcs. 60 pcs.
Weight (kg) 1,560 -
Volume (m3) 0,001 -
Width (m) 0,216 -
Length (m) 0,090 -
Depth (m) 0,073 -
