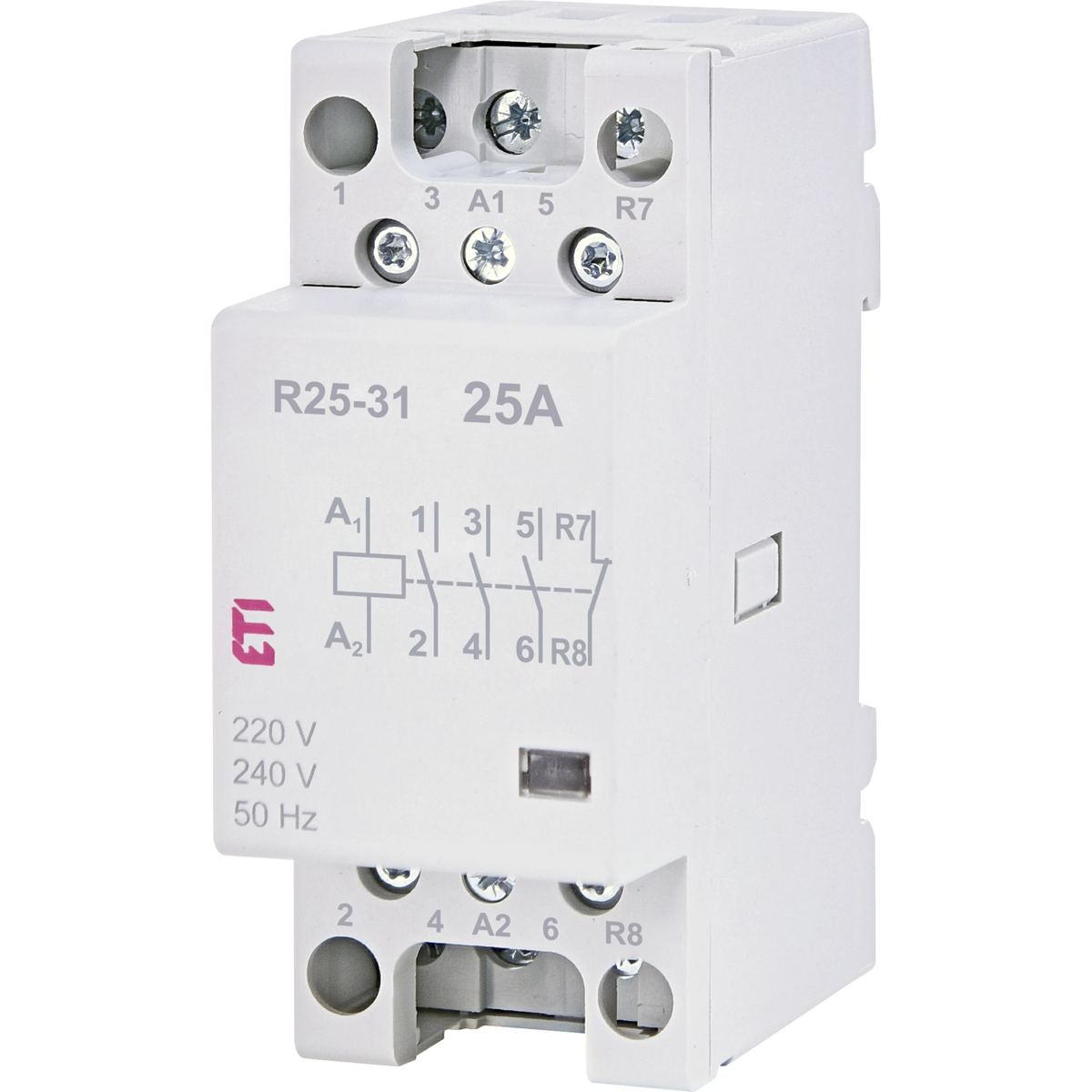

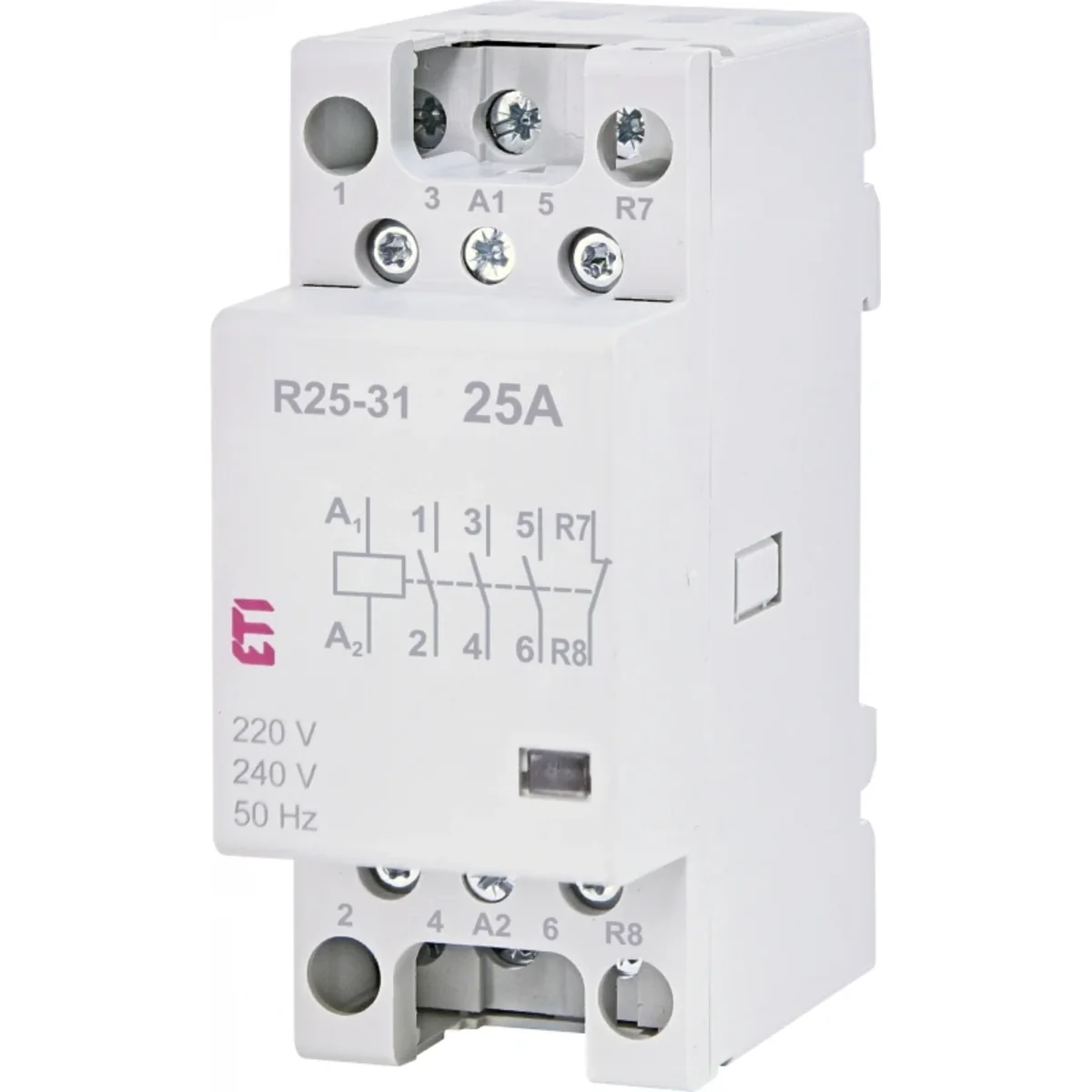

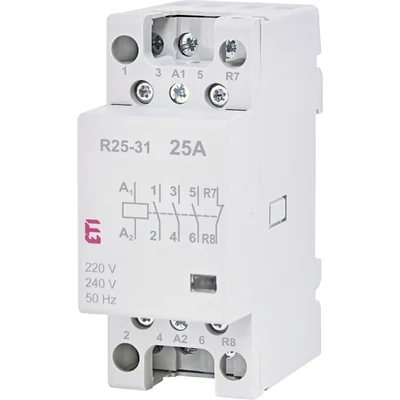

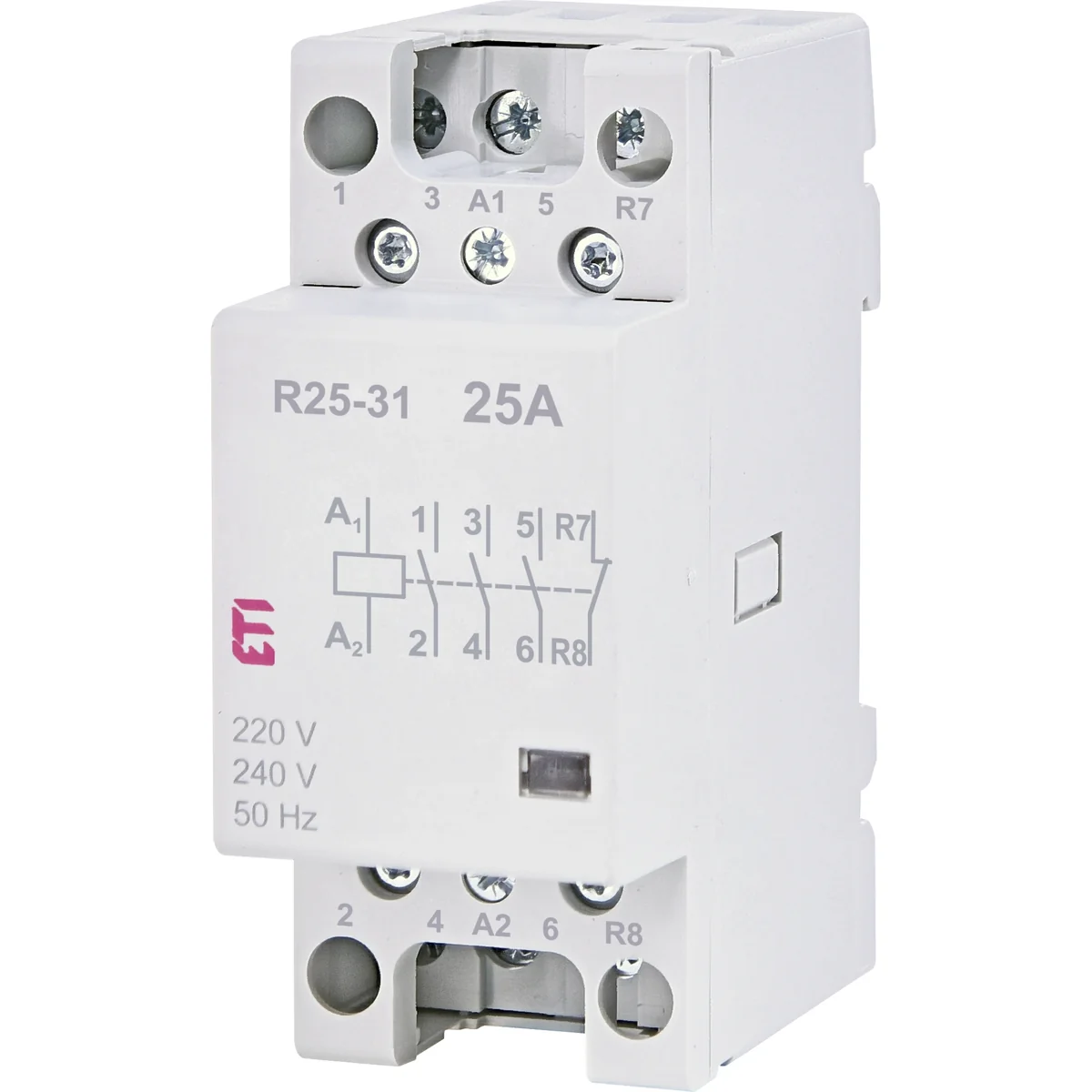

Modular contactor 25A 3 NO and 1 NC (2 mod. 4 pole) R 25-31 230 002462320

local index:
ATA068ETIP
Catalog No:
002462320
EAN code:
5904722903456
Manufacturer: ETI POLAM
Maximum switching capacity for bulbs [W]: 3500
Operating voltage [V]: 400
Rated voltage [V]: 400
Price:
39,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

 Control of lighting, heating, ventilation, etc. power supply systems.

Advantages:

  •  low-current coil control
  •  design for 24V AC and 230V AC,
  •  large number of variants (contacts 4-0, 1-3, 2-2, 3-1, 0-4),
  • < li> high switching frequency (600/300 cycles/h),
  •  short reaction time to the control impulse,
  •  high durability
  • < li> connection terminals can be sealed,
  •  quiet operation as standard for R40, R63.

Technical data

  • Maximum switching capacity for bulbs [W]
    3500
  • Rated voltage [V]
    400
  • Maximum switching capacity for fluorescent lamps (DUO compensation) [VA]
    5280
  • Number of modules
    3
  • PKWIU
    27.12.23.0
  • Operating voltage [V]
    400
  • Rated operational current [A]
    25
  • Maximum switching capacity for fluorescent lamps [VA]
    2310
  • Rated operating voltage from [V]
    230

Other technical data

  • Rated operating voltage
    230 ... 400 V
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    1
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP20
  • Rated operation current
    25 A
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    3
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 6 pcs. 60 pcs.
Weight (kg) 1,260 -
Volume (m3) 0,001 -
Width (m) 0,216 -
Length (m) 0,090 -
Depth (m) 0,073 -
