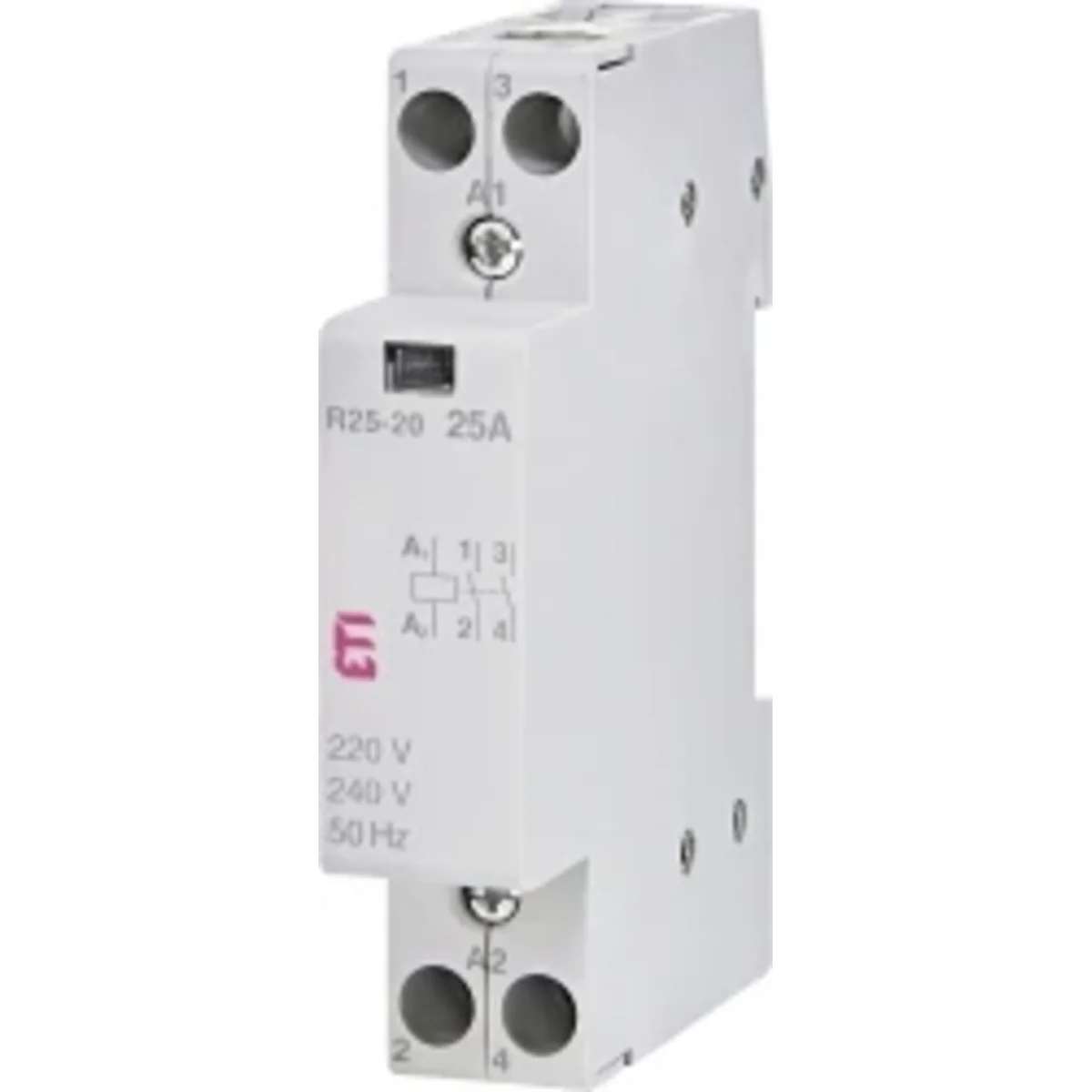

Modular contactor 25A 2 NO contacts (1 mod. 2 pole) R 25-20 230 002463502
local index:
ATA056ETIP
Catalog No:
002463502
EAN code:
5904722988569
Manufacturer:
ETI POLAM
Rated voltage [V]: 230
Rated current [A]: 25
Working temperature [°C]: from -40 to +60
Price:
25,66 €
gross / pcs.
(including VAT 23%)
197,38 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Control of lighting, heating, ventilation, etc. power supply systems.
Advantages:
- low-current coil control
- design for 24V AC and 230V AC,
- large number of variants (contacts 4-0, 1-3, 2-2, 3-1, 0-4), < li> high switching frequency (600/300 cycles/h),
- short response time to the control impulse,
- high durability < li> connection terminals can be sealed,
- quiet operation as standard for R40, R63.
Technical data
-
Rated voltage [V]230
-
Working temperature [°C]from -40 to +60
-
Compliance with standardsIEC 60947-4-1
-
Rated current [A]25
-
Weight [g]130
-
PKWIU27.12.23.0
Other technical data
-
Rated operating voltage230 ... 400 V
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Built-in depth60 mm
-
Degree of protection (IP)IP20
-
Rated operation current25 A
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact2
-
Slider for hand switchNo
-
Additional equipment possibleNo
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 12 pcs. | 120 pcs. |
| Weight (kg) | 1,560 | - |
| Volume (m3) | 0,001 | - |
| Width (m) | 0,216 | - |
| Length (m) | 0,090 | - |
| Depth (m) | 0,073 | - |
