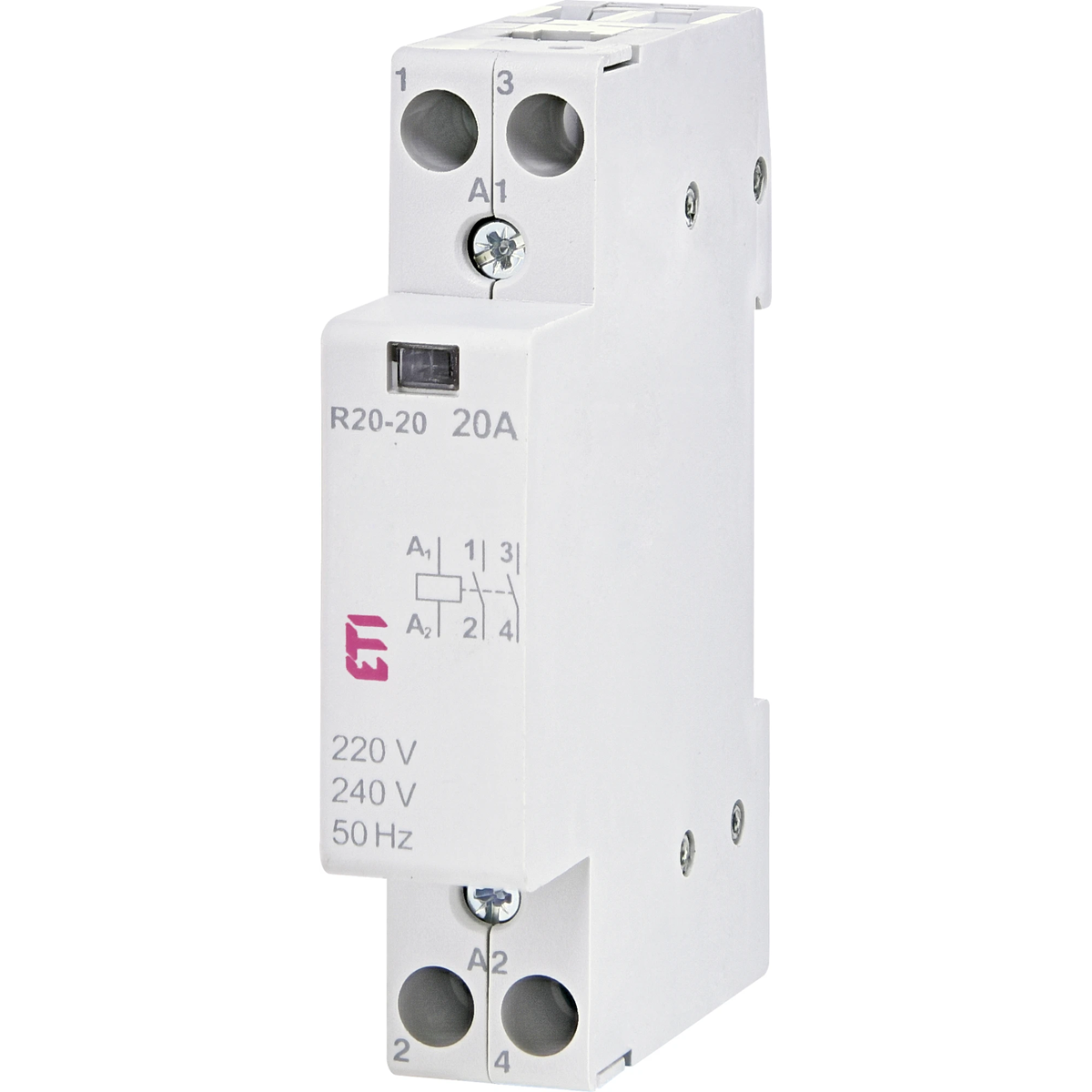

Modular contactor 20A 2 NO contacts (1 mod. 2 pole) R 20-20 230 002461210

Name: Modular contactor 20A 2 NO contacts (1 mod. 2 pole) R 20-20 230
Brand: ETI POLAM
SKU: ATA012ETIP
Price: 23.49 PLN
Availability: InStock

local index:

ATA012ETIP

Catalog No:

002461210

EAN code:

5904722903371

Modular contactor 20A 2 NO contacts (1 mod. 2 pole) R 20-20 230

Click on the photo to enlarge

Manufacturer: ETI POLAM

Number of contacts: 2NO 0NC

Rated voltage [V]: 230

Rated current [A]: 20

See full description

Price:

23,49 €

gross / pcs.

(including VAT 23%)

180,69 € gross/kg.

Accessible 6 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Control of lighting, heating, ventilation, etc. power supply systems.

Advantages:

low-current coil control
design for 24V AC and 230V AC,
large number of variants (contacts 4-0, 1-3, 2-2, 3-1, 0-4),
short reaction time to the control impulse,
high durability
quiet operation as standard for R40, R63.

Technical data

Number of contacts

2NO 0NC
Rated current [A]

20
Weight [g]

130
PKWIU

27.12.23.0

Rated voltage [V]

230
Working temperature [°C]

from -40 to +60
Compliance with standards

IEC 60947-4-1

Other technical data

Rated operating voltage

230 ... 400 V
Rated excitation voltage

230 ... 230 V
Voltage type (excitation voltage)

AC
Number of contacts as normally closed contact

0
Built-in depth

60 mm
Degree of protection (IP)

IP20

Rated operation current

20 A
Voltage type (operating voltage)

AC
Number of contacts as normally open contact

2
Slider for hand switch

No
Additional equipment possible

No

Bulk packaging

A kind of package	Pudełko	Pudełko
Quantity	12 pcs.	120 pcs.
Weight (kg)	1,440	-
Volume (m3)	0,001	-
Width (m)	0,216	-
Length (m)	0,090	-
Depth (m)	0,073	-
