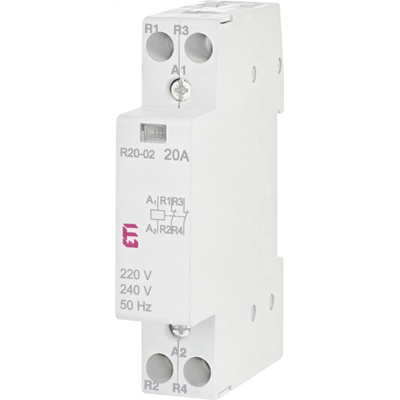

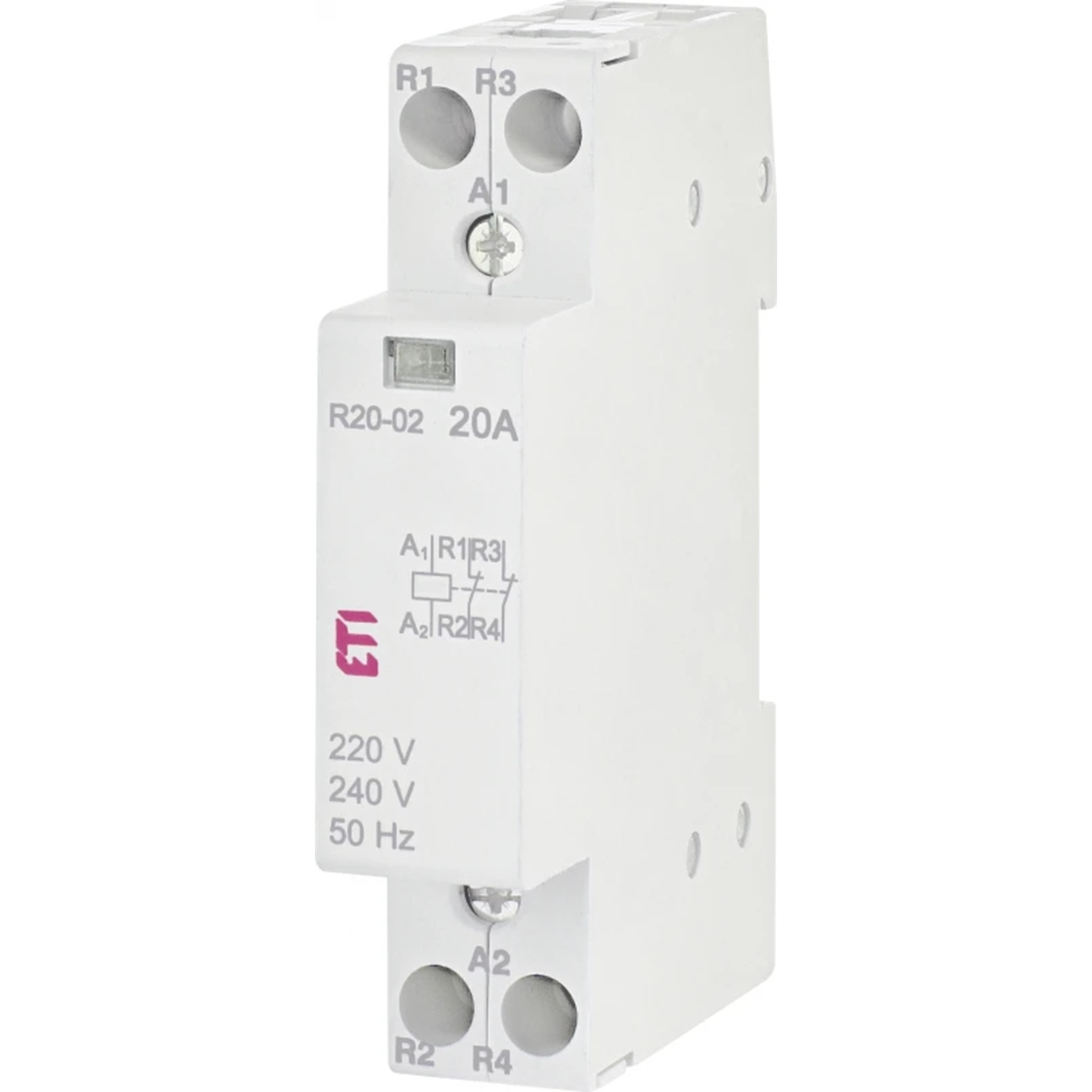

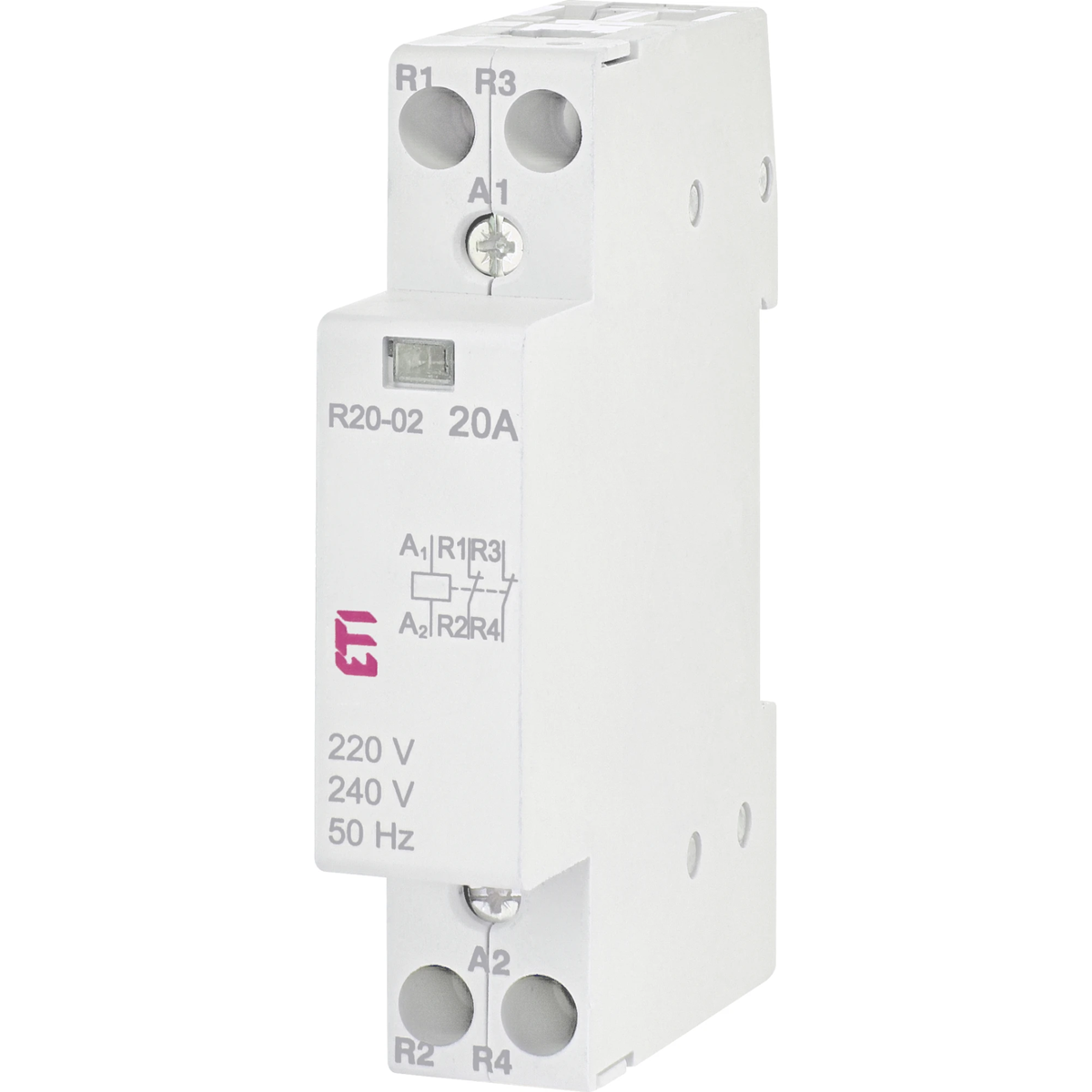

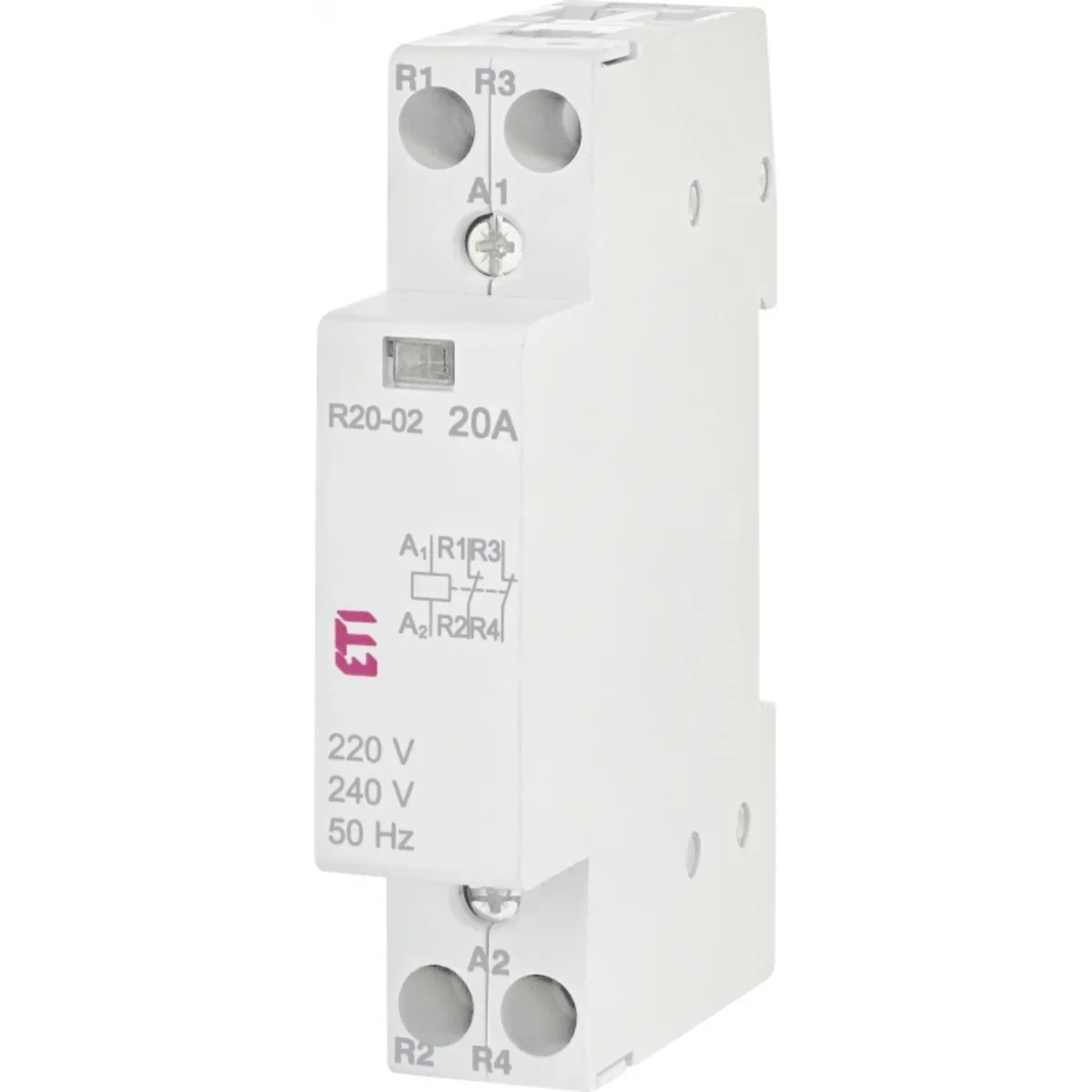

Modular contactor 20A 2 NC contacts (1 mod. 2 pole) R 20-02 230 002461230

Внутрішній артикул:
ATA062ETIP
№ каталоговий:
002461230
Код EAN:
5904722903418
Виробник: ETI POLAM
Rated voltage [V]: 230
Rated current [A]: 20
Working temperature [°C]: from -40 to +60
Ціна:
31,94 €
gross / шт.
(з ПДВ 23%)
245,69 € gross/кг.
Доставка за 3 години
до 2 тижнів (робочі дні)
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати в буфер обміну
Роздрукувати

Опис товару

 Control of lighting, heating, ventilation, etc. power supply systems.

Advantages:

  •  low-current coil control
  •  design for 24V AC and 230V AC,
  •  large number of variants (contacts 4-0, 1-3, 2-2, 3-1, 0-4),
  • < li> high switching frequency (600/300 cycles/h),
  •  short reaction time to the control impulse,
  •  high durability
  • < li> connection terminals can be sealed,
  •  quiet operation as standard for R40, R63.

Технічні дані

  • Rated voltage [V]
    230
  • Working temperature [°C]
    from -40 to +60
  • Compliance with standards
    IEC 60947-4-1
  • Rated current [A]
    20
  • Weight [g]
    130
  • PKWIU
    27.12.23.0

Інші технічні дані

  • Rated operating voltage
    230 ... 400 V
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    2
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP20
  • Rated operation current
    20 A
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    0
  • Slider for hand switch
    No
  • Additional equipment possible
    No

Інформація про виробника

  • Виробник
    ETI Polam Sp. z o.o.
  • Адреса
    06-100 Pułtusk Jana Pawła II 18 Polska
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Pudełko Pudełko
Кількість 12 шт. 120 шт.
Вага (кг) 1,440 -
Об'єм (м3) 0,001 -
Ширина (м) 0,216 -
Довжина (м) 0,090 -
Глибина (м) 0,073 -
