Miniature circuit breaker K60N-C40-1 C 40A 1-pole A9K02140
local index:
ABC115SCHN
Catalog No:
A9K02140
EAN code:
3606480478369
Manufacturer:
SCHNEIDER ELECTRIC
Characteristic: c
Price:
6,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

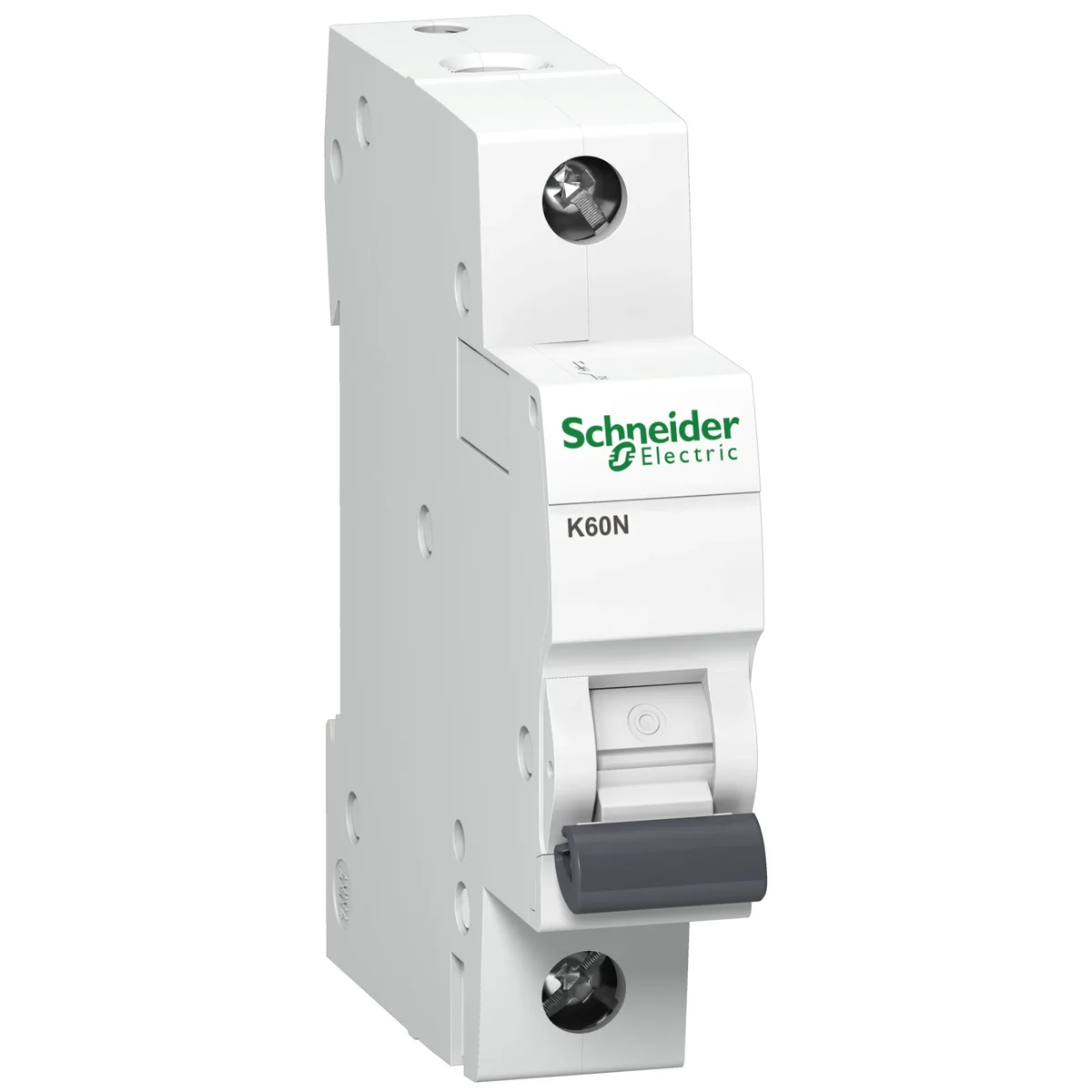

Miniature circuit breaker K60N-C40-1 C 40A 1-pole
Technical data
-
Characteristicc
-
PKWIU27.12.22.0
Other technical data
-
Release characteristicC
-
Number of protected poles1
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeAC
-
Current limiting class3
-
Pollution degree2
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired0.5 ... 25 mm²
-
Number of poles (total)1
-
Rated current40 A
-
Rated insulation voltage Ui440 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorNo
-
Additional equipment possibleNo
-
Built-in depth44.5 mm
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core0.5 ... 35 mm²
