Electrical apparatus
fuses
Circuit breakers with "B" characteristic

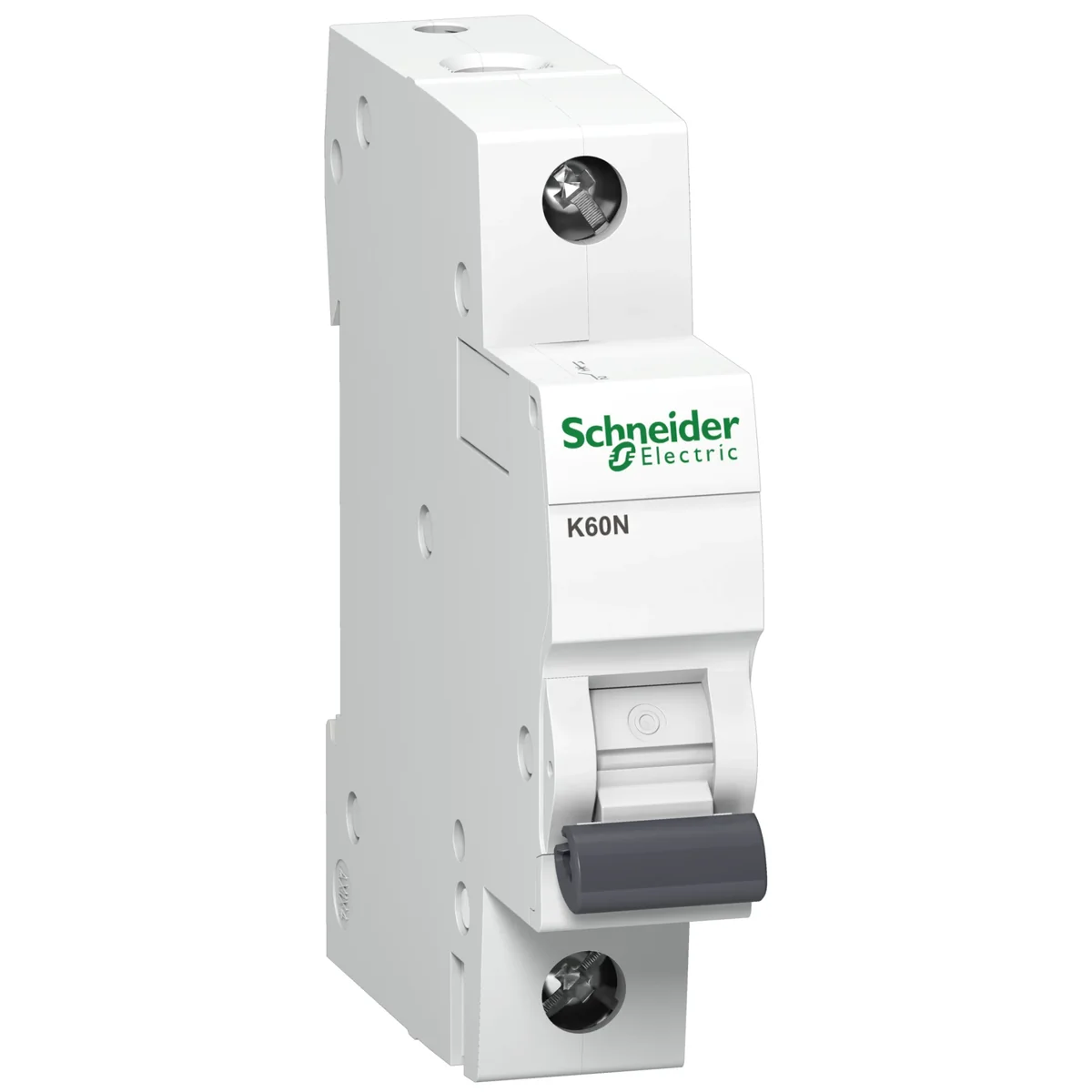

Miniature circuit breaker K60N-B25-1 B 25A 1-pole A9K01125
local index:
ABB057SCHN
Catalog No:
A9K01125
EAN code:
3606480478178
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Rated current [A]:
25
See full description
Price:
4,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Miniature circuit breaker K60N-B25-1 B 25A 1-pole
Technical data
Rated current [A]
25
PKWIU
27.12.22.0
Other technical data
Release characteristic
B
Number of protected poles
1
Rated voltage
230 V
Rated impulse withstand voltage Uimp
4 kV
Voltage type
AC
Current limiting class
3
Pollution degree
2
Width in number of modular spacings
1
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0.5 ... 25 mm²
Number of poles (total)
1
Rated current
25 A
Rated insulation voltage Ui
440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Frequency
50 ... 60 Hz
Concurrently switching neutral conductor
No
Additional equipment possible
No
Built-in depth
44.5 mm
Ambient temperature during operating
-25 ... 70 °C
Connectable conductor cross section solid-core
0.5 ... 35 mm²
Files to download
PEP ecopassport SCHN-00258-V02.01-EN.pdf
EU declaration of conformity - Acti9K60 - FD16032901C.pdf
See more >>
