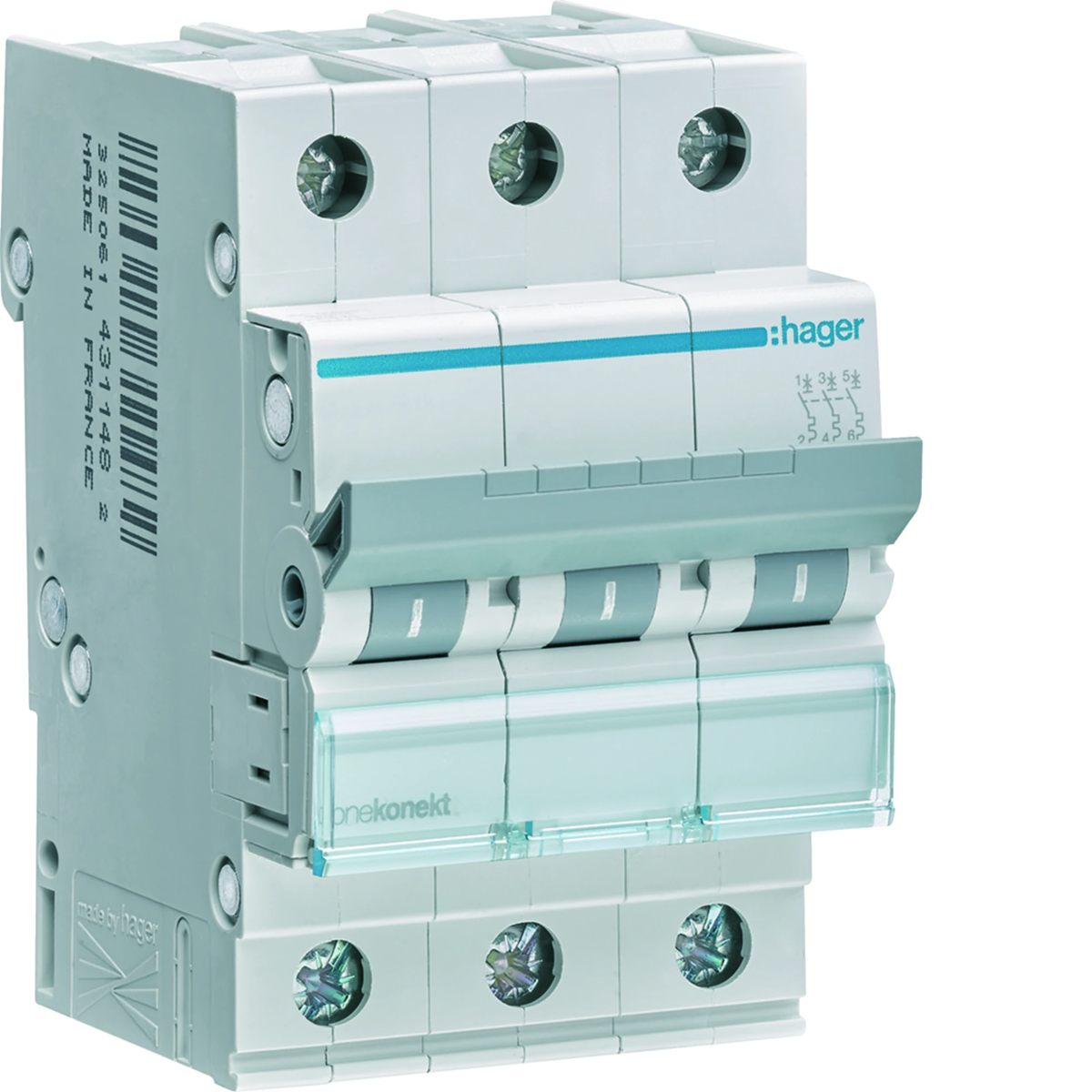

Miniature circuit breaker 6kA C 3-pole 6A MCN306E

Indice locale:
ABC147HAGE
Numero di catalogo:
MCN306E
Codice EAN:
3250614313943
Produttore: HAGER
Characteristic: c
Depth [mm]: 70
Number of modules: 3
Prezzo:
31,28 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 22 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Miniature circuit breakers 0, 5 - 63 A. Type B and C. Rated short-circuit breaking capacity 6000 A • rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Dati tecnici

  • Characteristic
    c
  • Number of modules
    3
  • Rated voltage [V]
    230
  • Rated current [A]
    6
  • Width [mm]
    52.5
  • Number of modules
    3
  • Depth [mm]
    70
  • Number of poles
    3
  • Rated insulation voltage [V]
    500
  • Power dissipation [W]
    3.75
  • Height [mm]
    83
  • PKWIU
    27.12.22.0

Altri dati tecnici

  • Built-in depth
    70 mm
  • Number of poles (total)
    3
  • Rated current
    6 A
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    3
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    3
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 1 pezzi 4 pezzi 48 pezzi 1152 pezzi
Peso (kg) 0,280 1,195 14,720 376,280
Larghezza (m) 0,052 0,100 0,313 0,800
Lunghezza (m) 0,087 0,080 0,235 1,090
Profondità (m) 0,073 0,226 0,360 1,200
