Miniature circuit breaker 6kA C 3-pole 63A MCN363E

Name: Miniature circuit breaker 6kA C 3-pole 63A
Brand: HAGER
SKU: ABC177HAGE
Price: 237.56 PLN
Availability: InStock

Indeks lokalny:

ABC177HAGE

Nr katalogowy:

MCN363E

Kod EAN:

3250614314032

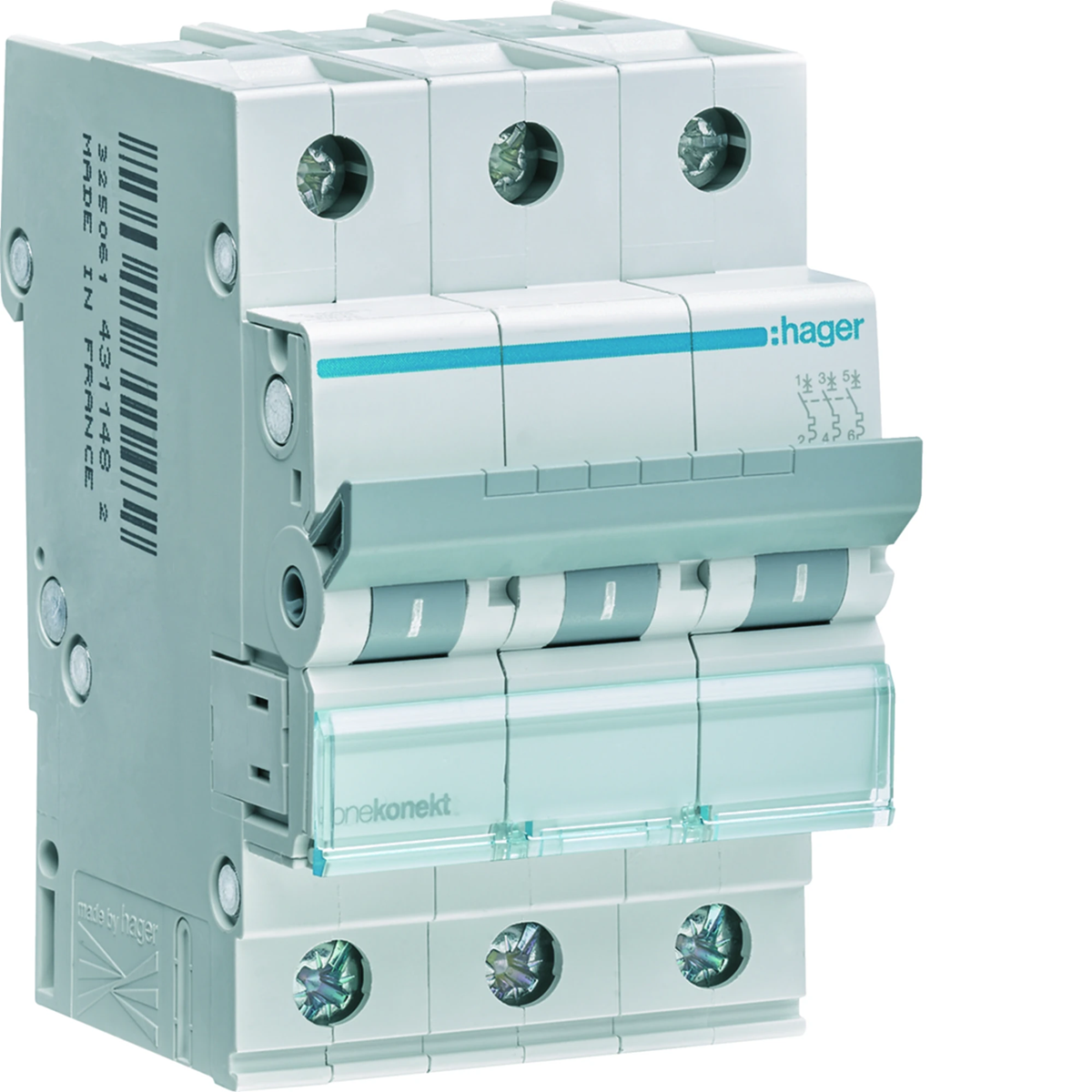

Miniature circuit breaker 6kA C 3-pole 63A

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Characteristic: c

Depth [mm]: 70

Number of modules: 3

Zobacz cały opis

Cena:

237,56 zł

gross / szt.

(w tym VAT 23%)

Dostępne 29 szt.

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Miniature circuit breakers 0, 5 - 63 A. Type B and C. Rated short-circuit breaking capacity 6000 A
• rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Dane techniczne

Characteristic

c
Number of modules

3
Rated voltage [V]

230
Power dissipation [W]

20.04
Height [mm]

83
Number of modules

3

Depth [mm]

70
Number of poles

3
Rated current [A]

3
Width [mm]

52.5
Rated short-circuit breaking capacity [kA]

6
PKWIU

27.12.22.0

Pozostałe dane techniczne

Built-in depth

70 mm
Number of poles (total)

3
Rated current

63 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

6 kA
Power loss

19.9 W
Flush-mounted installation

Yes
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Release characteristic

C
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Frequency

50 ... 60 Hz
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Dane producenta

Producent

Hager Electro S.A.S.
Adres

FR 67215 Obernai 123 boulevard d’Europe Francja
Email

wsparcie.klienta@hager.com

Opakowania zbiorcze

Rodzaj opakowania	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Ilość	4 szt.	48 szt.	1152 szt.	4 szt.	48 szt.	1152 szt.
Waga (kg)	1,450	17,420	418,170	1,450	17,420	418,170
Szerokość (m)	0,100	0,310	0,800	0,100	0,310	0,800
Długość (m)	0,080	0,230	1,050	0,080	0,230	1,050
Głębokość (m)	0,220	0,360	1,200	0,220	0,360	1,200
