Miniature circuit breaker 6kA C 3-pole 50A MCN350E

Name: Miniature circuit breaker 6kA C 3-pole 50A
Brand: HAGER
SKU: ABC164HAGE
Price: 196.90 PLN
Availability: InStock

Indice locale:

ABC164HAGE

Numero di catalogo:

MCN350E

Codice EAN:

3250614314025

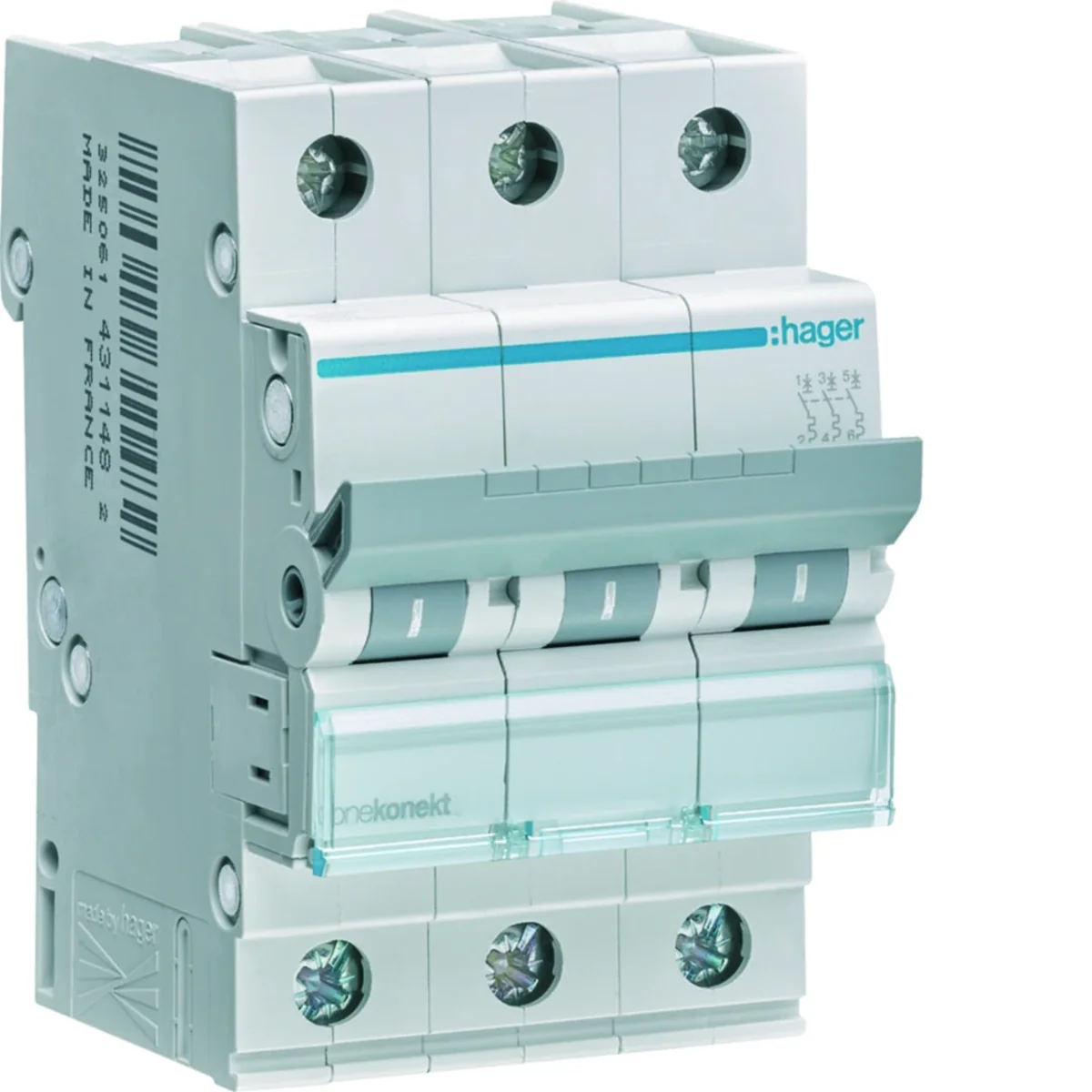

Miniature circuit breaker 6kA C 3-pole 50A

Clicca sulla foto per ingrandire

Produttore: HAGER

Characteristic: c

Depth [mm]: 70

Number of poles: 3

Vedi la descrizione completa

Prezzo:

196,90 zł

gross / pezzi

(inclusa IVA 23%)

Accessibile 24 pezzi

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Miniature circuit breakers 0, 5 - 63 A. Type B and C. Rated short-circuit breaking capacity 6000 A
• rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Dati tecnici

Characteristic

c
Number of poles

3
Rated current [A]

50
Width [mm]

52.5
Rated short-circuit breaking capacity [kA]

6

Depth [mm]

70
Rated voltage [V]

230
Power dissipation [W]

13.65
Height [mm]

83
PKWIU

27.12.22.0

Altri dati tecnici

Built-in depth

70 mm
Number of poles (total)

3
Rated current

50 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

C
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Dettagli del produttore

Produttore

Hager Electro S.A.S.
Indirizzo

FR 67215 Obernai 123 boulevard d’Europe Francja
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantità	4 pezzi	48 pezzi	1152 pezzi	4 pezzi	48 pezzi	1152 pezzi
Peso (kg)	1,460	17,520	420,480	1,460	17,520	420,480
Larghezza (m)	0,090	0,310	0,800	0,090	0,310	0,800
Lunghezza (m)	0,080	0,220	1,060	0,080	0,220	1,060
Profondità (m)	0,220	0,360	1,200	0,220	0,360	1,200
