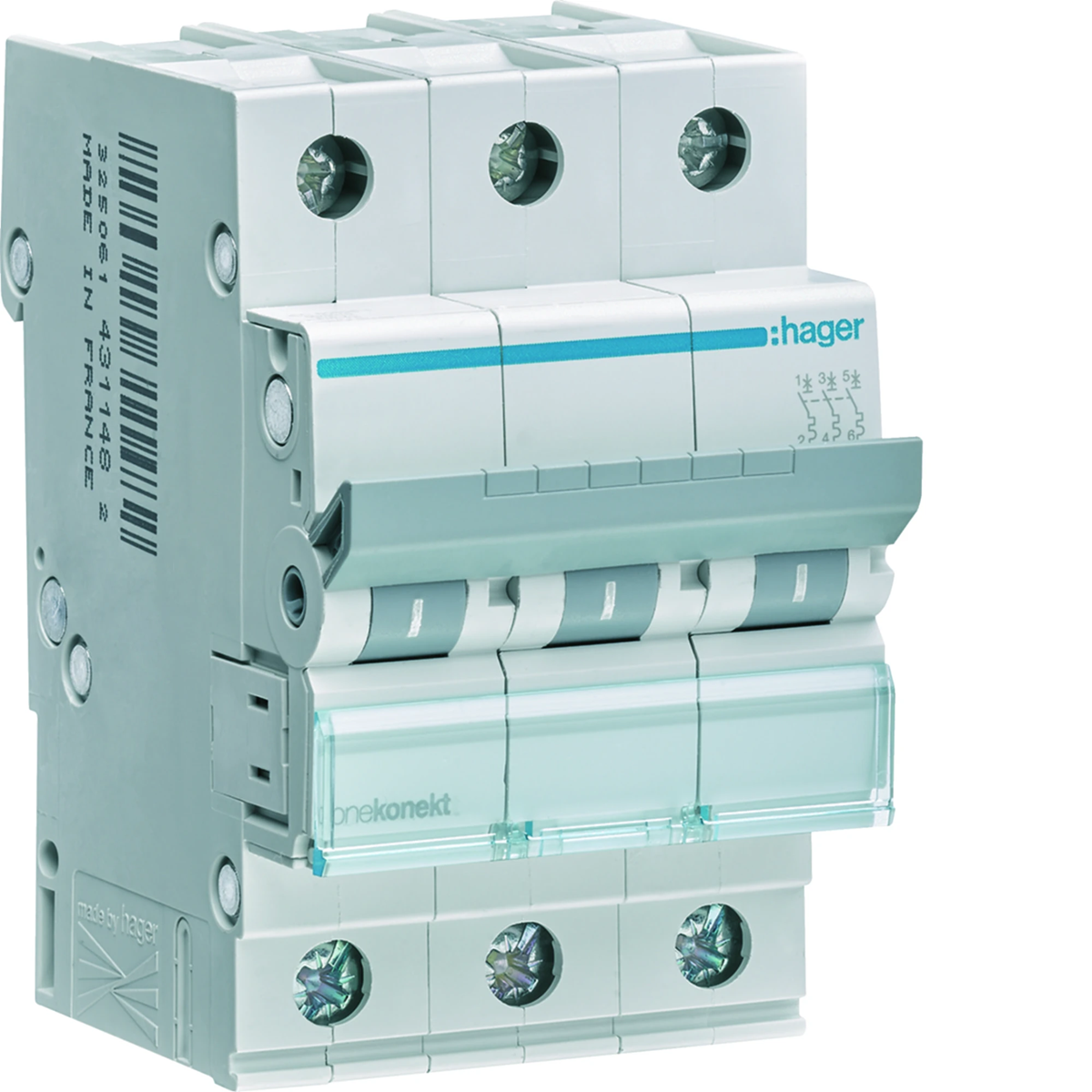

Miniature circuit breaker 6kA C 3-pole 16A MCN316E

Name: Miniature circuit breaker 6kA C 3-pole 16A
Brand: HAGER
SKU: ABC151HAGE
Price: 19.15 PLN
Availability: InStock

local index:

ABC151HAGE

Catalog No:

MCN316E

EAN code:

3250614313974

Miniature circuit breaker 6kA C 3-pole 16A

Click on the photo to enlarge

Manufacturer: HAGER

Characteristic: c

Depth [mm]: 70

Number of modules: 3

See full description

Price:

19,15 €

gross / pcs.

(including VAT 23%)

Accessible 65 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Miniature circuit breakers 0, 5 - 63 A. Type B and C. Rated short-circuit breaking capacity 6000 A • rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

Characteristic

c
Number of modules

3
Rated voltage [V]

230
Rated current [A]

16
Width [mm]

52.5
Rated short-circuit breaking capacity [kA]

6
PKWIU

27.12.22.0

Depth [mm]

70
Number of poles

3
Rated insulation voltage [V]

500
Power dissipation [W]

7.68
Height [mm]

83
Number of modules

3

Other technical data

Built-in depth

70 mm
Number of poles (total)

3
Rated current

16 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Release characteristic

C
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	4 pcs.	48 pcs.	1152 pcs.
Weight (kg)	0,275	1,103	13,630	350,120
Width (m)	0,052	0,097	0,316	0,800
Length (m)	0,085	0,082	0,239	1,106
Depth (m)	0,073	0,227	0,367	1,200
