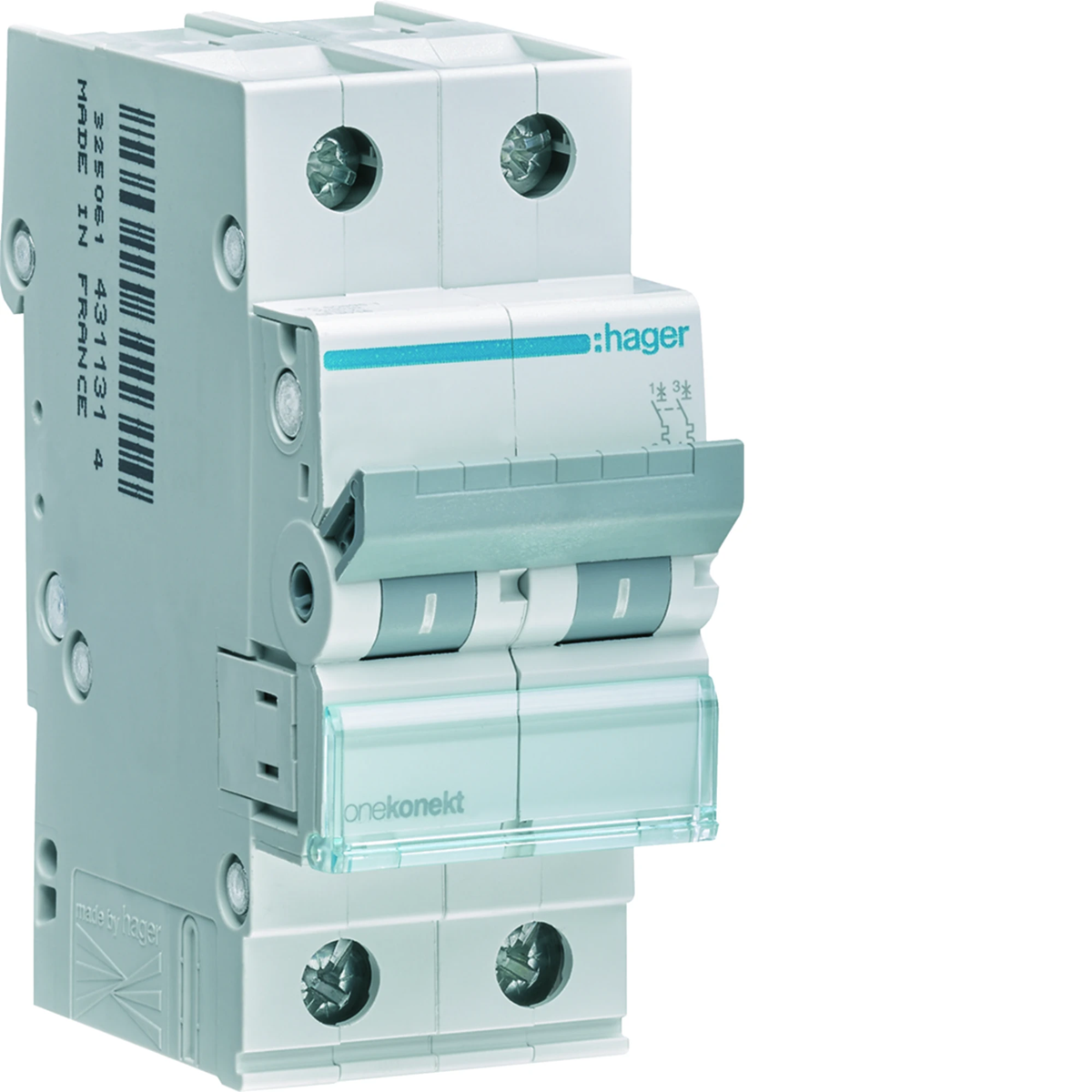

Miniature circuit breaker, 6kA, C, 2-pole, 3A char. c MCN203E

local index:
ABC016HAGE
Catalog No:
MCN203E
EAN code:
3250614333729
Manufacturer: HAGER
Characteristic: c
Depth [mm]: 70
Number of modules: 2
Price:
27,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Miniature circuit breaker, 6kA, C, 2-pole, 3A char. c

Technical data

  • Characteristic
    c
  • Number of modules
    2
  • Rated insulation voltage [V]
    500
  • Width [mm]
    35
  • Electrical endurance (number of cycles)
    10000
  • Rated short-circuit breaking capacity [kA]
    6
  • PKWIU
    27.12.22.0
  • Depth [mm]
    70
  • Number of poles
    2
  • Rated current [A]
    3
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    20000
  • Number of modules
    2

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    2
  • Rated current
    3 A
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    2
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 6 pcs. 72 pcs. 1728 pcs.
Weight (kg) 0,242 1,462 17,984 456,616
Width (m) 0,035 0,100 0,318 0,800
Length (m) 0,085 0,079 0,237 1,098
Depth (m) 0,073 0,227 0,370 1,200
