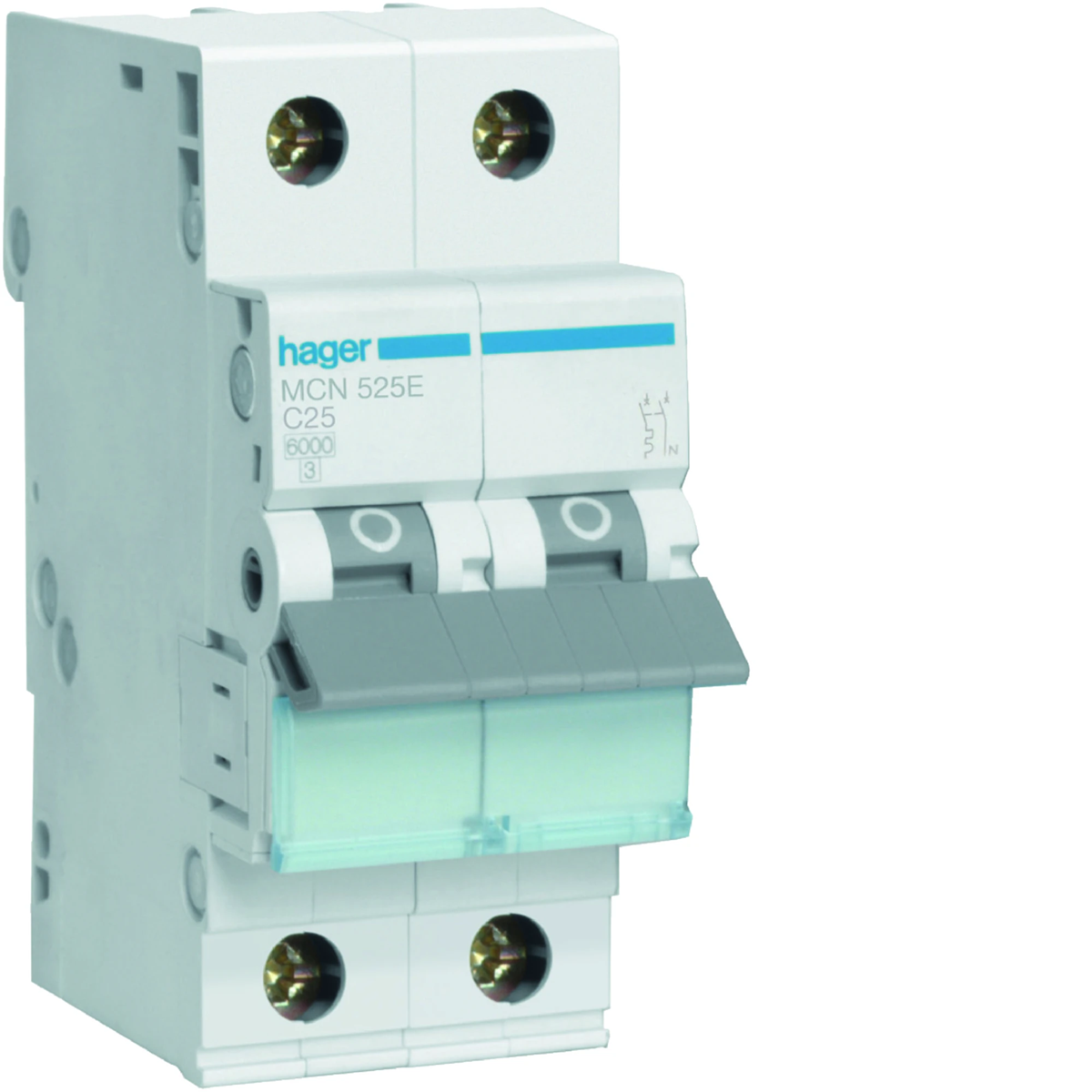

Miniature circuit breaker 6kA C 1+N 25A MCN525E
local index:
ABC228HAGE
Catalog No:
MCN525E
EAN code:
3250614314308
Price:
22,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Miniature circuit breaker 6kA C 1+N 25A
Technical data
-
Characteristicc
-
Number of modules2
-
Rated voltage [V]230
-
Rated current [A]25
-
Width [mm]35
-
Number of modules2
-
Depth [mm]70
-
Number of poles2
-
Rated insulation voltage [V]500
-
Power dissipation [W]7.16
-
Height [mm]83
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)2
-
Rated current25 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
-
Current limiting class3
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicC
-
Number of protected poles1
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeAC
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorYes
-
Pollution degree2
-
Width in number of modular spacings2
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 6 pcs. | 72 pcs. | 1728 pcs. |
| Weight (kg) | 0,200 | 1,275 | 15,665 | 398,960 |
| Width (m) | 0,035 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,087 | 0,080 | 0,230 | 1,078 |
| Depth (m) | 0,073 | 0,225 | 0,360 | 1,200 |
