Miniature circuit breaker 6kA B unipolar 6A fuse characteristics B MBN106E

Name: Miniature circuit breaker 6kA B unipolar 6A fuse characteristics B
Brand: HAGER
SKU: ABB107HAGE
Price: 6.57 PLN
Availability: InStock

local index:

ABB107HAGE

Catalog No:

MBN106E

EAN code:

3250614312731

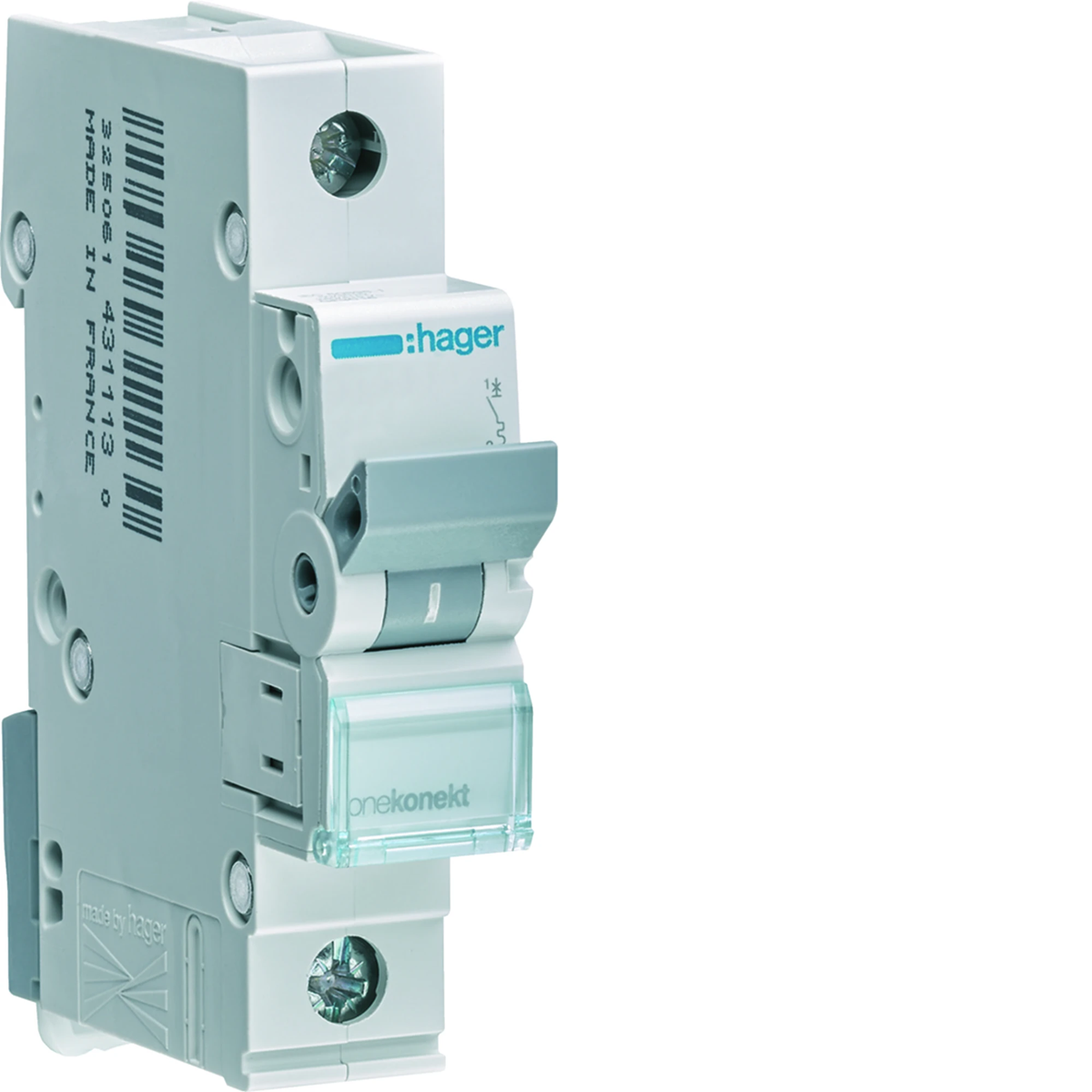

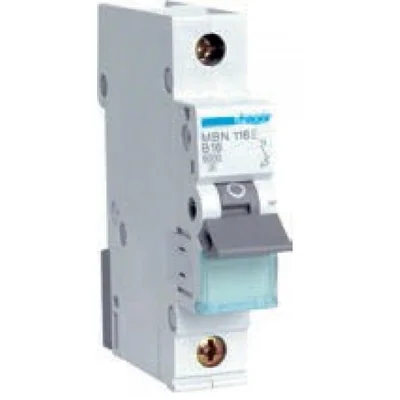

Miniature circuit breaker 6kA B unipolar 6A fuse characteristics B

Click on the photo to enlarge

Manufacturer: HAGER

Characteristic: b

Rated current [A]: 20

Rated short-circuit breaking capacity [kA]: 6

See full description

Price:

6,57 €

gross / pcs.

(including VAT 23%)

Accessible 171 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Miniature circuit breakers 0, 5 - 63 A. Type B and C Rated short-circuit breaking capacity 6000 A • rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

Characteristic

b
Rated short-circuit breaking capacity [kA]

6

Rated current [A]

20
PKWIU

27.12.22.0

Other technical data

Built-in depth

70 mm
Number of poles (total)

1
Rated current

6 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	144 pcs.	3456 pcs.
Weight (kg)	0,094	1,175	14,639	374,336
Width (m)	0,018	0,095	0,321	0,800
Length (m)	0,087	0,082	0,232	1,078
Depth (m)	0,074	0,225	0,365	1,200
