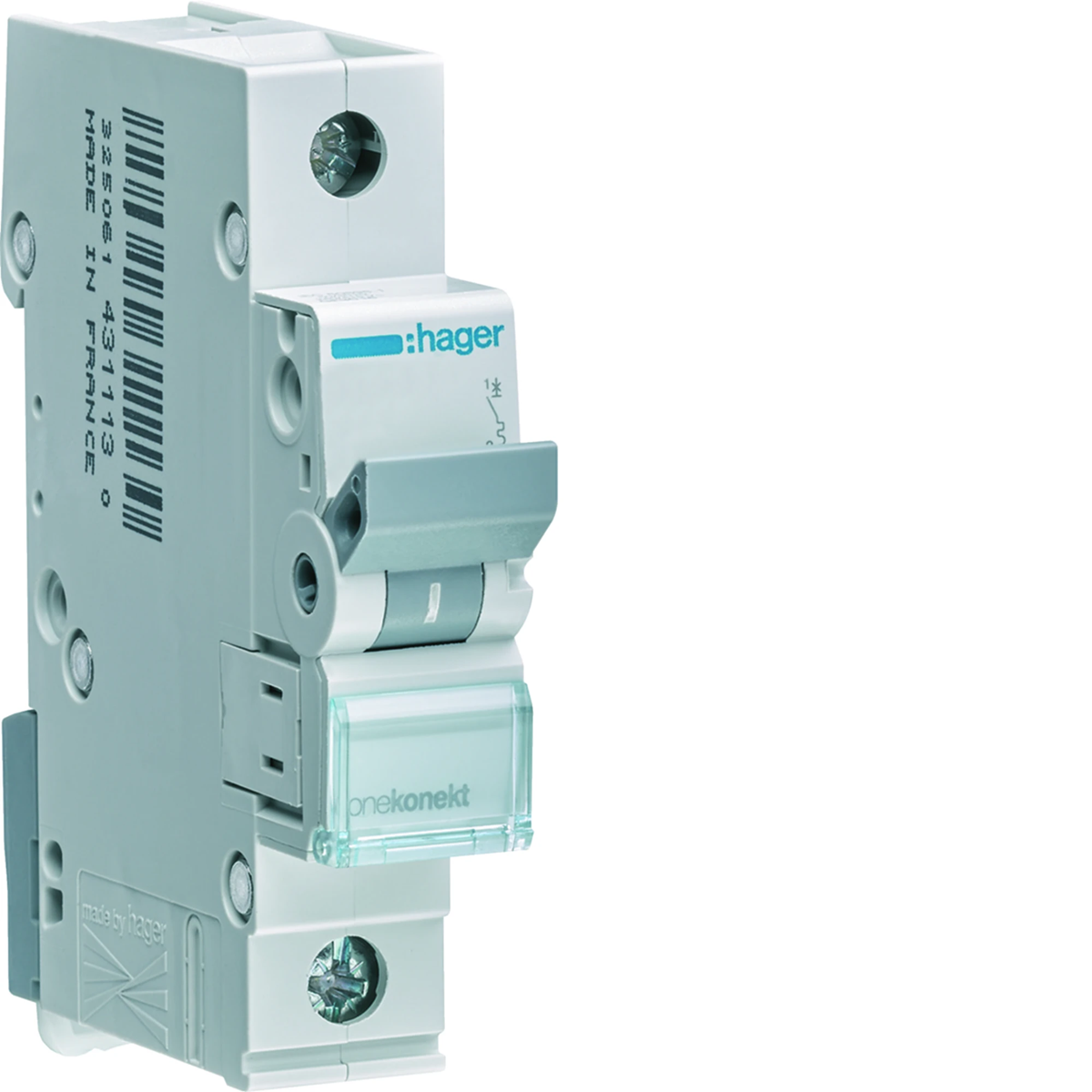

Miniature circuit breakers 0, 5 - 63 A. Type B and C Rated short-circuit breaking capacity 6000 A • rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Characteristic

b
Number of modules

1
Rated voltage [V]

230
Rated current [A]

50
Height [mm]

83
Number of modules

1

Depth [mm]

70
Number of poles

1
Rated insulation voltage [V]

500
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

6
PKWIU

27.12.22.0

Other technical data

Built-in depth

70 mm
Number of poles (total)

1
Rated current

50 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	144 pcs.	3456 pcs.
Weight (kg)	0,123	1,550	18,980	478,520
Width (m)	0,018	0,100	0,315	0,800
Length (m)	0,087	0,085	0,235	0,990
Depth (m)	0,074	0,225	0,360	1,200
