Miniature circuit breaker 6kA B unipolar 32A fuse characteristics B MBN132E

Name: Miniature circuit breaker 6kA B unipolar 32A fuse characteristics B
Brand: HAGER
SKU: ABB114HAGE
Price: 7.84 PLN
Availability: InStock

Indice locale:

ABB114HAGE

Numero di catalogo:

MBN132E

Codice EAN:

3250614312793

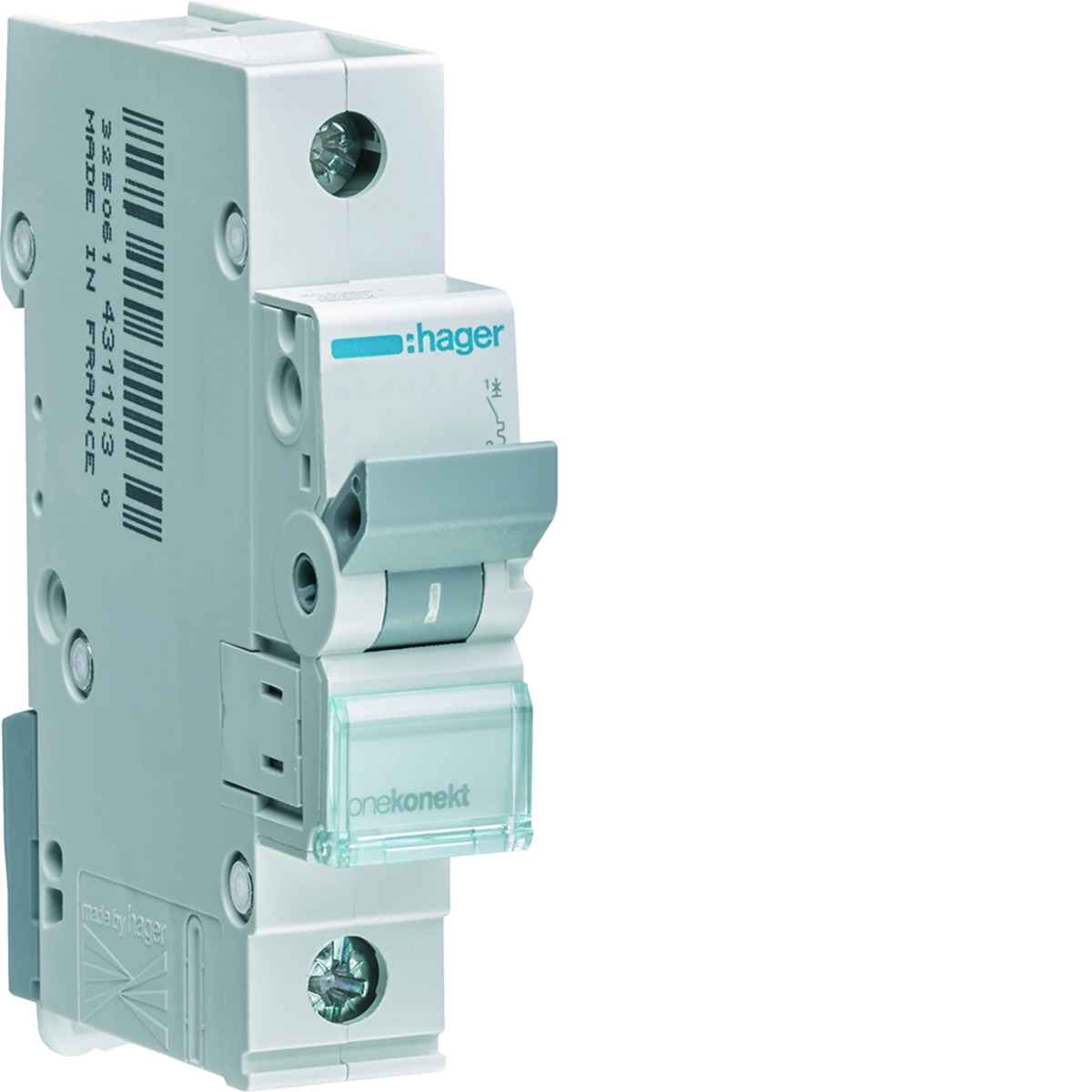

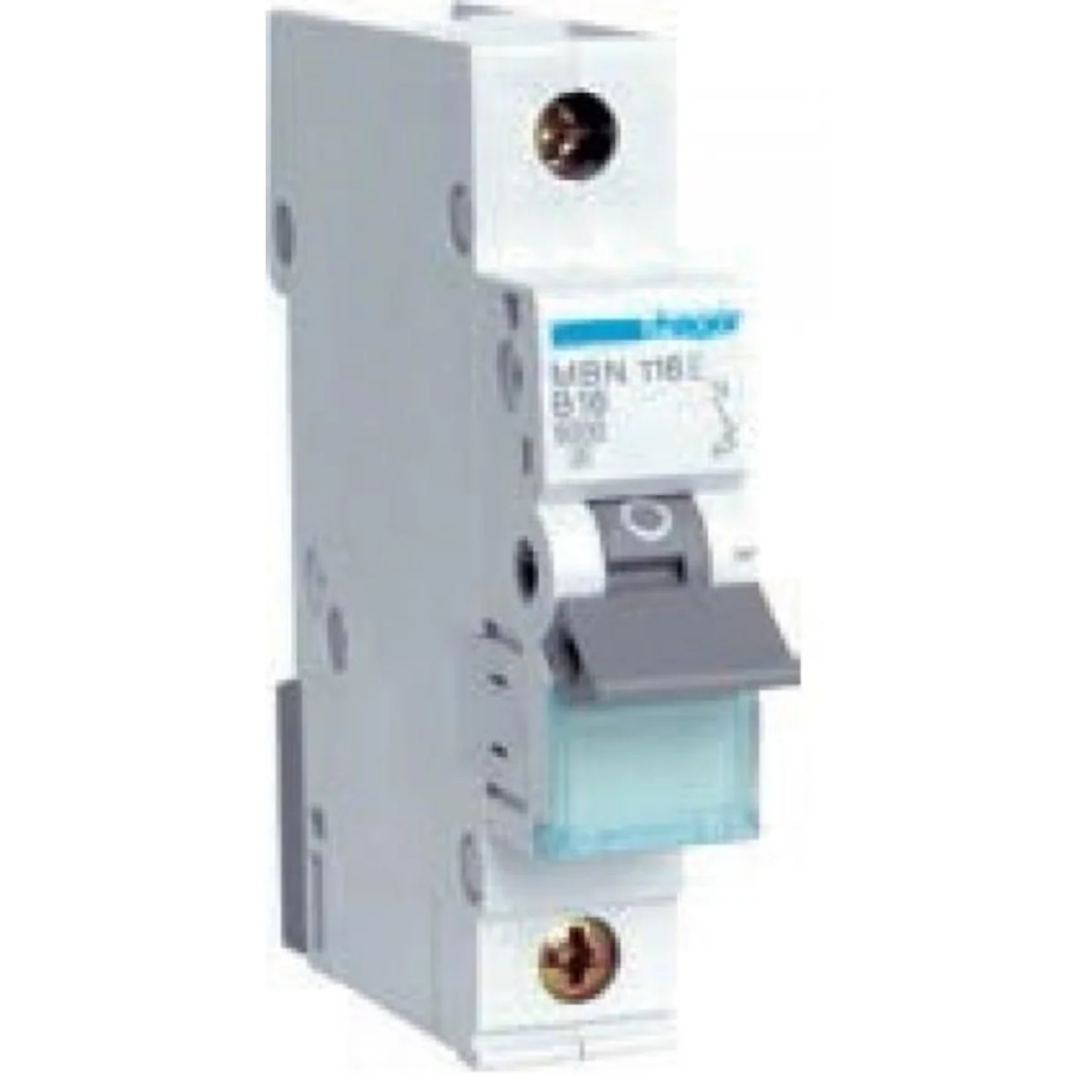

Miniature circuit breaker 6kA B unipolar 32A fuse characteristics B

Clicca sulla foto per ingrandire

Produttore: HAGER

Characteristic: b

Depth [mm]: 70

Number of modules: 1

Vedi la descrizione completa

Prezzo:

7,84 €

gross / pezzi

(inclusa IVA 23%)

Accessibile 60 pezzi

Quantità pezzi

(multiplo:

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso

Descrizione del prodotto

Miniature circuit breakers 0, 5 - 32 A. Type B and C Rated short-circuit breaking capacity 6000 A • rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Dati tecnici

Characteristic

b
Number of modules

1
Rated current [A]

32
Height [mm]

83
Number of modules

1

Depth [mm]

70
Rated voltage [V]

230
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

6
PKWIU

27.12.22.0

Altri dati tecnici

Built-in depth

70 mm
Number of poles (total)

1
Rated current

32 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²
