Miniature circuit breaker 6kA B unipolar 25A fuse characteristics B MBN125E

Name: Miniature circuit breaker 6kA B unipolar 25A fuse characteristics B
Brand: HAGER
SKU: ABB113HAGE
Price: 31.03 PLN
Availability: InStock

Lokaler Index:

ABB113HAGE

Katalognummer:

MBN125E

EAN-Code:

3250614312786

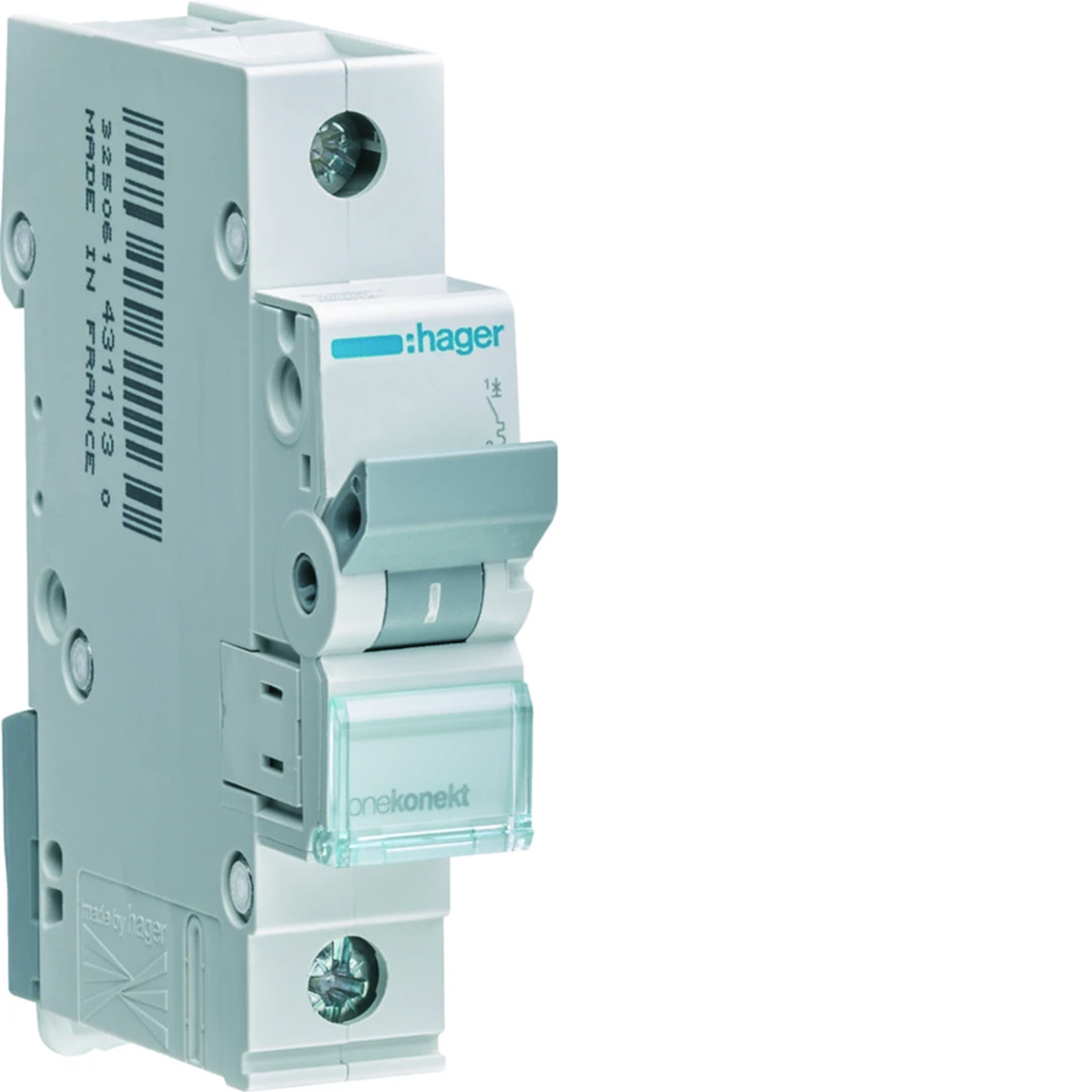

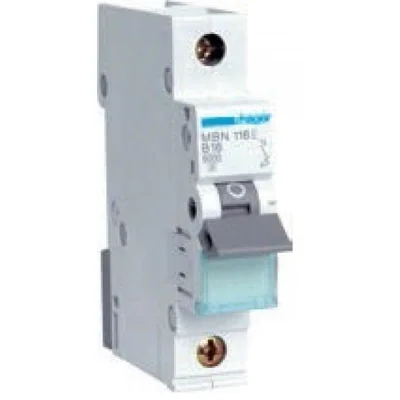

Miniature circuit breaker 6kA B unipolar 25A fuse characteristics B

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: HAGER

Depth [mm]: 70

Number of poles: 1

Rated voltage [V]: 230

Siehe vollständige Beschreibung

Preis:

31,03 zł

gross / stk.

(inklusive MwSt 23%)

Zugänglich 172 stk.

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Miniature circuit breakers 0, 5 - 63 A. Type B and C Rated short-circuit breaking capacity 6000 A • rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technische Daten

Depth [mm]

70
Rated voltage [V]

230
Rated current [A]

25
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

6

Number of poles

1
Rated insulation voltage [V]

500
Power dissipation [W]

3.58
Height [mm]

83
PKWIU

27.12.22.0

Weitere technische Daten

Built-in depth

70 mm
Number of poles (total)

1
Rated current

25 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Hersteller-Details

Hersteller

Hager Electro S.A.S.
Adresse

FR 67215 Obernai 123 boulevard d’Europe Francja
E-Mail

wsparcie.klienta@hager.com

Großpackungen

Eine Art Paket	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Menge	12 stk.	144 stk.	3456 stk.	12 stk.	144 stk.	3456 stk.
Gewicht (kg)	1,260	15,150	363,740	1,260	15,150	363,740
Breite (m)	0,090	0,310	0,800	0,090	0,310	0,800
Länge (m)	0,080	0,230	1,070	0,080	0,230	1,070
Tiefe (m)	0,220	0,360	1,200	0,220	0,360	1,200
