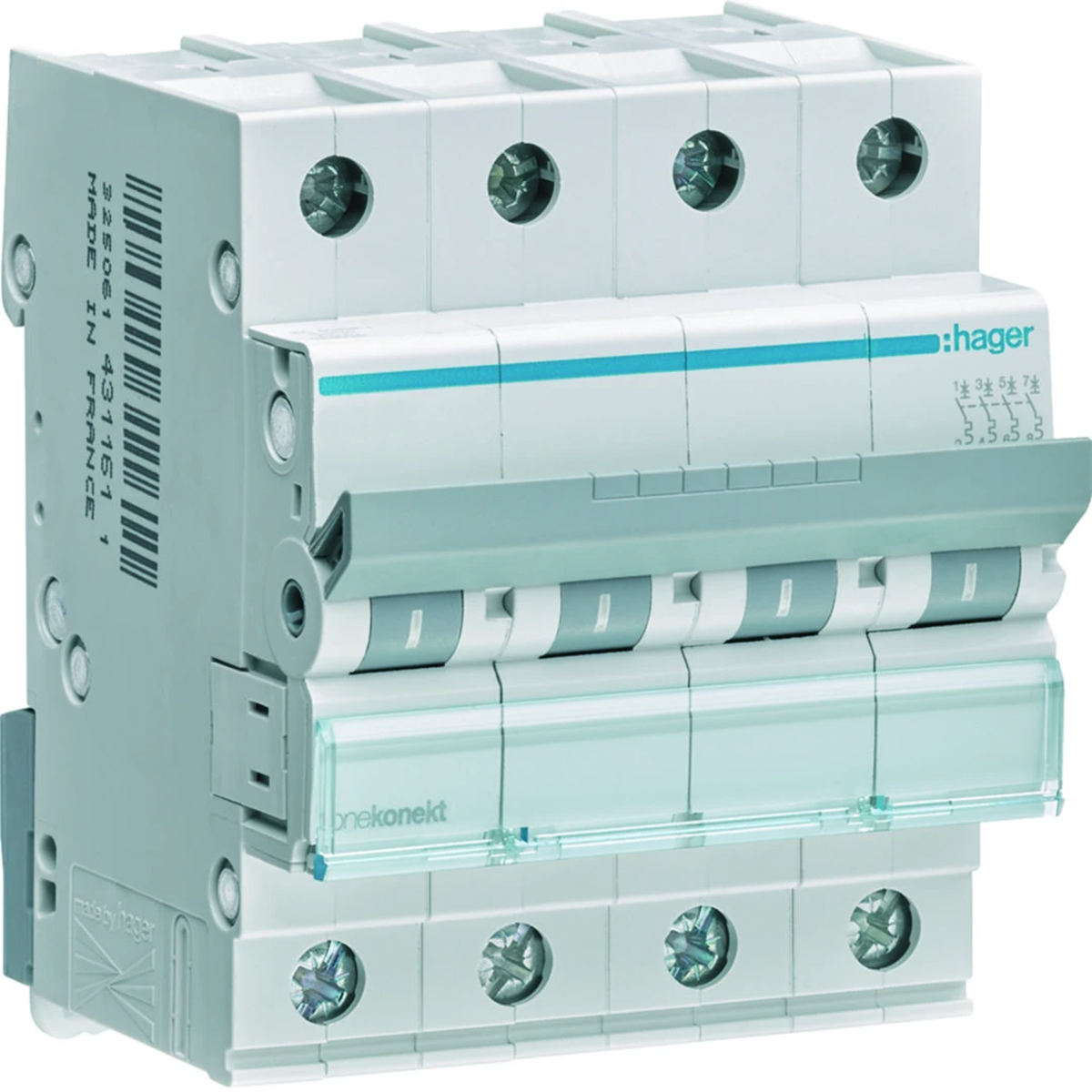

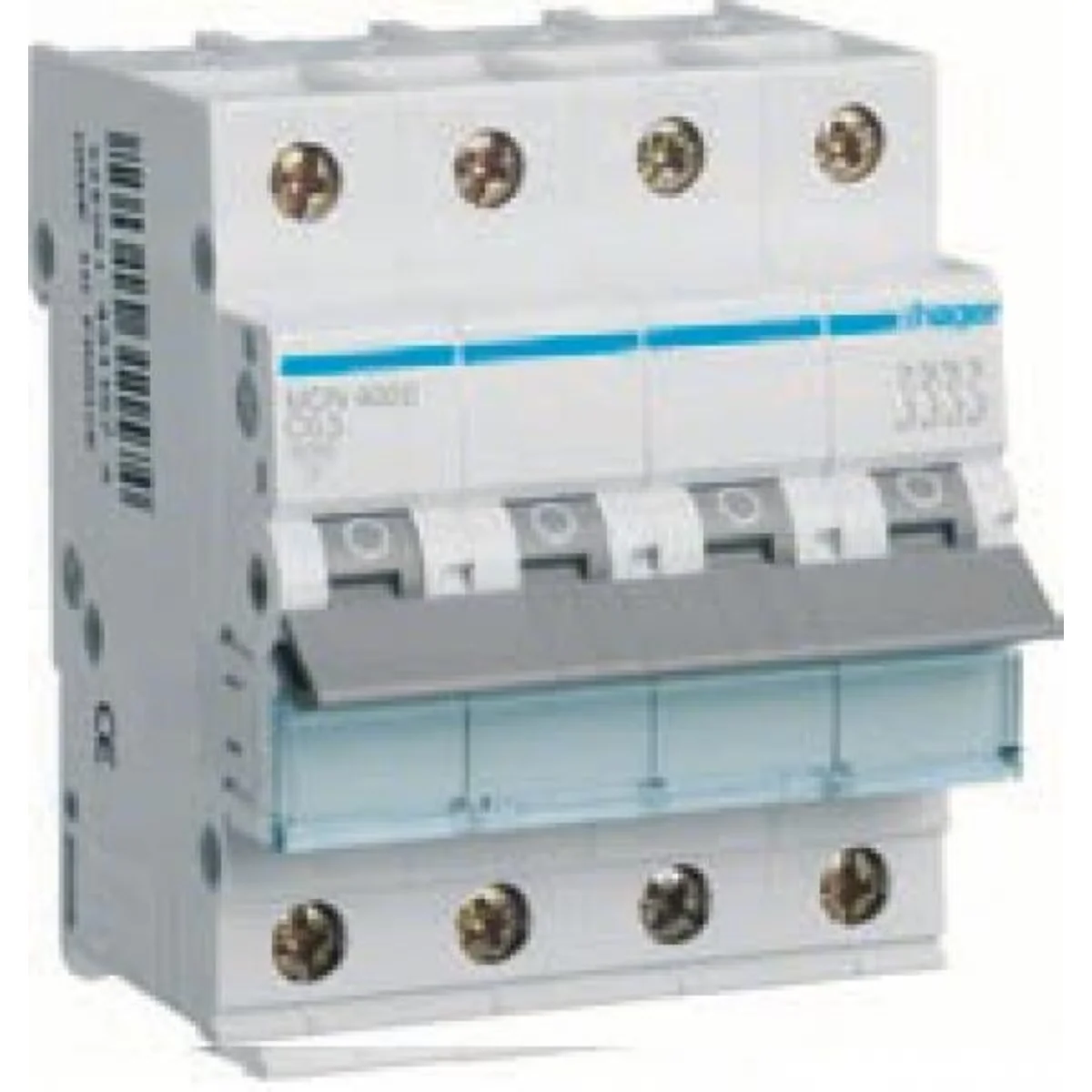

Miniature circuit breaker 6kA B four-pole 25A MBN425E

Внутрішній артикул:
ABB105HAGE
№ каталоговий:
MBN425E
Код EAN:
3250614313233
Виробник: HAGER
Characteristic: b
Depth [mm]: 70
Number of modules: 3
Розпродаж

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Ціна:
112,02 zł
gross / шт.
(з ПДВ 23%)
Найнижча ціна від 30 днів до знижки: 112,02 zł gross
Ціна виробника: 349,32 zł gross
Доставка за 3 години
Доступний 1 шт.
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Опис товару

Miniature circuit breakers 0.5 - 63 A. Type B and C Rated short-circuit breaking capacity 6000 A • rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessoriesó
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, strand up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Технічні дані

  • Characteristic
    b
  • Number of modules
    3
  • Rated current [A]
    3
  • Height [mm]
    83
  • Number of modules
    3
  • Depth [mm]
    70
  • Number of poles
    3
  • Width [mm]
    52.5
  • Rated short-circuit breaking capacity [kA]
    6
  • PKWIU
    27.12.22.0

Інші технічні дані

  • Built-in depth
    70 mm
  • Number of poles (total)
    4
  • Rated current
    25 A
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    4
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Інформація про виробника

  • Виробник
    Hager Electro S.A.S.
  • Адреса
    FR 67215 Obernai 123 boulevard d’Europe Francja
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Karton Pakiet Paleta Karton Pakiet Paleta
Кількість 3 шт. 36 шт. 864 шт. 3 шт. 36 шт. 864 шт.
Вага (кг) 1,260 15,140 363,450 1,260 15,140 363,450
Ширина (м) 0,090 0,310 0,800 0,090 0,310 0,800
Довжина (м) 0,080 0,230 1,090 0,080 0,230 1,090
Глибина (м) 0,220 0,360 1,200 0,220 0,360 1,200
