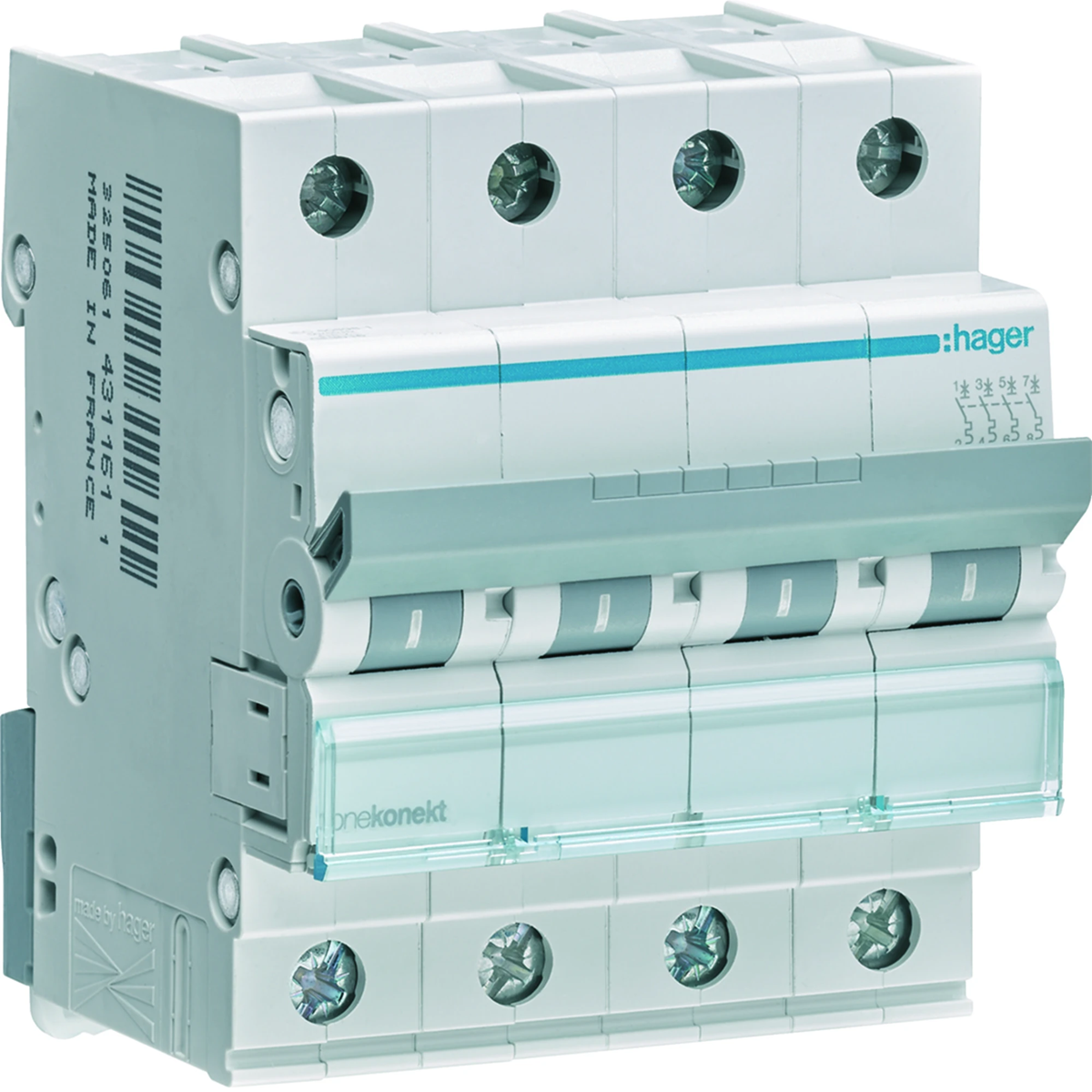

Miniature circuit breaker 6kA B four-pole 10A MBN410E
local index:
ABB003HAGE
Catalog No:
MBN410E
EAN code:
3250614313196
Price:
34,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Miniature circuit breaker 6kA B four-pole 10A
Technical data
-
Characteristicb
-
Number of modules4
-
Rated voltage [V]230
-
Power dissipation [W]7.6
-
Height [mm]83
-
Number of modules4
-
Depth [mm]70
-
Number of poles4
-
Rated current [A]10
-
Width [mm]70
-
Rated short-circuit breaking capacity [kA]6
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)4
-
Rated current10 A
-
Rated insulation voltage Ui500 V
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
-
Current limiting class3
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicB
-
Number of protected poles4
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorNo
-
Pollution degree2
-
Width in number of modular spacings4
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 3 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 1,210 | 14,990 | 384,760 |
| Width (m) | 0,095 | 0,315 | 0,800 |
| Length (m) | 0,085 | 0,237 | 1,098 |
| Depth (m) | 0,230 | 0,365 | 1,200 |
