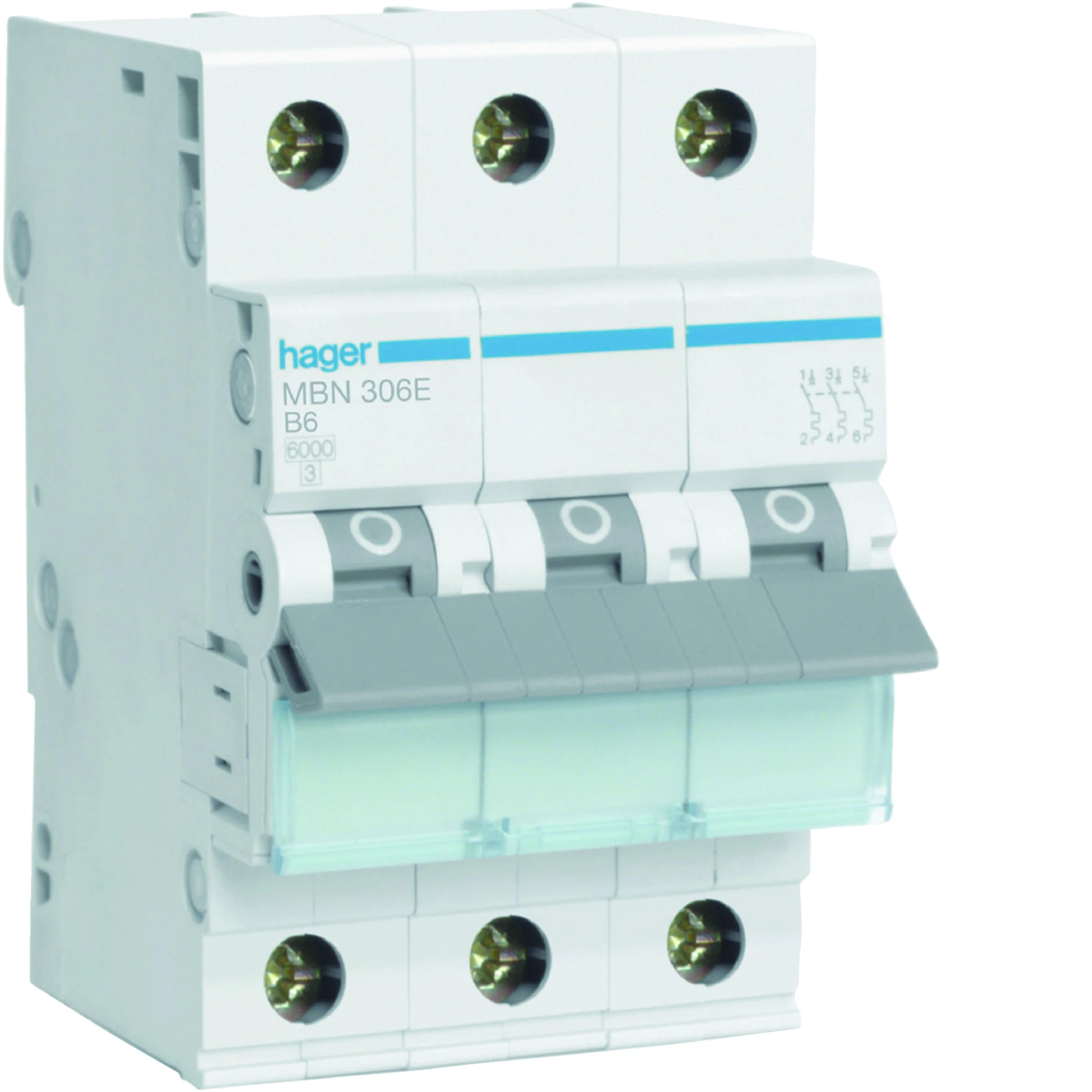

Miniature circuit breaker 6kA B 3-pole 6A MBN306E

Name: Miniature circuit breaker 6kA B 3-pole 6A
Brand: HAGER
SKU: ABB148HAGE
Price: 27.74 PLN
Availability: InStock

local index:

ABB148HAGE

Catalog No:

MBN306E

EAN code:

3250614313035

Miniature circuit breaker 6kA B 3-pole 6A

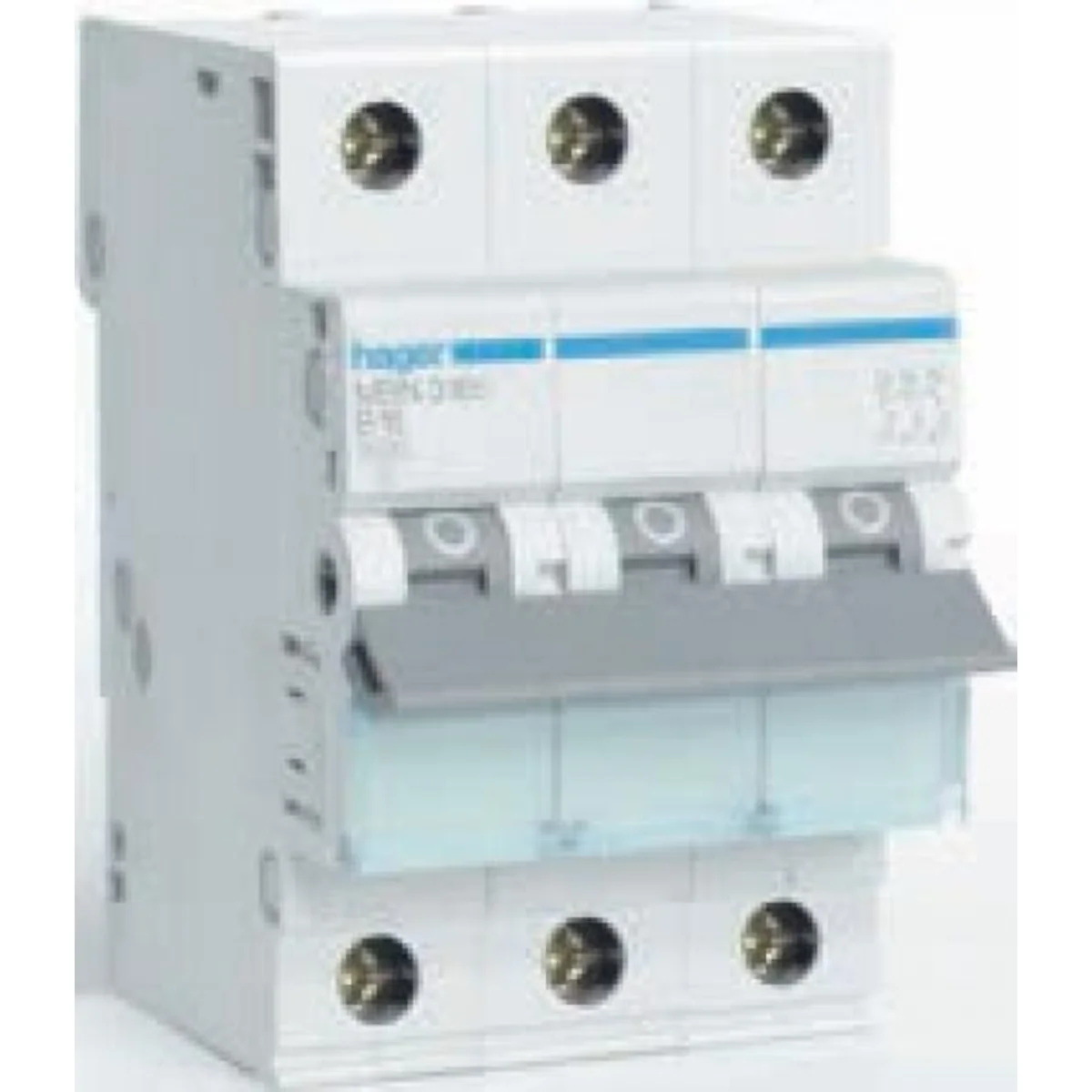

Click on the photo to enlarge

Manufacturer: HAGER

Characteristic: b

Depth [mm]: 70

Number of modules: 3

See full description

Price:

27,74 €

gross / pcs.

(including VAT 23%)

Accessible 31 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Miniature circuit breakers 0, 5 - 6 A. Type B Rated short-circuit breaking capacity 6000 A
• rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

Characteristic

b
Number of modules

3
Rated voltage [V]

230
Power dissipation [W]

3.75
Height [mm]

83
Number of modules

3

Depth [mm]

70
Number of poles

3
Rated current [A]

6
Width [mm]

52.5
Rated short-circuit breaking capacity [kA]

6
PKWIU

27.12.22.0

Other technical data

Built-in depth

70 mm
Number of poles (total)

3
Rated current

6 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	4 pcs.	48 pcs.	1152 pcs.
Weight (kg)	0,280	1,196	14,696	375,704
Width (m)	0,052	0,102	0,318	0,800
Length (m)	0,087	0,079	0,234	1,086
Depth (m)	0,073	0,227	0,372	1,200
