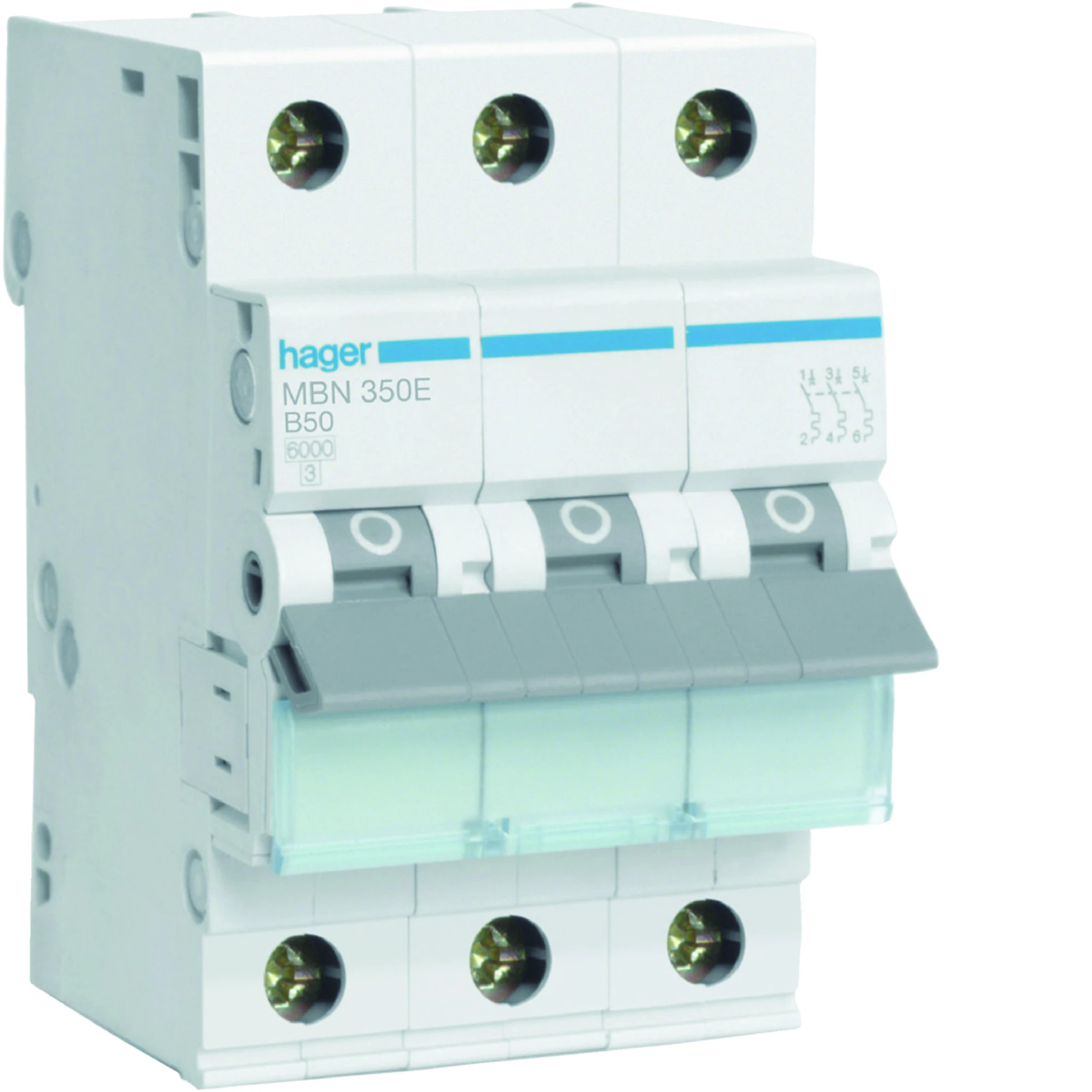

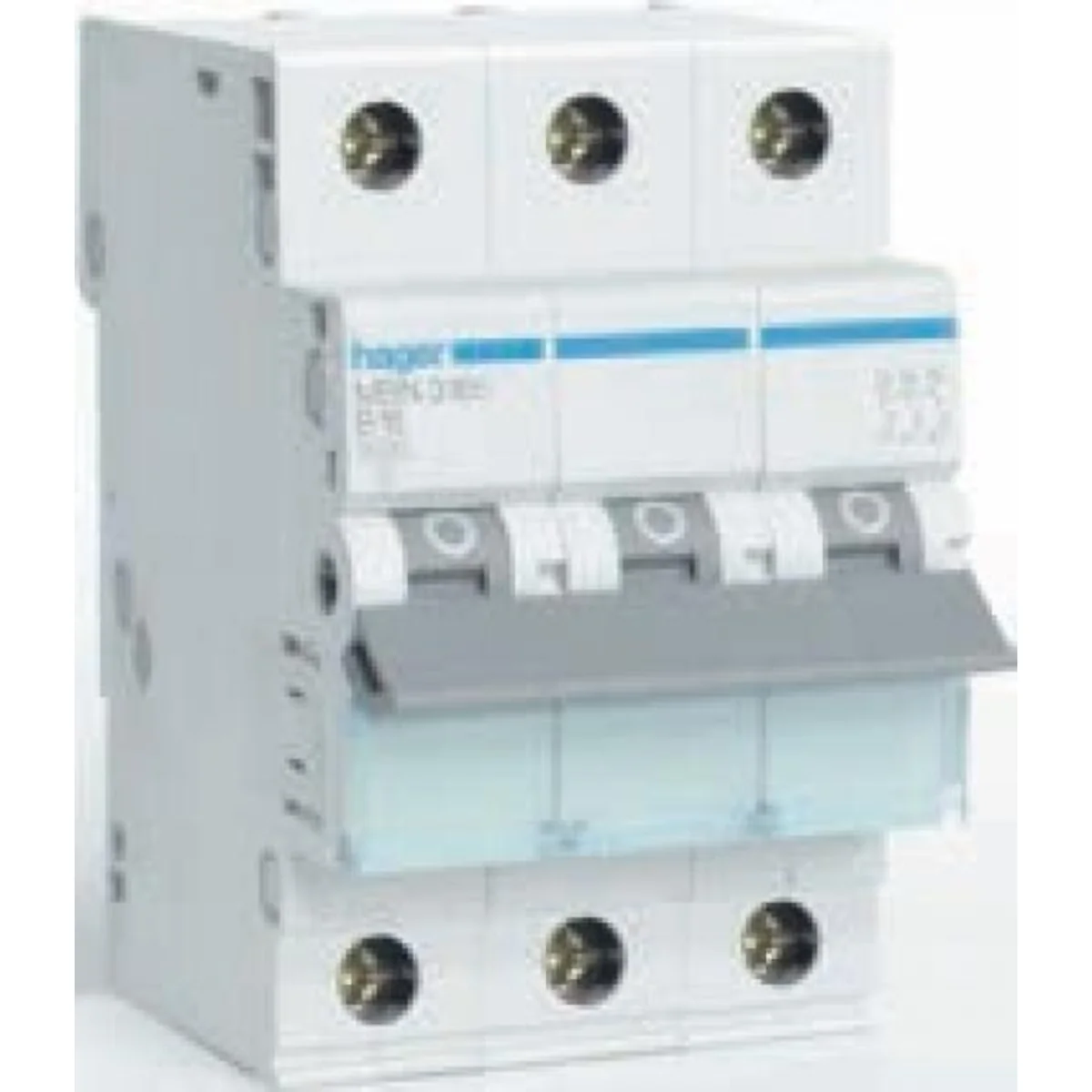

Miniature circuit breaker 6kA B 3-pole 50A MBN350E

Name: Miniature circuit breaker 6kA B 3-pole 50A
Brand: HAGER
SKU: ABB158HAGE
Price: 45.14 PLN
Availability: InStock

Índice local:

ABB158HAGE

Número de catálogo:

MBN350E

Código EAN:

3250614313110

Miniature circuit breaker 6kA B 3-pole 50A

Haga clic en la foto para ampliar

Fabricante: HAGER

Characteristic: b

Depth [mm]: 70

Number of modules: 3

Ver descripción completa

Precio:

45,14 €

gross / uds.

(IVA incluido 23%)

Accesible 24 uds.

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Miniature circuit breakers 0, 5 - 50 A. Type B Rated short-circuit breaking capacity 6000 A
• rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Datos técnicos

Characteristic

b
Number of modules

3
Rated voltage [V]

230
Rated current [A]

50
Height [mm]

83
Number of modules

3

Depth [mm]

70
Number of poles

3
Rated insulation voltage [V]

500
Width [mm]

52.5
Rated short-circuit breaking capacity [kA]

6
PKWIU

27.12.22.0

Otros datos técnicos

Built-in depth

70 mm
Number of poles (total)

3
Rated current

50 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Detalles del fabricante

Fabricante

Hager Electro S.A.S.
Dirección

FR 67215 Obernai 123 boulevard d’Europe Francja
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Pakiet	Paleta
Cantidad	4 uds.	48 uds.	1152 uds.
Peso (kg)	1,460	17,540	421,130
Ancho (m)	0,090	0,310	0,800
Longitud (m)	0,070	0,230	1,080
Profundidad (m)	0,220	0,360	1,200
