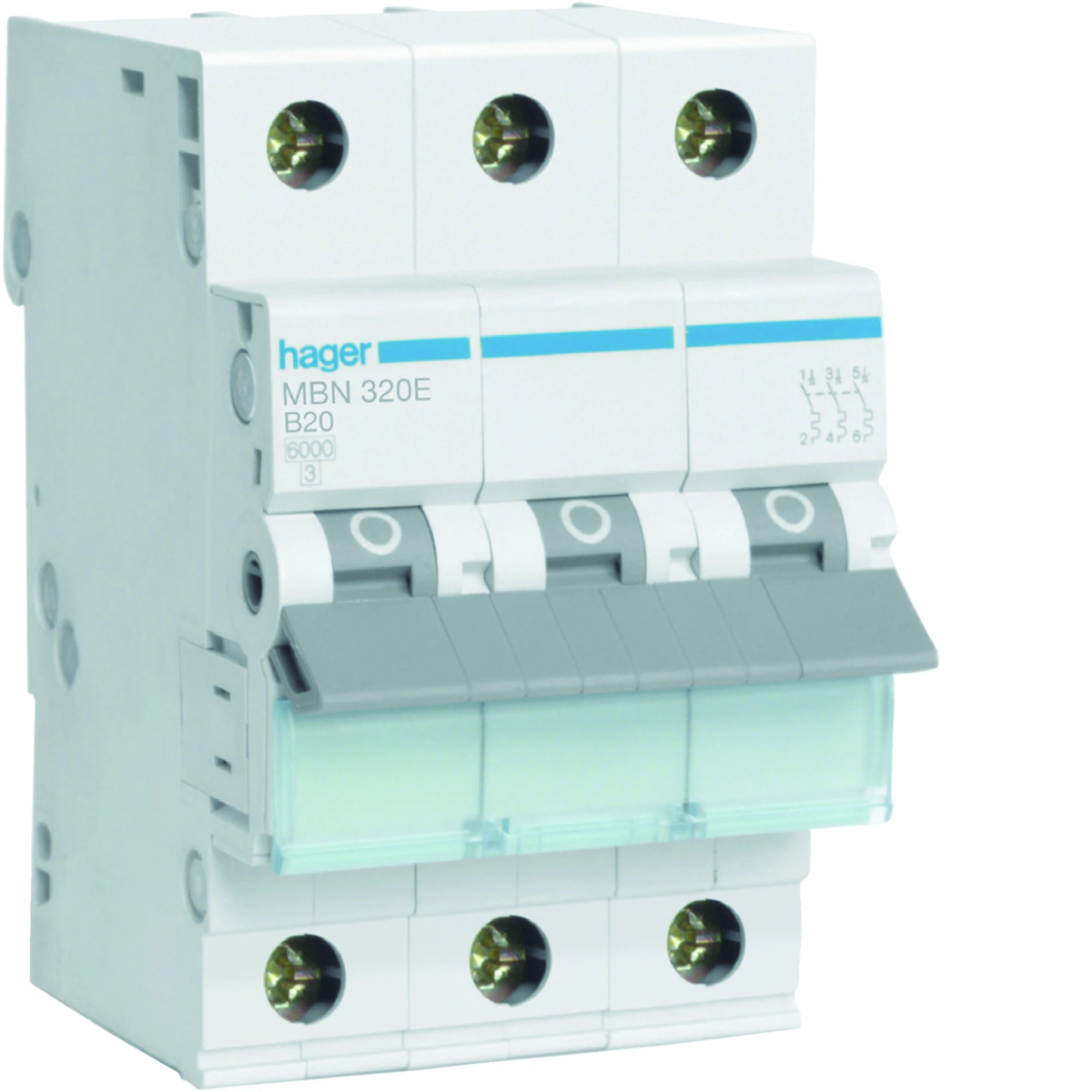

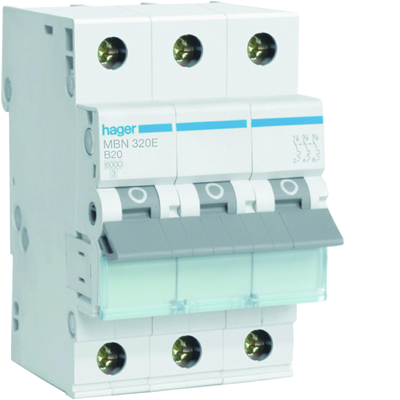

Miniature circuit breaker 6kA B 3-pole 20A MBN320E
Indeks lokalny:
ABB152HAGE
Nr katalogowy:
MBN320E
Kod EAN:
3250614313073
Cena:
81,55 zł
gross / szt.
(w tym VAT 23%)
Odbiór za 1h
Dostawa do 3h
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj
Zapytaj o produkt
Opis produktu
Miniature circuit breakers 0, 5 - 20 A. Type B Rated short-circuit breaking capacity 6000 A
• rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.
• rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.
Dane techniczne
-
Characteristicb
-
Number of modules3
-
Rated insulation voltage [V]500
-
Power dissipation [W]8.22
-
Height [mm]83
-
Number of modules3
-
Depth [mm]70
-
Number of poles3
-
Rated current [A]20
-
Width [mm]52.2
-
Rated short-circuit breaking capacity [kA]6
-
PKWIU27.12.22.0
Pozostałe dane techniczne
-
Built-in depth70 mm
-
Number of poles (total)3
-
Rated current20 A
-
Rated insulation voltage Ui500 V
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
-
Current limiting class3
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicB
-
Number of protected poles3
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorNo
-
Pollution degree2
-
Width in number of modular spacings3
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
Dane producenta
-
ProducentHager Electro S.A.S.
-
AdresFR 67215 Obernai 123 boulevard d’Europe Francja
Opakowania zbiorcze
| Rodzaj opakowania | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Ilość | 4 szt. | 48 szt. | 1152 szt. | 4 szt. | 48 szt. | 1152 szt. |
| Waga (kg) | 1,230 | 14,830 | 355,960 | 1,230 | 14,830 | 355,960 |
| Szerokość (m) | 0,090 | 0,310 | 0,800 | 0,090 | 0,310 | 0,800 |
| Długość (m) | 0,070 | 0,220 | 1,060 | 0,070 | 0,220 | 1,060 |
| Głębokość (m) | 0,220 | 0,360 | 1,200 | 0,220 | 0,360 | 1,200 |
