HAGER

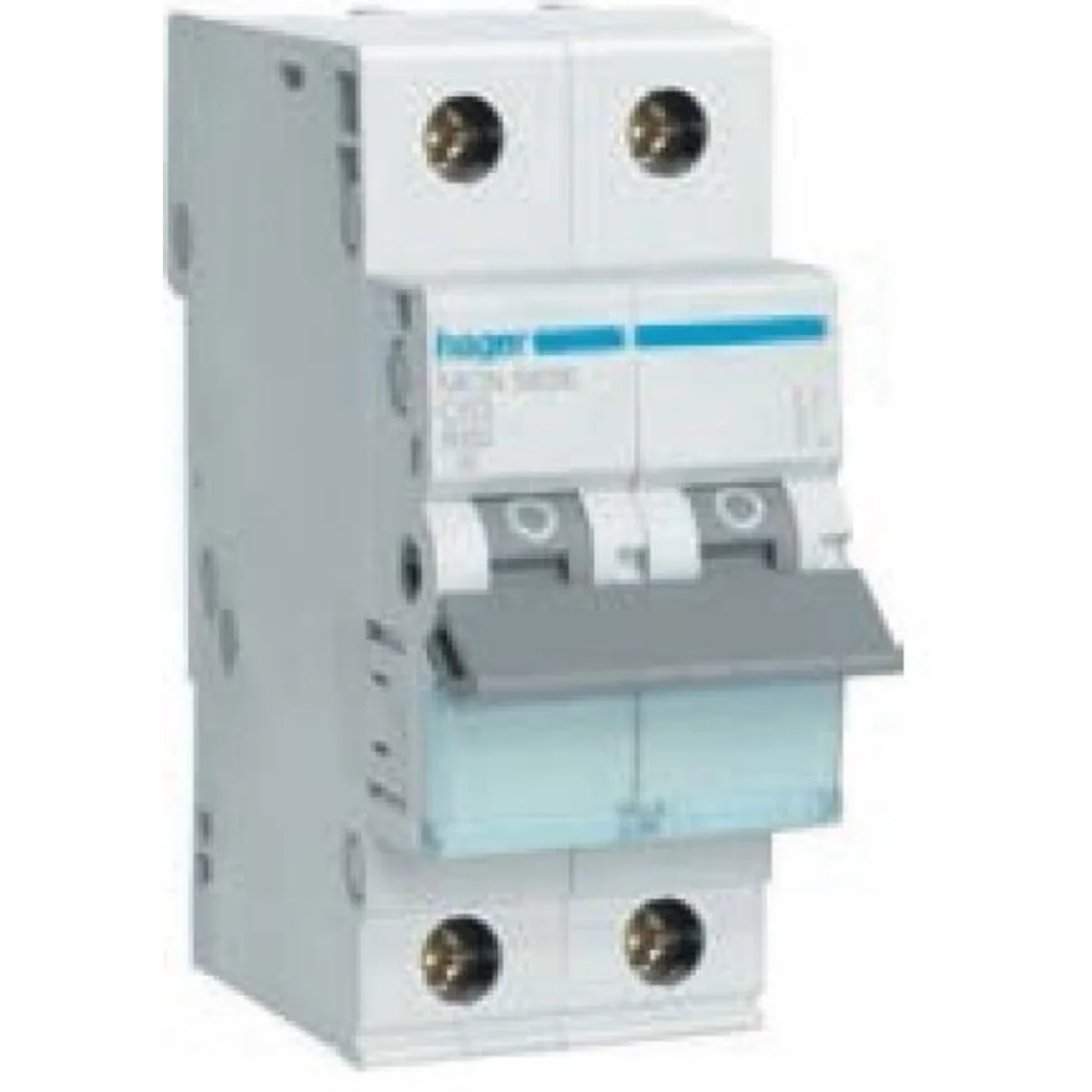

Miniature circuit breaker 6kA B 1+N 6A MBN506E

local index:
ABB001HAGE
Catalog No:
MBN506E
EAN code:
3250614313332
Price:
20,18 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Miniature circuit breakers 0.5 - 63 A. Type B and C. Rated short-circuit breaking capacity 6000 A. Rated short-circuit breaking capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessoriesó
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, strand up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

  • Characteristic
    b
  • Number of modules
    2
  • Rated voltage [V]
    230
  • Rated current [A]
    6
  • Width [mm]
    35
  • Number of modules
    2
  • Depth [mm]
    70
  • Number of poles
    2
  • Rated insulation voltage [V]
    500
  • Power dissipation [W]
    2.5
  • Height [mm]
    83

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    2
  • Rated current
    6 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    10 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    yes
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
